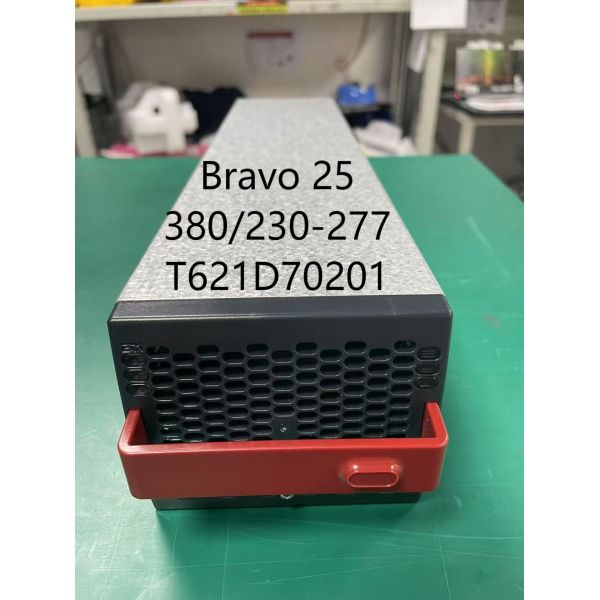

CET Inverter Module Bravo 25 - 380/230-277 380Vdc Input 3kva/2.5kw P/N: T621D70201
CET Inverter Module Bravo 25 - 380/230-277 380Vdc Input 3kva/2.5kw P/N: T621D70201
Specifications
Brand Name :
CET
Model Number :
Bravo 25 - 380/230-277
Certification :
CE
Place of Origin :
CN
MOQ :
1
Price :
1USD/SET
Payment Terms :
T/T
Supply Ability :
500 sets / month
Delivery Time :
2-4 weeks
Packaging Details :
Pallet
Brand :
CET
Product Name :
Modular Inverter
Part No. :
T621D70201
AC intput data :
230 Vac / 11.8 A, 240 Vac / 11.0 A and 277 Vac / 9.5 A
AC intput voltage range :
150 - 293 Vac
DC input data :
336 Vdc (200 - 430 Vdc)1 derating starts @259 Vdc
AC output data :
230 Vac / 13 A, 240 Vac / 12.5 A and 277 Vac / 10.8 A (200 - 277 Vac)
Efficiency AC to AC (EPC) / DC to AC :
> 96% / > 94.5%
Dimension :
2U x 103 mm x 435 mm
Description

CET Inverter Module Bravo 25 - 380/230-277 380Vdc Input 3kva/2.5kw P/N: T621D70201

CET Inverter Module Bravo 25 - 380/230-277 380Vdc Input 3kva/2.5kw P/N: T621D70201

Description:

Bravo 25 - 380/230-277 is a compact and scalable modular inverter providing a pure sine wave at AC output. It provides an excellent AC backup

solution in conjunction with a DC Power system. It uses cutting edge technology to provide the most energy-efficient in a compact size.

Applications

All business critical applications and all types of AC loads. The design is modular and scalable with hot- swappable inverter modules which ensures

low Mean Time to Repair (MTTR), reduction in service costs and meets the changing needs for future expansion.

Main Features

• Extra AC input for increased efficiency on double conversion

• Wide AC input range up to 293 Vac L-N

• Up to 12 kVA in 2RU - 19 inches

• Up to 1.35 MVA by using extra syncrhonization device

• 1P or 3P infrastructure

• Compatible with Inview S, X and GW
