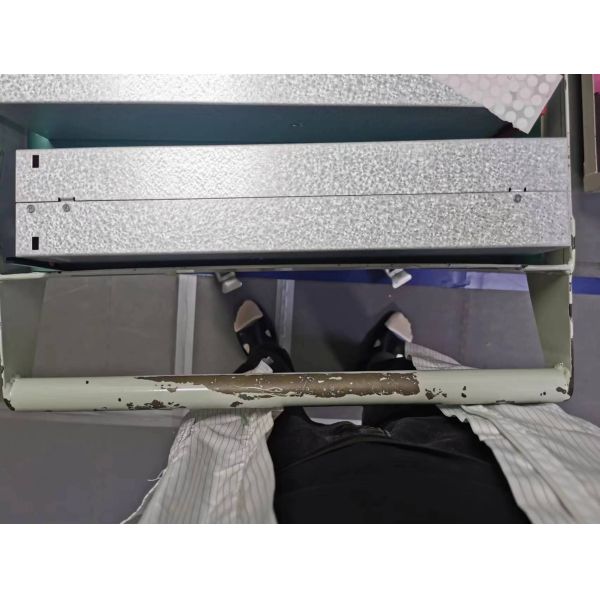

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000
Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000
Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000
Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000
Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000
Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000
Specifications
Brand Name :
CET
Model Number :
Sierra 25 - 110/230-277
Certification :
CE UL
Place of Origin :
CN
MOQ :
1
Price :
1 USD
Supply Ability :
500 sets / month
Delivery Time :
6-8 weeks
Packaging Details :

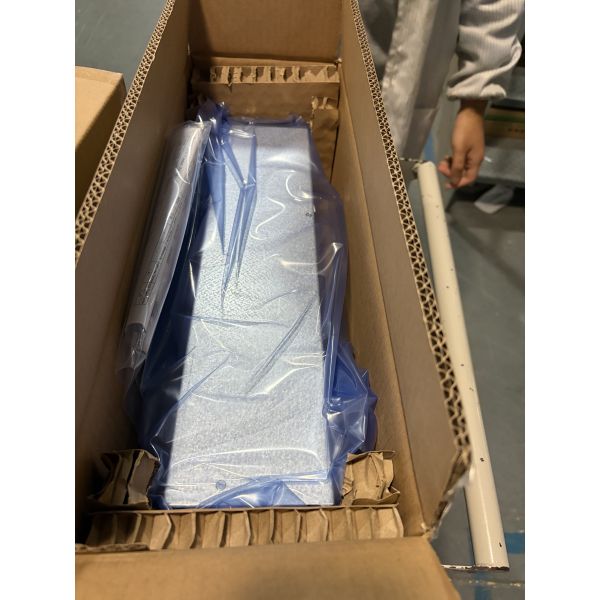

Wooden cartons
Brand :
CE+T
Product Name :
Converters /UPS
Part No. :
T721D50201
AC output voltgae :
110Vdc
AC Input Data :
230 Vac / 11.8 A, 240 Vac / 11.0 A and 277 Vac / 9.5 A
DC Input Data :
110 Vdc (90 - 150 Vdc)
Efficiency: DC/AC :
> 93.7%
Efficiency: AC/AC :
> 96% / > 93.7% / > 93.7%
G.W :
6Kg
Description

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000

CE+T Sierra 25 Bidirectional Industrial Power Converter 2.7kW–2MW Sierra 25 - 110/230-277 T724D50010

Description:

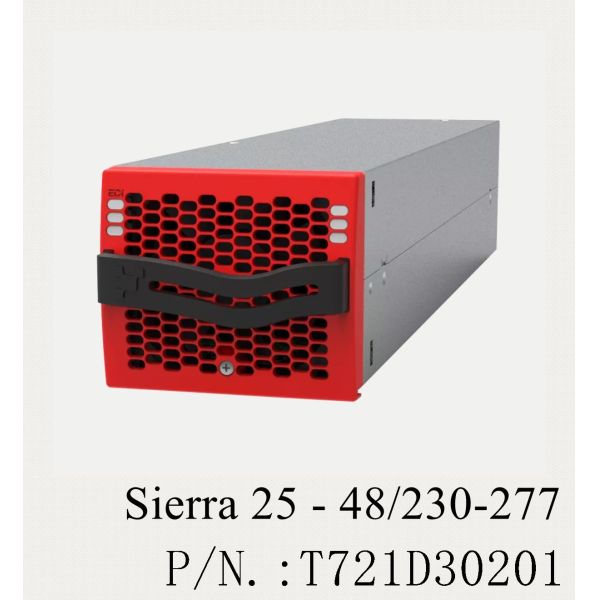

Sierra 25 – 48/230-277 can be used as a UPS to secure AC & DC loads and charge the batteries.

The 3 all bidirectional ports allow for multiple innovative applications such as grid reinjection, peak shavings,

phase balancing or energy sharing through DC distribution, among many others.

By using several modules, we can offer solutions for three-phase (3x400Vac + N) infrastructures.

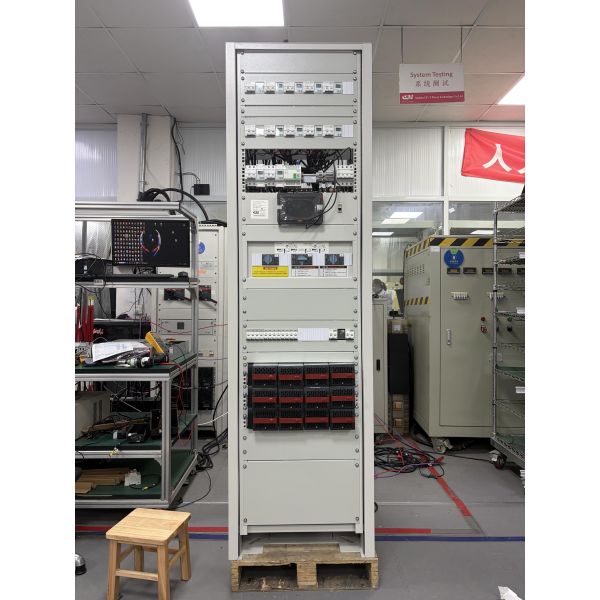

The module can be integrated in small or large cabinets to reach up to 2 MW.

With our new Inview S monitoring, you can benefit from a unique experience.

The total output power per module is 2.7 kW, limited to 2.4 kW for each AC or DC port.

Key Features:

  • Secure AC & DC loads;
  • Many innovative applications;
  • Compatible with Inview S;
  • Modularity: from 2.7 kW to 2 MW;
  • From small to large systems.

Versions:

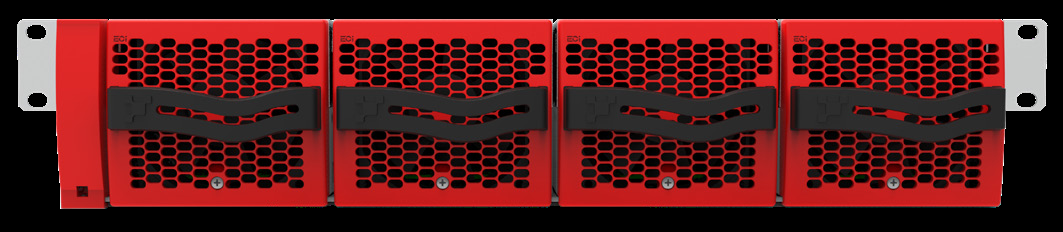

4 modules can be integrated into 2U high shelves to provide up to 10.8 kW (AC + DC)
Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000

Parameters:

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000
