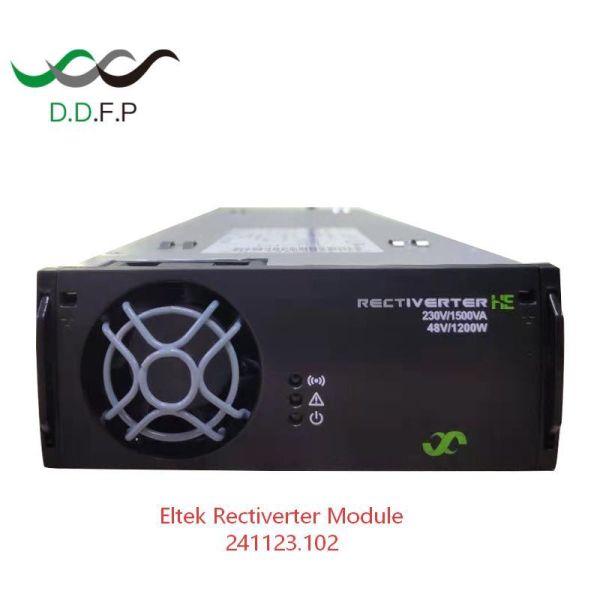

Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Specifications
Brand Name :
Eltek
Model Number :
241123.100
Certification :
CE,UL
Place of Origin :
CN
MOQ :
1 piece
Price :
499 USD/pc
Payment Terms :
L/C,T/T
Supply Ability :
1000 pieces / month
Delivery Time :
6-8 weeks
Packaging Details :
cartons
Brand :
Eltek
Part Number :
241123.100
Product Name :
Inverter Module
Model Name :
Flatpack2 230/1500 48/1200
AC input :
185 - 275 VAC
DC input :
40 - 58 VDC
AC output :
200 - 240 VAC
DC output power :
1200 W
DC output cu6,3 ADCrrent :
25 ADC
Package :
cartons
Description
Eltek AC DC Inverter Rectiverter 48V Flatpack2 230/1500 48/0 (P/N: 241123.102)
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Product Overview

Built on HE technology from the Flatpack2 HE rectifier family, the Rectiverter 230V/1500VA 48V/1200W provides backed up power for 230 Vac and 48 Vdc loads with minimum losses and footprint.

Rectifier and Inverter in One Unit

The Rectiverter is a 3-port device capable of charging the 48V battery while simultaneously providing power for AC and DC loads. During mains outage, the Rectiverter feeds AC loads using energy stored in the battery.

Key Features
  • Unique 3-in-1 operation
  • Inverter functionality
  • Rectifier functionality
  • Power source transfer
  • Modular design
  • High efficiency
  • Global compliance
  • Patented technology
  • Hot pluggable
  • Voltage keying
Technical Specifications
Parameter Specification
AC Output Voltage 230 VAC (200-240 VAC adjustable)
AC Output Power 1200 W (1500 VA) continuous / 2000 VA overload (<15s)
DC Output Voltage 53.5 VDC (43-58 VDC adjustable)
DC Output Power 1200 W maximum @ nominal input
AC Input Voltage 185-275 VAC / 170 VAC LV disconnect
Efficiency >96% (mains mode), >94% (inverter mode)
Operating Temperature -40 to +75°C (-40 to +167°F)
Dimensions 109 x 41.5 x 327mm (4.25 x 1.69 x 13")
Weight 1.95 kg (4.3 lbs)
MTBF 260,000 hours @ 25°C ambient
Product Images
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Complete Solutions

We provide complete solutions including site survey, professional planning according to customer requirements, technical support, and maintenance service for telecommunication companies worldwide. Our competent team and network of trusted partners ensure reliable service delivery.

Frequently Asked Questions
How do you control the quality?
All products undergo simulated usage scenarios, load testing, full load testing, and current sharing tests before shipment to ensure product quality.
What is your minimum order quantity?
There is no minimum order quantity - single units can be ordered. Pricing and scheduling may vary based on quantity.
Can you introduce your company?
We will provide our company introduction document for a comprehensive overview of our company information and capabilities.
What are the advantages of your company?
Adequate inventory, reliable supply chain for ongoing requirements, and flexible solutions tailored to different customer needs.
Can I request samples? What about pricing?
Samples are available at sample pricing, with freight costs borne by the customer.
How do you handle quality issues?
With nearly 10 years in the industry, we maintain our reputation by thoroughly analyzing issues. If confirmed as quality problems, we resolve them according to contract agreements with full support from our service team.
What about the product quality?
100% original with new packaging. Each item is tested before shipment to ensure quality standards.
How many months for guarantee?
1-year quality guarantee provided.
How to deal with inferior-quality goods?
We cover return shipping costs for any defective products within the guarantee period.
