Specifications
Brand Name :
Eltek
Model Number :
241123.100
Certification :
CE,UL
Place of Origin :
CN
MOQ :
1 piece
Price :
499 USD/pc
Payment Terms :
L/C,T/T
Supply Ability :
1000 pieces / month
Delivery Time :
6-8 weeks
Packaging Details :
cartons
Brand :
Eltek
Part Number :
241123.100
Product Name :
Inverter Module
Model Name :
Flatpack2 115V/750VA 48V/600W
AC input :
95 - 140 VAC
DC input :
40 - 58 VDC
AC output :
100 - 127 VAC
DC output :
43 - 58 VDC
DC output current :
12,5 ADC
Package :
cartons
Description
Eltek DC/AC Inverters Rectifiers in One Box - Rectiverter Series
Part Numbers: 241123.100, 241123.101, 241123.102
Product Overview
Eltek DC/AC Inverters Rectifiers in one box Rectiverter 115V/750VA 48V/600W (Part No.: 241123.100)
Eltek DC AC Inverter Rectiverter Module with 115V/750VA 48V/600W High Efficiency Power Conversion
Built on HE technology from the Flatpack2 HE rectifier family, the Rectiverter 115V/750VA 48V/600W provides backed up power for 115 Vac and 48 Vdc loads with minimum losses and footprint.
Rectifier and Inverter in One Compact Unit
The Rectiverter is a 3-port device capable of charging the 48V battery while simultaneously providing power for AC and DC loads. During mains outage, the Rectiverter feeds AC loads using energy stored in the battery.
Key Features
  • Unique 3-in-1 operation
  • Inverter functionality
  • Rectifier functionality
  • Power source transfer
  • Modular design
  • High efficiency operation
  • Global compliance certifications
  • Patented technology
  • Hot pluggable capability
  • Voltage keying system
Technical Specifications
Parameter 230/1500 Model 115/750 Model
Part Numbers 241123.100, 241123.101, 241123.102 241123.100L, 241123.101L, 241123.102L
AC Output Voltage 230 VAC (200-240 VAC adjustable) 115 VAC (100-127 VAC adjustable)
AC Output Power 1200W (1500VA) continuous / 2000VA overload 600W (750VA) continuous / 1000VA overload
DC Output Voltage 53.5 VDC (43-58 VDC adjustable)
DC Output Power 1200W maximum 600W maximum
Efficiency >96% (mains mode), >94% (inverter mode) >92% (mains mode), >91% (inverter mode)
Operating Temperature -40 to +75°C (-40 to +167°F)
Dimensions 109 x 41.5 x 327mm (4.25 x 1.69 x 13")
Weight 1.95 kg (4.3 lbs)

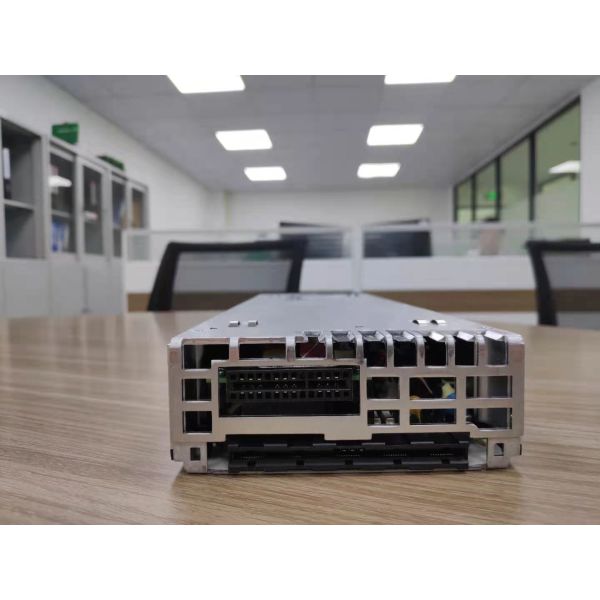

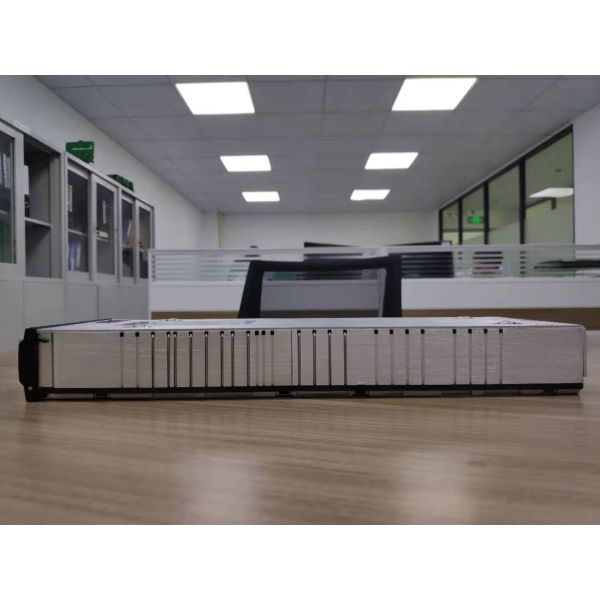

Product Images
