Specifications
Brand Name :
CE+T
Model Number :
T621D30201
Certification :
CE,ROHS
Place of Origin :
CN
MOQ :
1 Pieces
Price :
USD 1
Payment Terms :
L/C,T/T
Supply Ability :
3000 sets per month
Delivery Time :
4-6 weeks
Packaging Details :
Wooden package
Brand :
CE+T
Model Name :
Bravo 2548/230-277
Part No. :
T621D30201
AC input :
120Vac
DC input :
125Vdc
AC output :
120Vac
Power capacity :
3KVA
Max :
Depends on
Warranty :
24 months
Description

CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201

CE+T Inverter Module 230VAC 48VDC inverter 3KVA 2.4kw Bravo 2548/230-277

Bravo 25 - 48/230-277 is a compact and scalable modular inverter providing a pure sine wave at AC output. It provides an excellent AC backup

solution in conjunction with a DC Power system. It uses cutting edge technology to provide the most energy-efficient in a compact size.

The ECI technology eliminates all single points of failure with full scalability; up to 32 modules in parallel and high efficiency of up to 96% in

AC to AC conversion, and above 93.7% in DC/AC conversion, hence reducing operating costs. We can build the systems up to 2.7 MVA.

Applications

All business critical applications and all types of AC loads. The design is modular and scalable with hot- swappable inverter modules which ensures

low Mean Time to Repair (MTTR), reduction in service costs and meets the changing needs for future expansion.

Main Features

• Extra AC input for increased efficiency on double conversion

• Wide AC input range up to 293 Vac L-N

• Up to 12 kVA in 2RU - 19 inches

• Up to 2.7 MVA by using extra syncrhonization device

• 1P or 3P infrastructure

• Compatible with Inview S, X and GW

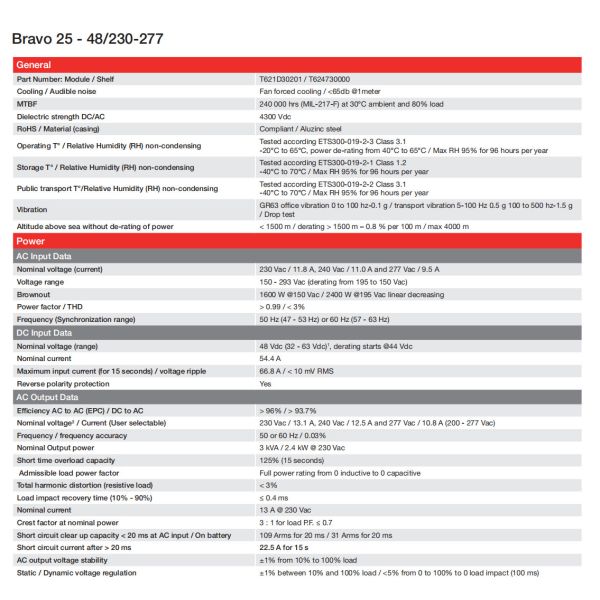

Specification

Part Number: Module / Shelf T621D30201 / T624730000
Cooling / Audible noise Fan forced cooling / <65db @1meter
Dielectric strength DC/AC 4300 Vdc
Operating T° / Relative Humidity (RH) non-condensing

Tested according ETS300-019-2-3 Class 3.1

-20°C to 65°C, power de-rating from 40°C to 65°C / Max RH 95% for 96 hours per year
Storage T° / Relative Humidity (RH) non-condensing

Tested according ETS300-019-2-1 Class 1.2

-40°C to 70°C / Max RH 95% for 96 hours per year
AC Input Data
Nominal voltage (current) 230 Vac / 11.8 A, 240 Vac / 11.0 A and 277 Vac / 9.5 A
Brownout 1600 W @150 Vac / 2400 W @195 Vac linear decreasing
Power factor / THD > 0.99 / < 3%
Frequency (Synchronization range) 50 Hz (47 - 53 Hz) or 60 Hz (57 - 63 Hz)
DC Input Data
Nominal voltage (range) 48 Vdc (32 - 63 Vdc)1 , derating starts @44 Vdc
Nominal current 54.4 A
Maximum input current (for 15 seconds) / voltage ripple 66.8 A / < 10 mV RMS
AC Output Data
Efficiency AC to AC (EPC) / DC to AC > 96% / > 93.7%
Nominal voltage2 / Current (User selectable) 230 Vac / 13.1 A, 240 Vac / 12.5 A and 277 Vac / 10.8 A (200 - 277 Vac)
Frequency / frequency accuracy 50 or 60 Hz / 0.03%
Nominal Output power 3 kVA / 2.4 kW @ 230 Vac
Nominal current 13 A @ 230 Vac

CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201

CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201

CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201

CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201

CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201

CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201

Modular Inverter System Avaliable !

CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201

CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201

CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201

CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201

CE+T Inverter Module 230VAC 48VDC 3KVA 2.4kw Bravo 2548/230-277 PN T621D30201
