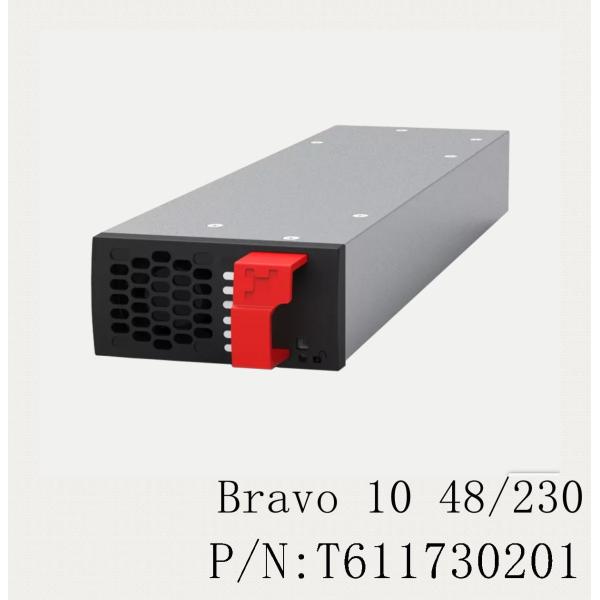

Compact 1.25 kVA Modular Inverter 48V to 230V DC AC Inverter Bravo 10-48/230
Compact 1.25 kVA Modular Inverter 48V to 230V DC AC Inverter Bravo 10-48/230
Compact 1.25 kVA Modular Inverter 48V to 230V DC AC Inverter Bravo 10-48/230
Compact 1.25 kVA Modular Inverter 48V to 230V DC AC Inverter Bravo 10-48/230
Compact 1.25 kVA Modular Inverter 48V to 230V DC AC Inverter Bravo 10-48/230
Compact 1.25 kVA Modular Inverter 48V to 230V DC AC Inverter Bravo 10-48/230
Specifications
DC voltage (input range) :
48 Vdc (40-60)
Efficiency: AC/AC :
96%
AC voltage (input range) :
230 Vac (150-265)
Dimesnsion :
1U x 87 mm x 346 mm
Model Number :
Bravo 10-48/230
Brand Name :
CET
Certification :
CE
Place of Origin :
CN
MOQ :
10
Price :
1999 USD/SET
Supply Ability :
500 sets / month
Delivery Time :
2-4 weeks
Packaging Details :
Wooden cartons
Output power :
1.25 kVA / 1 kW
Efficiency: DC/AC :
92.5%
Product Name :
Modular Inverter
Part No. :
T611730201
Brand :
CET
Description
Bravo 10– 48/230 1.25 Kva /1KW Inverter 48v To 230v 1000w For Modular Inverter System P/N T611730201
Compact 1.25 kVA Modular Inverter 48V to 230V DC AC Inverter Bravo 10-48/230
CET inverter Bravo 10 - 48/230 1.25kva Inverter for Modular Inverter System (P/N:T611730201)
Product Overview

The most compact inverter with extra AC input to efficiently secure critical loads from 1.25 to 40 kVA.

Bravo 10 - 48/230 is a compact modular inverter that converts a 48 Vdc power source into 230 Vac. By using at least three modules, we can offer solutions for three-phase infrastructures (3x400Vac + N). An additional AC input is used under normal conditions to achieve an overall conversion efficiency of 96%. In the event of a grid failure, it automatically switches to the DC to secure the loads. The modularity is maximum thanks to increments of 1.25 kVA / 1 kW only! Different configurations are possible such as monitoring integrated in the shelf or not, and for single-phase or three-phase systems.

Key Features
  • Extra AC input for increased efficiency
  • All-in-one solution with monitoring included
  • From 1.25 to 40 kVA
  • 1P or 3P configuration
  • Compact design
Technical Parameters
In: DC voltage (input range) 48 Vdc (40-60)
In/Out: AC voltage (input range) 230 Vac (150-265)
Output power 1.25 kVA / 1 kW
Efficiency: DC/AC 92.5%
Efficiency: AC/AC 96%
Temperature -20°C to 65°C
Dimension 1U x 87 mm x 346 mm
Part number T611730201
