12L Sprayable Tungsten Carbide Rotary Vane Feeder Airlock Industrial Large Caliber
12L Sprayable Tungsten Carbide Rotary Vane Feeder Airlock Industrial Large Caliber
12L Sprayable Tungsten Carbide Rotary Vane Feeder Airlock Industrial Large Caliber
12L Sprayable Tungsten Carbide Rotary Vane Feeder Airlock Industrial Large Caliber
12L Sprayable Tungsten Carbide Rotary Vane Feeder Airlock Industrial Large Caliber
12L Sprayable Tungsten Carbide Rotary Vane Feeder Airlock Industrial Large Caliber
12L Sprayable Tungsten Carbide Rotary Vane Feeder Airlock Industrial Large Caliber
12L Sprayable Tungsten Carbide Rotary Vane Feeder Airlock Industrial Large Caliber
Specifications
Brand Name :
TECLION
Model Number :
RDL300R
Certification :
CC CE
Place of Origin :
China,Anhui
MOQ :
1
Price :
Get the Best Price
Payment Terms :
T/T
Supply Ability :
Usually every one sets for 35- 40 days
Delivery Time :
35 working days
Packaging Details :
Professional export fumigation free wooden crate
Material :
stainless steel
Volume :
12L
Outer diameter :
40cm
height :
45cm
length :
100cm
Motor brand :
customizable
Gearbox brand :
customizable
Aplication :
Lithium ion chemical plastics minerals
Description

Large caliber stainless steel sprayable tungsten carbide Rotary Feeder

Product Description:

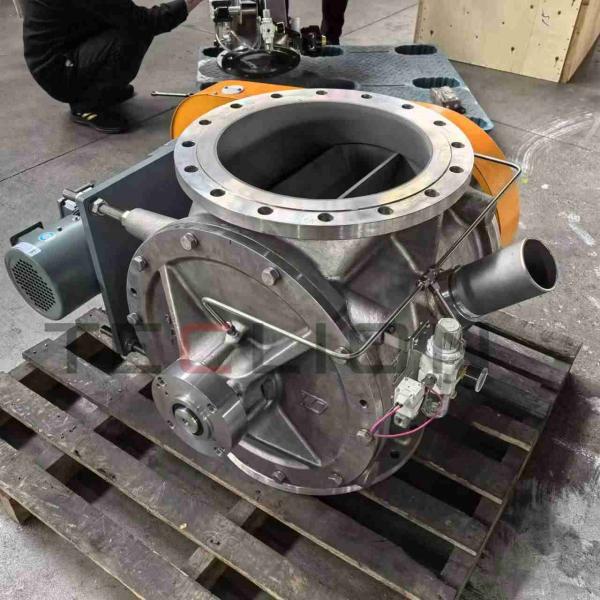

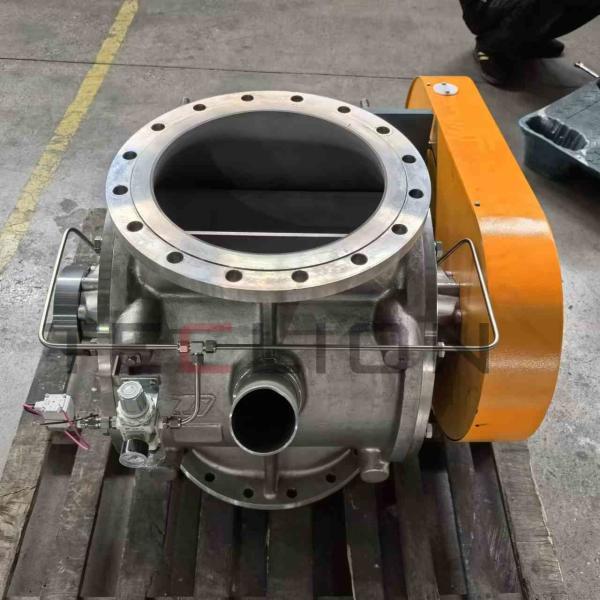

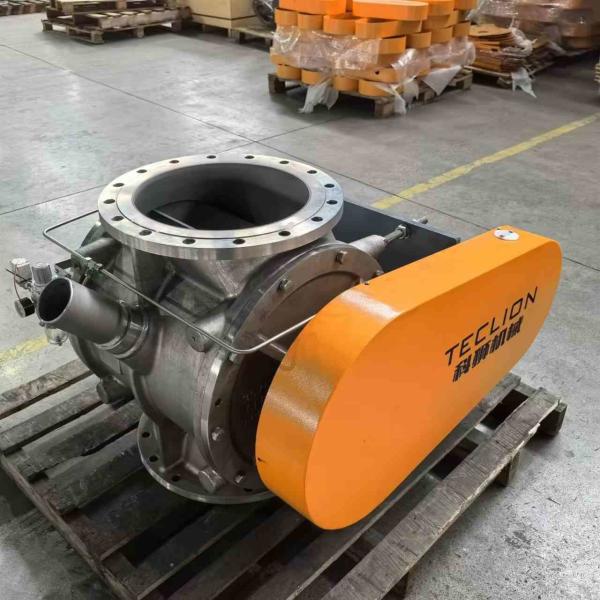

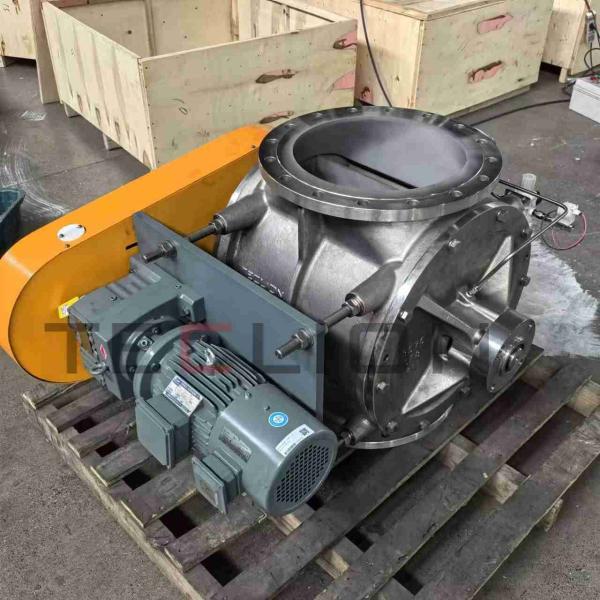

Powder medium unloading economical rotary valve, with high cost-effectiveness, can be matched with various forms of rotors to cope with different characteristics of media and working conditions. The inner cavity of the rotary valve in the picture is sprayed with tungsten carbide to improve wear resistance, corrosion resistance, and extend the service life of the equipment.

Product Features:

1)High fill rate

2)Optional rotor protection system

3)Can be equipped with an exhaust hopper

4)Balance port can be opened on the side of the shell

5)Suitable for explosion-proof areas

6)Body material: stainless steel, carbon steel

Product Parameters:

No Item Note
1 Valve type Rotary Feeder
2 Size DN300
3 Applicable pressure (Mpa) 1.0
4 Allow temperature usage ℃ ≤250℃
5 form Pneumatic conveying dense phase conveying
6 volume 12L
7 Configuration Can be selected according to working conditions
8 Motor and Reducer Opional

12L Sprayable Tungsten Carbide Rotary Vane Feeder Airlock Industrial Large Caliber12L Sprayable Tungsten Carbide Rotary Vane Feeder Airlock Industrial Large Caliber12L Sprayable Tungsten Carbide Rotary Vane Feeder Airlock Industrial Large Caliber12L Sprayable Tungsten Carbide Rotary Vane Feeder Airlock Industrial Large Caliber12L Sprayable Tungsten Carbide Rotary Vane Feeder Airlock Industrial Large Caliber
