Conveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding Valve
Conveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding Valve
Conveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding Valve
Conveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding Valve
Conveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding Valve
Conveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding Valve
Conveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding Valve
Conveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding Valve
Conveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding Valve
Conveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding Valve
Specifications
Brand Name :
TECLION
Model Number :
RDP80
Certification :
CE
Place of Origin :
China Anhui
MOQ :
1
Price :
Get the Best Price
Payment Terms :
T/T
Supply Ability :
Usually every one sets for 35 days
Delivery Time :
30 working days
Packaging Details :
Professional export fumigation free wooden crate
Material :
stainless steel
Valve Height :
203 mm
Size :
DN80
Rotor volume :
0.25 liter
Bearing :
external
Flange :
Clamp and Optional
Temperature :
below 120℃
Pressure :
1 barg
Description

Conveyor hygiene grade powder medium rotary feeding valve

Product Description:

The valve body of this sanitary rotary feeder is made of a whole piece of stainless steel material. The outer surface and inner cavity of the valve are mirror polished to ensure smooth material transportation. At the same time, the material contact area is degreased to maintain the cleanliness of the valve body and reduce pollution to the conveying medium. The rotary valve can also be connected with simple and easy to remove clamps, and the compact structural design is convenient for installation. The inner cavity of the rotary valve can be sprayed with various options such as ceramic, tungsten carbide, etc. according to customer requirements or working conditions.

Product Features:

1) Gravity feeding work condition

2) Suitable temperature less than 120 ° C

3) Measurement unloading

4) Mirror polishing of inner and outer surfaces

5) Internal and external polishing 400#

6) Flange clamp connection

7) Smooth import and export without any dead corners

8) Can provide CE,EAC and ATEX certificate

Product Parameters:

No Item Note
1 Valve type Rotary valve
2 Pressure 1.0 barg
3 Height 203 millimeter
4 Temperature No more than 120 degrees
5 Flange PN 6 or Clamp
6 Gear box Helical gear, bevel gear, worm gear type

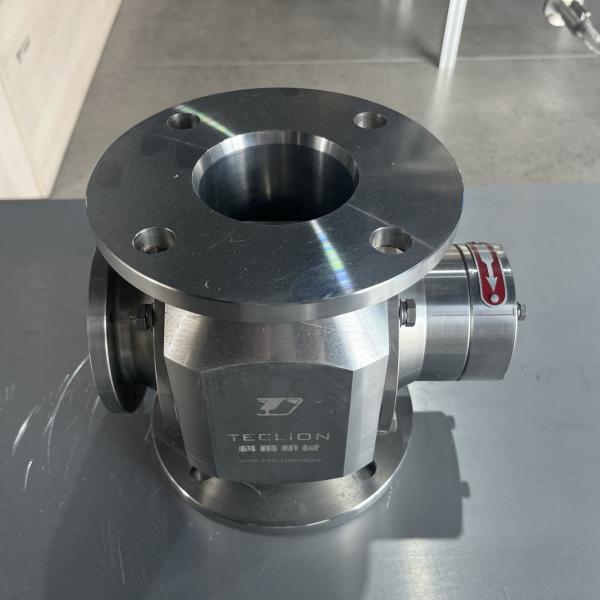

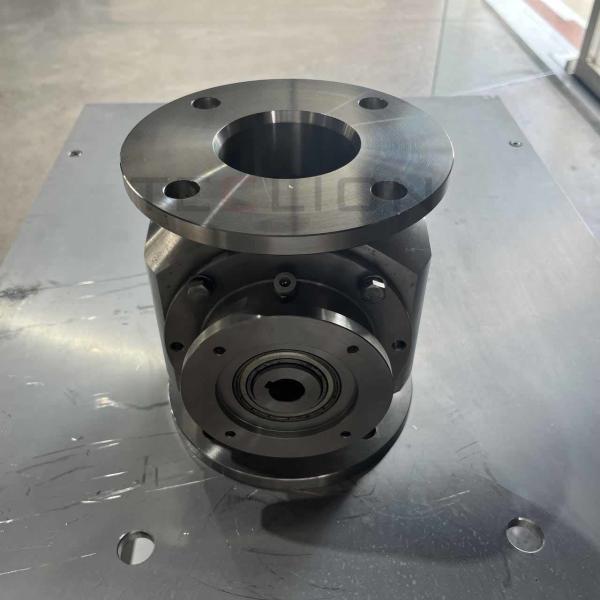

Product Pictures:

Conveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding Valve

Conveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding ValveConveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding ValveConveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding ValveConveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding Valve
