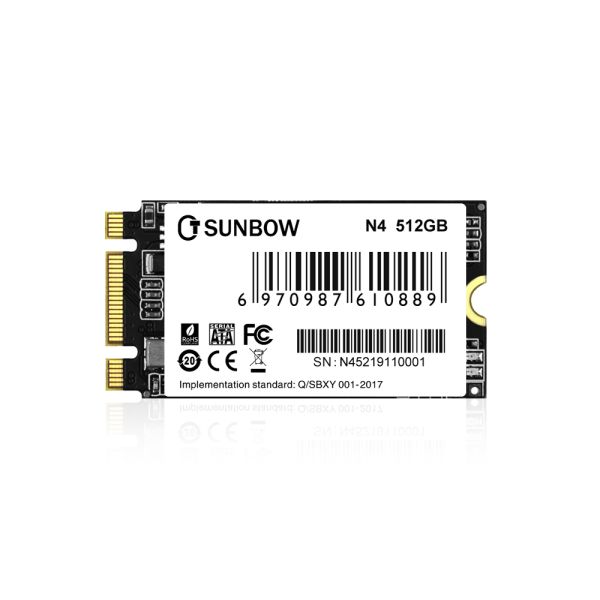

TCSUNBOW M.2 NGFF SSD TCN4
TCSUNBOW M.2 NGFF SSD TCN4
TCSUNBOW M.2 NGFF SSD TCN4
TCSUNBOW M.2 NGFF SSD TCN4
TCSUNBOW M.2 NGFF SSD TCN4
TCSUNBOW M.2 NGFF SSD TCN4
TCSUNBOW M.2 NGFF SSD TCN4
TCSUNBOW M.2 NGFF SSD TCN4
TCSUNBOW M.2 NGFF SSD TCN4
TCSUNBOW M.2 NGFF SSD TCN4
TCSUNBOW M.2 NGFF SSD TCN4
TCSUNBOW M.2 NGFF SSD TCN4
Specifications
Device Type :
Solid State Drive (SSD)
Certification :
RoHS,CE,FCC,ISO
Interface :
M.2 NGFF SSD
Model Number :
TCN4
Compatible Systems :
Mac, Windows, Unix, Linux, and more
Payment Terms :
L/C,T/T,D/P
Packaging Details :
OEM/ODM
Storage Temperature Range :
-40-75℃
MOQ :
1
Compatible Devices :
PCs, laptops, IPCs, embedded computers, thin clients, Mini-PCs, POS machines, All-in-one PCs, and other compatible devices
Delivery Time :
1-7 work days
Installation Type :
Internal
Brand Name :
TCSUNBOW/TCS
Operating Temperature Range :
0-70℃
Place of Origin :
China
Description

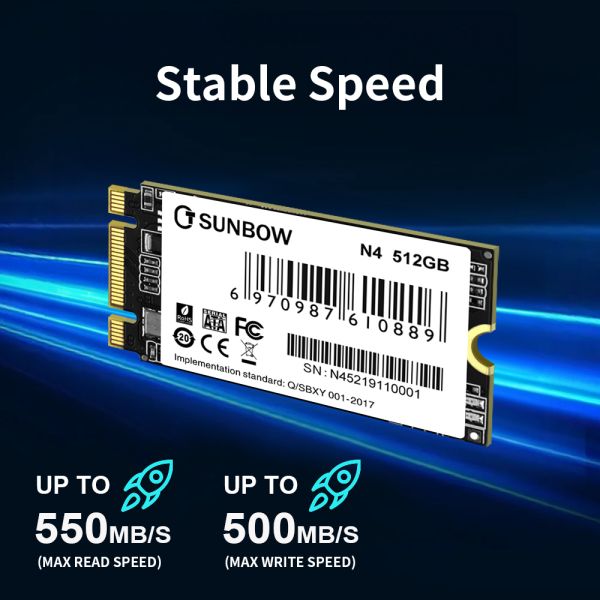

  • Sequential read speeds of up to 550MB/s provide responsive performance for system startup, application loading, file access, and everyday computing.

  • With sequential write speeds of up to 500MB/s, the TCN4 handles routine file transfers, software installation, and other common storage tasks efficiently.

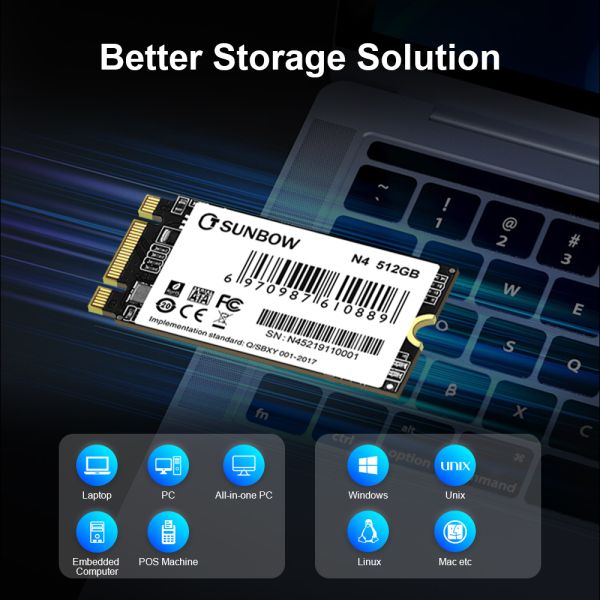

  • Its 2242 size makes the TCN4 suitable for compatible laptops, Mini PCs, thin clients, embedded computers, and other space-conscious systems.

  • With options from 32GB to 2TB, the TCN4 can be configured for different storage requirements, from basic system storage to larger applications and user data.

  • The TCN4 has no spinning platters or mechanical components, reducing the risk of mechanical failure compared to a traditional HDD.
Model Name TCN4-32GB TCN4-64GB TCN4-128GB TCN4-256GB TCN4-512GB TCN4-1TB TCN4-2TB
Capacity 32GB 64GB 128GB 256GB 512GB 1TB 2TB
EAN 6935515101505 6935515101512 6935515101529 6935515101536 6935515101543 6935515101550 6935515101567
Min Sequential Read/Write(MB/s) 248MB/s/166MB/s 450MB/s/290MB/s 500MB/s/360MB/s 500MB/s/400MB/s 500MB/s/400MB/s 500MB/s/420MB/s 510MB/s/450MB/s
Max Sequential Read/Write(MB/s) 248MB/s/166MB/s 450MB/s/290MB/s 500MB/s/400MB/s 500MB/s/450MB/s 520MB/s/500MB/s 550MB/s500MB/s 550MB/s/500MB/s
Product Series NGFF(M.2) 22x42 Series SSD
Interface Type M.2 SATA(6.0 Gb/s)
Origin CN (Origin)
Brand TCSUNBOW
Transport Protocol AHCI
Net Weight 4g
Gross Weight 25/19g
RGB No
Temperature Alert No
OEM/ODM Yes
Cache None
4KB Random Wirte 74714
4KB Random Read 50206
Internal/External Internal
Operating Voltage 3.3V
Operating Temperature 0-70℃
Storage Temperature -40~85℃
Warranty 3 Years
Nand Flash Type TLC/QLC
MTBF 1000000h

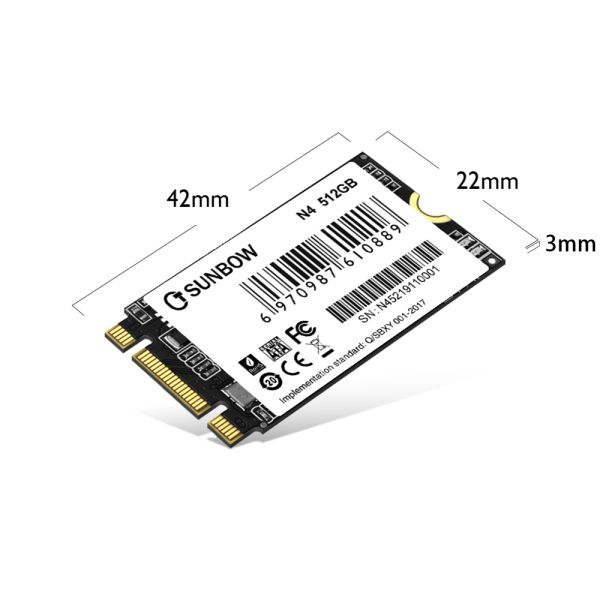

Item Demension 22*42*3mm

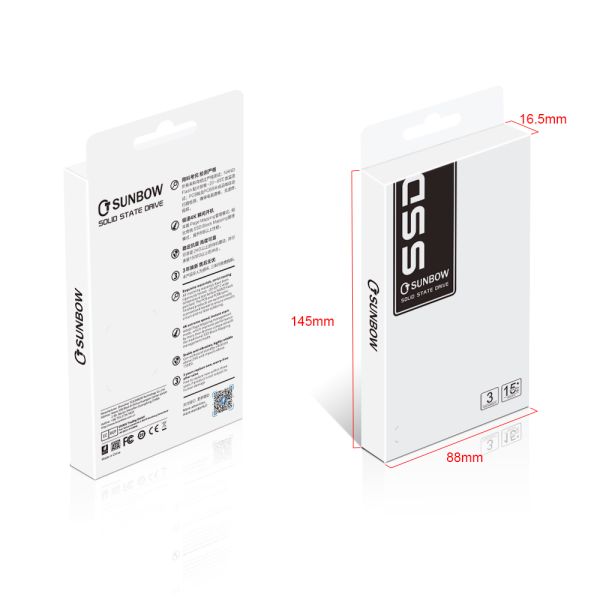

Box Packing Size 145*88*16.5MM or 100*60*15MM
Certificate CE,FCC,ROHS,KC
Application PC/NB/Server/All in one PC etc
Controller SMI/Yeestor/Realtek/Maxio etc
Flash Brand Intel/Micron/SAMSUNG/SK Hynix/SanDisk/Kioxia/YMTC
Note: Speed measurement is for reference only (Speed measurement is slightly different for different computer configurations)
