Specifications
Certification :
RoHS,CE,FCC,ISO
Interface :
NVMe (PCIE Gen4)
Model Number :
G43
Device Type :
Solid State Drive (SSD)
MOQ :
1
Compatible Devices :

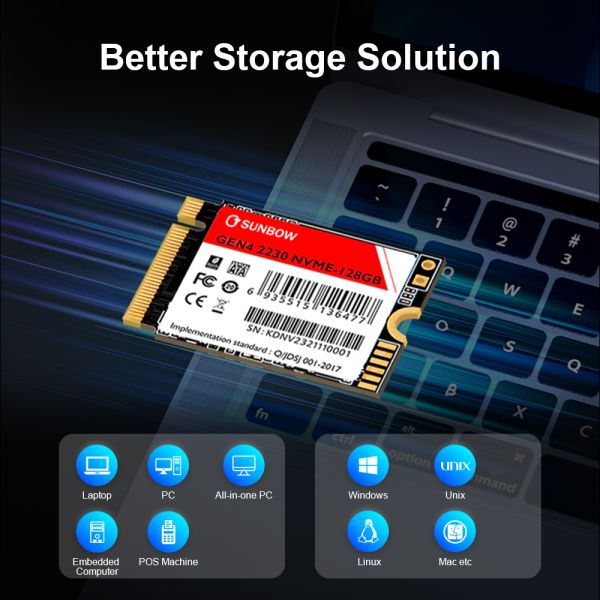

PCs, laptops, IPCs, embedded computers, thin clients, Mini-PCs, POS machines, All-in-one PCs, and other compatible devices
Delivery Time :
1-7 work days
Storage Temperature Range :
-40-75℃
Payment Terms :
L/C,T/T,D/P
Operating Temperature Range :
0-70℃
Packaging Details :
OEM/ODM
Brand Name :
TCSUNBOW/TCS
Installation Type :
Internal
Place of Origin :
China
Compatible Systems :
Mac, Windows, Unix, Linux, and more
Description

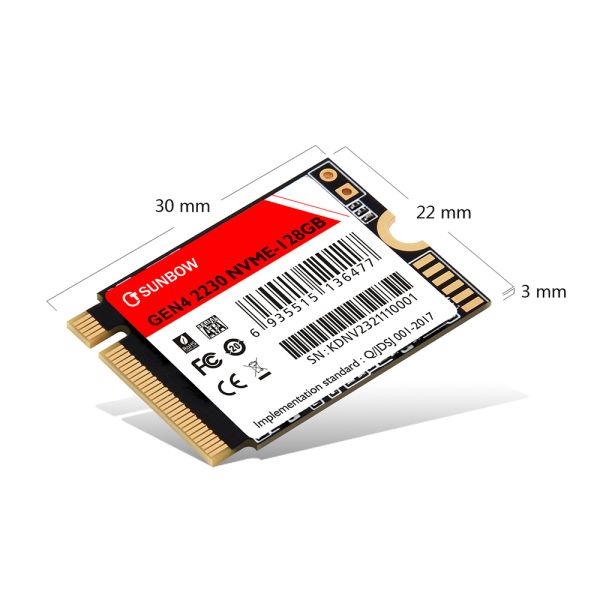

  • Measuring just 30 * 22 * 3 mm, the drive is designed for compact hardware where a standard 2280 SSD may not be suitable.
  • Despite the compact size, the G43 still runs on PCIe Gen4, giving it a real speed advantage over older Gen3 drives of similar dimensions.

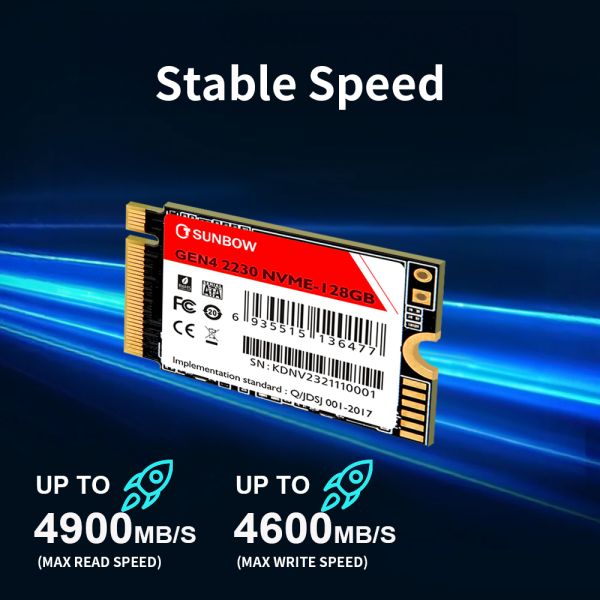

  • With transmission speeds of up to 4900MB/s, the G43 provides fast data access for system startup, application loading, file transfers, and other demanding everyday tasks.
  • 128GB, 256GB, 512GB, 1TB, and 2TB — cover everything from a lightweight OS drive to a substantial storage upgrade for compact systems.
  • Rated for 0°C to 70°C operation and -40°C to 75°C storage, holding up in a range of environments beyond a climate-controlled desktop.
Model Name G43 NVME M.2 -128GB G43 NVME M.2 -256GB G43 NVME M.2 -512GB G43 NVME M.2 -1TB G43 NVME M.2 -2TB
Capacity 128GB 256GB 512GB 1TB 2TB
EAN 6935515101765 6935515101772 6935515101789 6935515101796 6935515101802
Min Sequential Read/Write(MB/s) 1200MB/s/780MB/s 2200MB/s/1230MB/s 4800MB/s/2430MB/s 4700MB/s/4200MB/s 4730MB/s/4200MB/s
Max Sequential Read/Write(MB/s) 1200MB/s/780MB/s 2200MB/s/1230MB/s 4800MB/s/2430MB/s 4900MB/s/4500MB/s 4900MB/s/4600MB/s
Product Series NVME M.2(PCIE)SSD G43 Series
Interface Type NVMe (PCIE GEN4)
Origin CN (Origin)
Brand TCSUNBOW
Transport Protocol PCIe
Net Weight 3g
Gross Weight 25/20g
RGB No
Temperature Alert No
OEM/ODM Yes
Cache None
4KB Random Wirte 164128
4KB Random Read 183522
Internal/External Internal
Operating Voltage 3.3V
Operating Temperature 0-70℃
Storage Temperature -40~85℃
Warranty 3 Years
Nand Flash Type TLC/QLC
MTBF 1500000h
Item Demension 22*30*3mm
Box Packing Size 145*88*16.5MM or 100*60*15MM
Certificate CE,FCC,ROHS,KC
Application PC/NB/Server/All in one PC etc
Controller SMI/Yeestor/Realtek/Maxio etc
Flash Brand Intel/Micron/SAMSUNG/SK Hynix/SanDisk/Kioxia/YMTC
Note: Speed measurement is for reference only (Speed measurement is slightly different for different computer configurations)
