Specifications
Adervantege :
Top COB protechtion
Service :
Front Service
Pixel Failure :
<0.0003
Contrast Ratio :
1000:1
Ip Grade :
IP31
Service Access :
Back maintenance
Type :
Fine Pixel Pitch LED Display
Max Power Consumption :
600W/sqm
Colours :
281 trillion
Brand Name :
TBCLED
Model Number :
P1.56mm,P1.875
Certification :
FCC，CE，ROHS
Place of Origin :
China
MOQ :
10sqm
Price :
Negotiable
Payment Terms :
D/A
Supply Ability :
10000sqm/month
Delivery Time :
15days
Packaging Details :
Flight Case
Description
COB LED Poster Display: Ultra-HD Visuals for Impactful Indoor Branding
Product Overview
Elevate your brand's presence with our COB LED Poster Display—a cutting-edge advertising solution engineered with Flip Chip on Board technology. This display delivers unmatched UHD clarity, a wide color gamut, and dynamic visuals, making it the ideal tool for timely promotions, energy-efficient advertising, and immersive customer engagement.
Core Advantages
  • Stunning Visual Fidelity: Leveraging COB technology, the display offers sharp, vivid imagery with a 10,000:1 contrast ratio and 16-bit color depth.
  • Dynamic Flexibility: Play high-resolution videos, animations, or static graphics seamlessly. Update content in real time via USB, WiFi, or cloud control.
  • Energy-Efficient Performance: LED lamp beads minimize power consumption (average 100W per screen) while delivering 600nits brightness with a 100,000-hour lifespan.

COB LED Poster Display with Pixel Failure <0.0003 Contrast Ratio 1000:1 and IP31 for Ultra-HD Visuals

Technical Specifications
  • Pixel Pitch Options: P1.25, P1.56, P1.875 for tailored clarity based on viewing distance.

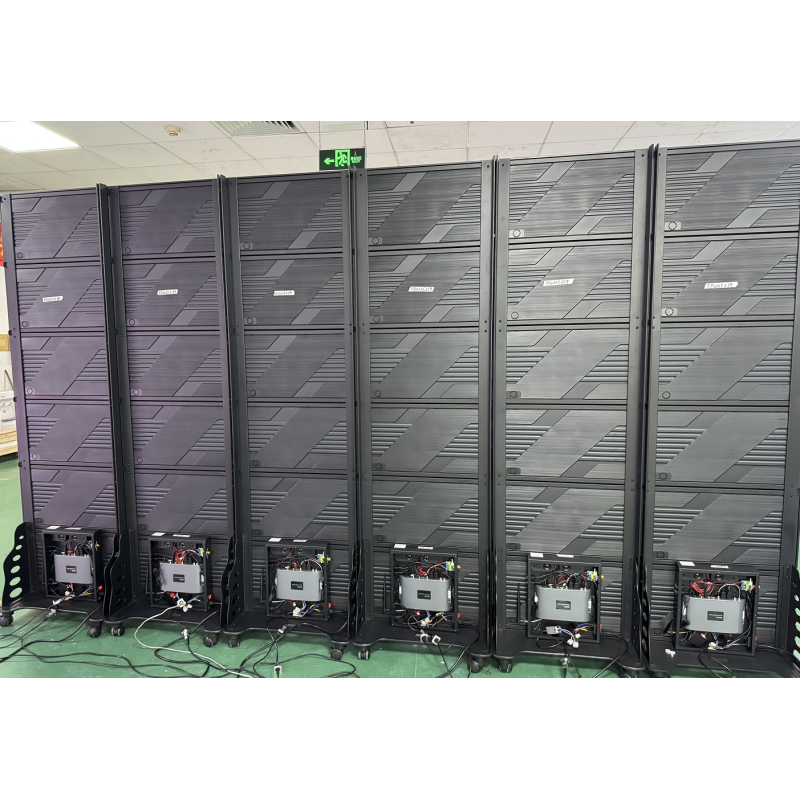

  • Screen Configurations: Choose from 5-6 cabinets to create screens ranging from 600×1687.5mm to 600×2025mm.
  • Installation Versatility: Floor-standing, wheel-mounted, wall-mounted, or hanging—adapt to any indoor space.

COB LED Poster Display with Pixel Failure <0.0003 Contrast Ratio 1000:1 and IP31 for Ultra-HD Visuals

COB LED Poster Display with Pixel Failure <0.0003 Contrast Ratio 1000:1 and IP31 for Ultra-HD Visuals

Parameters of COB LED Poster
Physical Parameter P1.25 P1.56 P1.875
Screen Size (mm) 600*1687.5 600*1687.5 600*2025
Configuration (WxH, per screen) 480*1350 pixels 384*1080 pixels 320*1080 pixels
No. of Cabinets (WxH, per screen) 5 5 6
Weight (per screen) 25kg 25kg 30kg
LED Type Flip-chip COB LED
Brightness (Max.) 600nits
Optical Parameter
Contrast Ratio 10,000:1
Viewing Angle - Horizontal/Vertical 170°/155°
Bit Depth 16 bit (internal processing 22bit)
Color Temperature - Adjustable 2,800K~10,000K
Electrical Parameter
Input Power Range 100~240VAC,50/60Hz
Power distribution (Max.) 320(W/Screen)
Power distribution (Avg.) 100(W/Screen)
Resolution 3,840 Hz
Operational Parameter
Working Temperature /Humidity 0°C-+40°C/10%-80%RH
Storage Temperature /Humidity -20°C~+45°C/5%-95%RH
LED Lifetime 100,000 hours
Controller Built-in
Features Multiple expansion ports, such as USB port, HDMI, audio, etc.
Maintenance Method Front service
Applications
  • Retail & Malls: Highlight new collections, flash sales, or product demos with eye-catching visuals.
  • Hospitality: Promote amenities, events, or dining offers in hotels and restaurants.
  • Exhibitions: Stand out at trade shows with seamless, large-format displays that draw crowds.
COB LED Poster Display with Pixel Failure <0.0003 Contrast Ratio 1000:1 and IP31 for Ultra-HD Visuals COB LED Poster Display with Pixel Failure <0.0003 Contrast Ratio 1000:1 and IP31 for Ultra-HD Visuals COB LED Poster Display with Pixel Failure <0.0003 Contrast Ratio 1000:1 and IP31 for Ultra-HD Visuals COB LED Poster Display with Pixel Failure <0.0003 Contrast Ratio 1000:1 and IP31 for Ultra-HD Visuals COB LED Poster Display with Pixel Failure <0.0003 Contrast Ratio 1000:1 and IP31 for Ultra-HD Visuals COB LED Poster Display with Pixel Failure <0.0003 Contrast Ratio 1000:1 and IP31 for Ultra-HD Visuals
