COB P1.25 LED Poster Display with Flip Chip on Board Technology and Front Service Maintenance Seamless LED Screen
COB P1.25 LED Poster Display with Flip Chip on Board Technology and Front Service Maintenance Seamless LED Screen
COB P1.25 LED Poster Display with Flip Chip on Board Technology and Front Service Maintenance Seamless LED Screen
COB P1.25 LED Poster Display with Flip Chip on Board Technology and Front Service Maintenance Seamless LED Screen
COB P1.25 LED Poster Display with Flip Chip on Board Technology and Front Service Maintenance Seamless LED Screen
COB P1.25 LED Poster Display with Flip Chip on Board Technology and Front Service Maintenance Seamless LED Screen
Specifications
Service :
Front Service
Contrast Ratio :
1000:1
Ip Grade :
IP31
Max Power Consumption :
600W/sqm
Brightness (Max.) :
600nits
Viewing Angle :
170°/ 170°
Brand Name :
TBCLED
Model Number :
P1.25
Certification :
FCC，CE，ROHS
Place of Origin :
China
MOQ :
10sqm
Price :
Negotiable
Payment Terms :
D/A
Supply Ability :
10000sqm/month
Delivery Time :
15days
Packaging Details :
Flight Case
Description

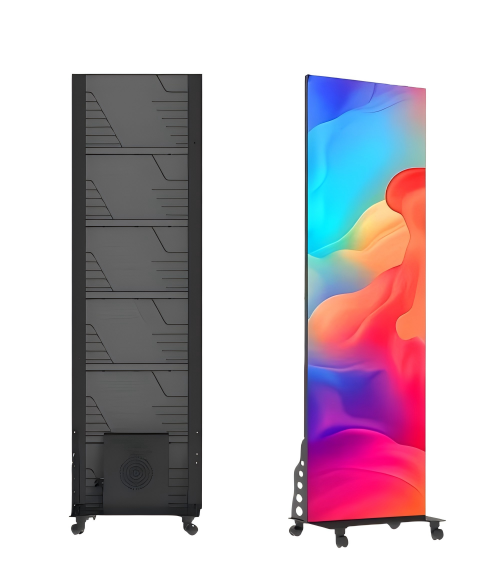

COB P1.25 LED Poster Display Seamless LED Screen

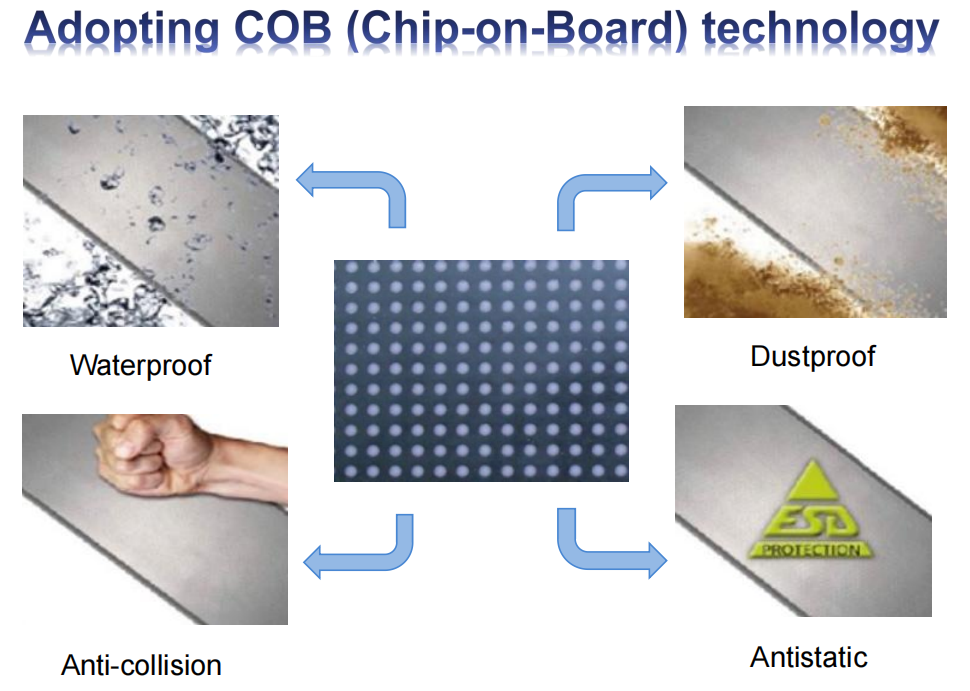

Seamless LED Screen with Flip Chip on Board Technology and Front Service Maintenance.
Technical Specifications
Parameter P1.25 P1.56 P1.875
Pixel Pitch (mm) P1.25 P1.56 P1.875
Screen Size (mm) 600×1687.5 600×1687.5 600×2025
Configuration (W×H, per screen) 480×1350 pixels 384×1080 pixels 320×1080 pixels
No. of Cabinets (W×H, per screen) 5 5 6
Weight (per screen) 25kg 25kg 30kg
LED Type Flip-chip COB LED
Brightness (Max.) 600nits
Contrast Ratio 10,000:1
Viewing Angle - Horizontal/Vertical 170°/155°
Bit Depth 16 bit (internal processing 22bit)
Color Temperature - Adjustable 2,800K~10,000K
Input Power Range 100~240VAC, 50/60Hz
Power Distribution (Max.) 320(W/Screen)
Power Distribution (Avg.) 100(W/Screen)
Resolution 3,840 Hz
Working Temperature / Humidity 0°C-+40°C / 10%-80%RH
Storage Temperature / Humidity -20°C~+45°C / 5%-95%RH
LED Lifetime 100,000 hours
Controller Built-in
Maintenance Method Front service
Interface Multiple expansion ports, such as USB port, HDMI, audio, etc.
Warranty 2 years
COB P1.25 LED Poster Display with Flip Chip on Board Technology and Front Service Maintenance Seamless LED Screen COB P1.25 LED Poster Display with Flip Chip on Board Technology and Front Service Maintenance Seamless LED Screen
Key Advantages

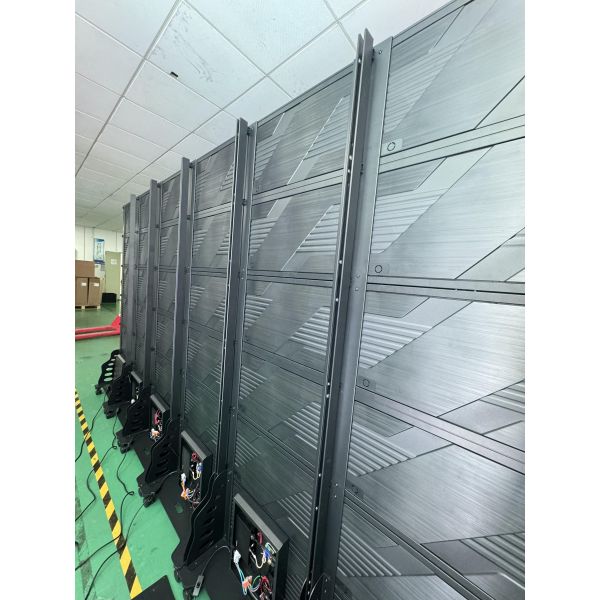

  • Seamless Cascade: Poster LED display supports seamless cascade with multiple screens to create large displays. UNIT poster LED screens can function as one large screen or operate separately.
COB P1.25 LED Poster Display with Flip Chip on Board Technology and Front Service Maintenance Seamless LED Screen
  • Smart Cloud Management: Built-in synchronous and asynchronous dual system modes, supporting multiple connection methods for video and audio program playback on LED Poster.
  • 2K 4K 8K Panel Displays: Indoor COB panels can be quickly spliced into 16:9 screens according to project requirements, achieving 2K, 4K, or even 8K visual display quality.
Applications
  • Retail Stores: For product promotion and brand image displays
  • Corporate Lobbies: To showcase company culture and dynamic announcements
  • Hotels & Restaurants: For event information and ambient decorative content
  • Exhibition Halls: For modular exhibition walls and interactive content display
  • Office Buildings: For real-time notice release and internal communication
