Specifications
Brand Name :
TBC LED
Model Number :
GOB P2.5
Certification :
FCC, CE, ROHS
Place of Origin :
China
MOQ :
10sqm
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 sqm per month
Delivery Time :
15 working days
Packaging Details :
Plywood box/Flight case
Type :
Outdoor Flexible LED Module
Pixel Pitch :
GOB P2.5
Module Size :
320x160mm
Refresh rate :
3840Hz
Warranty :
2 Years
Life span :
100000hours
Description

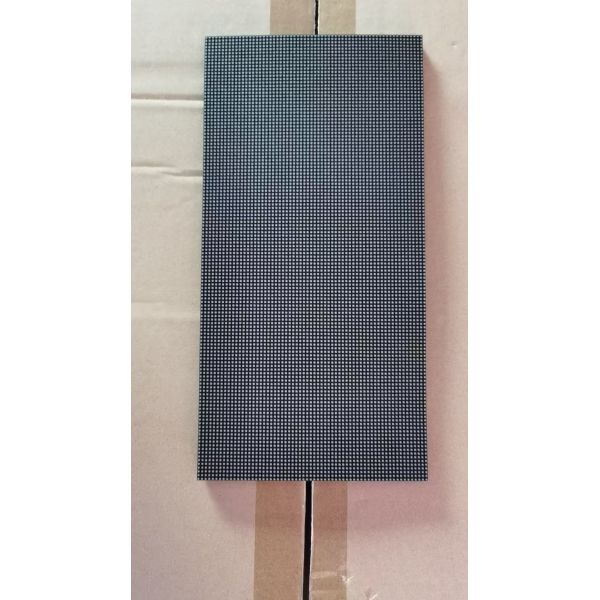

Creative Outdoor P2.5 GOB Soft Module 3840Hz Refresh Rate LED Module 320×160mm Flexible LED Screen



Ⅰ. LED Soft Module Specification:



GOB P2.5
Pixel Pitch 2.5mm
Pixel Configuration SMD1515
Pixel Density 160,000 pixels/m2
Module Dimensions(W x H) (mm) 320 x 160
Module Resolution 128 x 64
Average Power Consumption 300 W /Sqm
Max Power Consumption 650 W /Sqm
Brightness 4500 nits
Refresh Rate 3,840Hz
Expected Lifetime 100,000 Hrs
Servicing Front and rear
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity -20ºC - 50ºC / 10% - 90%
Warranty 2 years

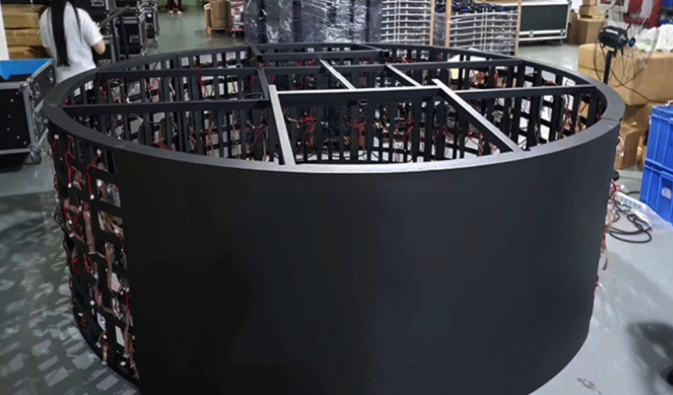

Outdoor P2.5 GOB Flexible LED Module with 3840Hz Refresh Rate and 320×160mm Module Size for Creative Displays


Ⅱ. Key Advantages of Outdoor GOB P2.5 LED Soft Module


① Fast & easy installation with our unique seamless splicing technology. Front maintenance is available with 14 magnetics per flexible leddisplay panel.

② Customized shape
Flexible LED billboards can be customized in any shape according to customer needs, and can be used in various felds and applications.

③ Seamless Splicing
Unique splicing processing, single point maintenance, effectively reducing screen splicing gaps, splicing flatness ≤ 0.1mm, achieving perfect splicing. Easy to fit various surfaces, the splicing surface is smooth and free of bumps and bumps.

④Good ductility, capable of lifting, seating, hanging, etc., to maximize compliance with on-site installation requirements.


Outdoor P2.5 GOB Flexible LED Module with 3840Hz Refresh Rate and 320×160mm Module Size for Creative Displays


Ⅲ. Packaging:

Wooden case


Outdoor P2.5 GOB Flexible LED Module with 3840Hz Refresh Rate and 320×160mm Module Size for Creative Displays







Our Services


1. 10 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request


FAQ


Q1. How does the semi-auto corner protector work?


A: Gently push the button, the corner protector will release and cover the corner area.

Q2. What installation options do we have?

A: Either stacking on the ground or hanging is supported.

Q3. Do you have any MOQ limit for led screen order?

A: Low MOQ, modules or complete screen order are all welcome.

Q4. What's the shipping method?

A: Airfreight, sea and train transport according to different regions.

Q5. What's the payment method?

A: Mostly we accept telegraphic transfer, 50% before production and 50% balance before shipment.

Q6. How do you control the production quality?

A: We manage quality starting from incoming material, all LEDs, ICs and PSU are pre-inspected then go to the production line.

The modules and complete screen will have at least 72 hours aging test, to make sure of stable quality and performance.

Q7: How does warranty work?

A: We provide 1-3 years warranty for different products. Free Repair or Exchange of Defective Parts with One-way Shipping
