P1.86mm GOB LED Display with 3840Hz Refresh Rate and Front Access Service for Safe Installation
P1.86mm GOB LED Display with 3840Hz Refresh Rate and Front Access Service for Safe Installation
P1.86mm GOB LED Display with 3840Hz Refresh Rate and Front Access Service for Safe Installation
P1.86mm GOB LED Display with 3840Hz Refresh Rate and Front Access Service for Safe Installation
P1.86mm GOB LED Display with 3840Hz Refresh Rate and Front Access Service for Safe Installation
P1.86mm GOB LED Display with 3840Hz Refresh Rate and Front Access Service for Safe Installation
Specifications
Certification :
CCC, CE, RoHS, FCC, CB, TUV, IEC, BIS
LED Type :
SMD1212
Warranty :
2 Years
Brand Name :
TBC LED
Price :
USD 2200-3800 / Piece
Screen Size :
2560x960mm
Gray Scale :
12-16 bit
Operating System :
NovaStar AD20
Brightness :
600nits
IP Rating :
IP43
Drive Mode :
1/43 Scan
ESD Protection :
Anti-Static Design
Maintenance :
Front Access Service
Cabinet Material :
Sheet Metal
Delivery Time :
12-15 days
Refresh Rate :
3840Hz
Contrast :
10000:1
Packaging Details :
Flight case with foam protection, export-grade wooden crate
Model Number :
GOB P1.86-ESD
Place of Origin :
China
Physical Density :
288,906 dots/sqm
Module Size :
320x160mm
Payment Terms :
T/T,L/C,PayPal,Western Union
MOQ :
1 Piece
Viewing Angle :
160°/160°
Supply Ability :
1000 Pieces per Month
Pixel Pitch :
P1.86mm
Description
P1.86 GOB LED Display Anti-Static ESD Protection 3840Hz Refresh Rate 600nits Front Access Service for Safe Installation

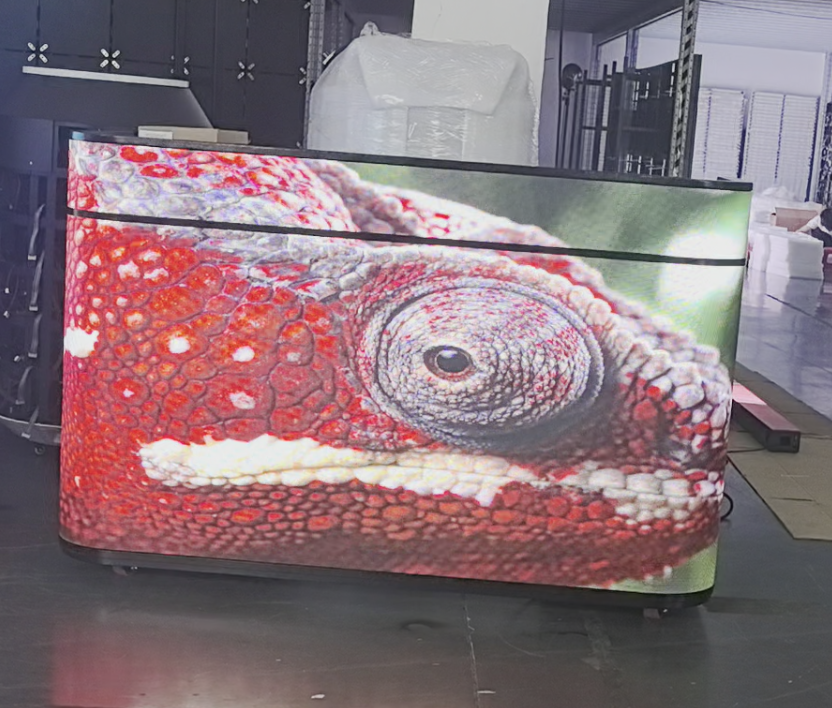

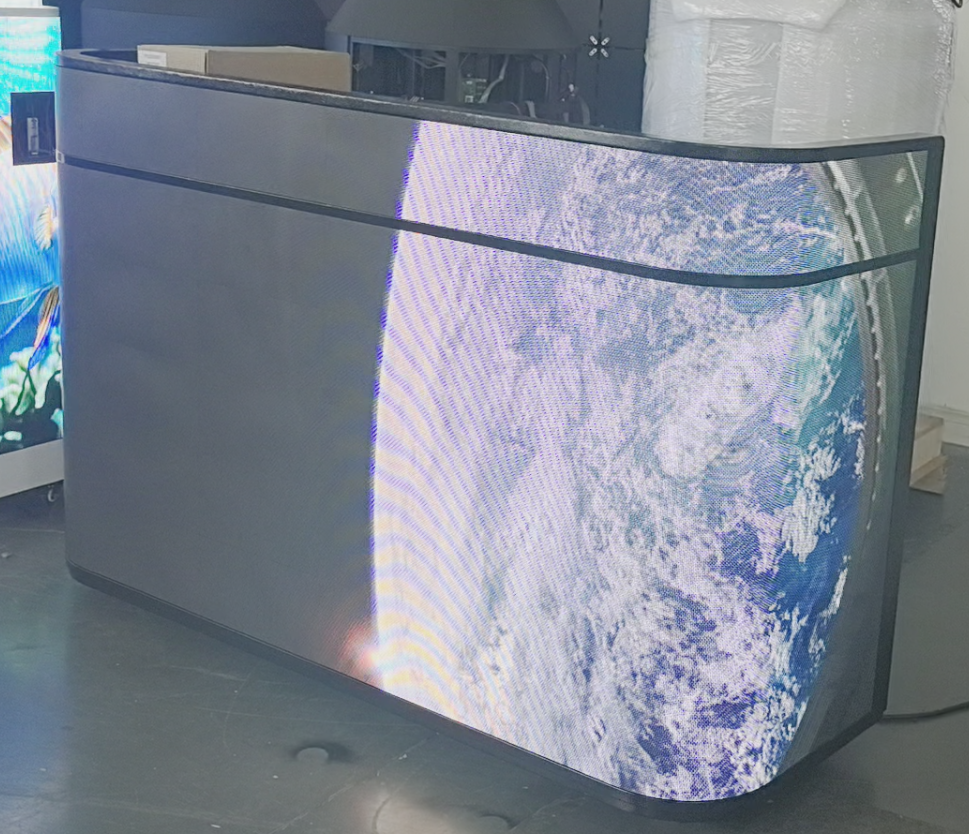

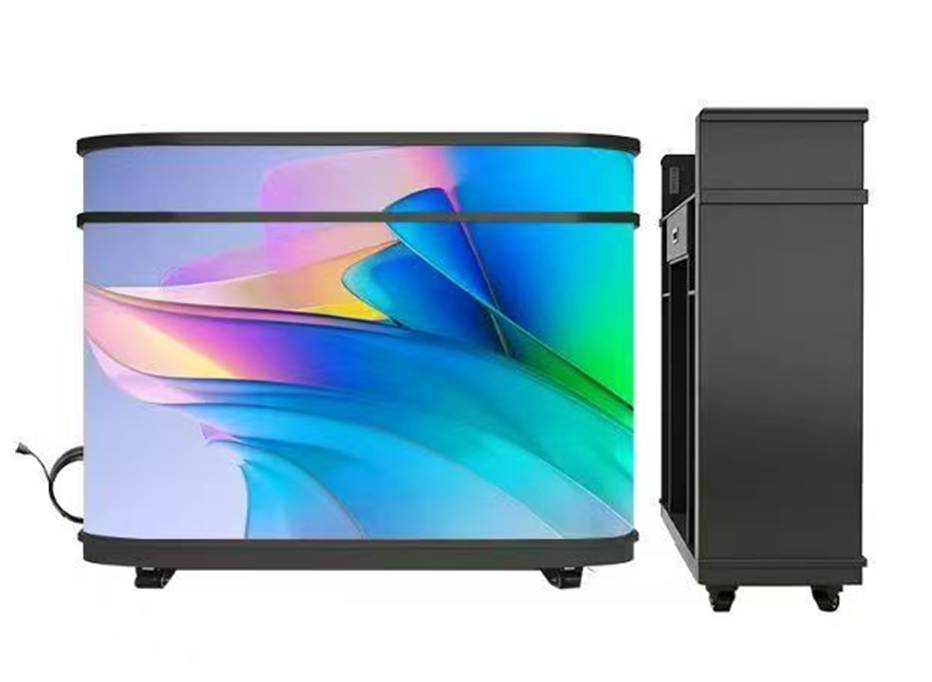

2560×960mm GOB front desk LED display with anti-static ESD protection for safe transport, installation and long-term operation. The P1.86 pixel pitch delivers 288,906 dots/sqm ultra-fine detail, while GOB (Glue On Board) technology seals each module against moisture, dust and impact.

Key Features
  • Anti-Static ESD Protection: Electrostatic discharge protection safeguards modules during transport, handling and installation, reducing failure risk.
  • GOB Protection: Glue On Board encapsulation seals the LED surface for moisture-proof, dust-proof and impact-resistant performance.
  • 3840Hz Flicker-Free Refresh: High refresh rate removes scan lines in photos and videos for broadcast-ready image quality.
  • Front Access Service: Tool-free front maintenance enables wall-hugging installation in compact spaces.
  • Plug & Play: Pre-assembled and fully packaged, controlled by NovaStar AD20 with synchronous and asynchronous playback.
  • 600nits Brightness: Balanced indoor brightness tuned for corporate lobbies and digital signage.
Technical Specifications
Model GOB P1.86
Pixel Pitch P1.86mm
LED Type SMD1212
Physical Density 288,906 dots/sqm
Module Dimension 320×160 mm
Display Dimension W2560×H960mm
Maintenance Front Access Service
Cabinet Material Sheet Metal
Brightness 600nits
ESD Protection Anti-Static Design
Viewing Angle 160°/160° (V/H)
Contrast 10000:1
Drive Mode 1/43 Scan
Gray Scale 12-16 bit
Refresh Rate 3840 Hz
Max Power Consumption 600 w/m²
Average Power Consumption 200 w/m²
Power Voltage Range AC110-240V, 50/60Hz
Protection Level IP43
Working Temperature -20~50°C
Certifications CCC, CE, RoHS, FCC, CB, TUV, IEC, BIS
Warranty 2 Years

P1.86mm GOB LED Display with 3840Hz Refresh Rate and Front Access Service for Safe Installation

P1.86mm GOB LED Display with 3840Hz Refresh Rate and Front Access Service for Safe Installation

P1.86mm GOB LED Display with 3840Hz Refresh Rate and Front Access Service for Safe Installation

Application Scenarios
  • Corporate Reception Areas & Office Lobbies
  • Retail Stores & Shopping Malls
  • Exhibition Booths & Trade Shows
  • Hotels, Banks & Hospitals
  • Conference Centers & Event Venues
