135 inches P1.56 Full HD LED All in one TV Folding Design Liftable Screen with Dolby Audio for Smart Conferences Easy Setup
135 inches P1.56 Full HD LED All in one TV Folding Design Liftable Screen with Dolby Audio for Smart Conferences Easy Setup
135 inches P1.56 Full HD LED All in one TV Folding Design Liftable Screen with Dolby Audio for Smart Conferences Easy Setup
135 inches P1.56 Full HD LED All in one TV Folding Design Liftable Screen with Dolby Audio for Smart Conferences Easy Setup
135 inches P1.56 Full HD LED All in one TV Folding Design Liftable Screen with Dolby Audio for Smart Conferences Easy Setup
135 inches P1.56 Full HD LED All in one TV Folding Design Liftable Screen with Dolby Audio for Smart Conferences Easy Setup
Specifications
Model :
135inches
Pixel Pitch (mm) :
P1.56
Screen Size (mm) :
3000×1687.5mm
Contrast Ratio :
10000:1
Module Size :
150mm×168.75mm
Panel Size :
600x337.5mm
Viewing Angle :
160°
Cabient Material :
Die casting aluminum
Weight :
160KG
Brand Name :
TBCLED
Model Number :
P1.56mm
Certification :
FCC，CE，ROHS
Place of Origin :
China
MOQ :
10sqm
Price :
Negotiable
Payment Terms :
D/A
Supply Ability :
10000sqm/month
Delivery Time :
15days
Packaging Details :
Flight Case
Description
135 inches P1.56 Full HD LED All in one TV Folding Design Liftable Screen with Dolby Audio for Smart Conferences Easy Setup
Professional LED display featuring Dolby Audio, smart conference capabilities, easy setup folding design, and liftable screen for versatile applications.
Technical Specifications
Model UT-C135
Screen Size 135"
Support Material Die Casting Aluminum
Panel Type Flip COB
Resolution 1920×1080 (Full HD)
Pixel Pitch 1.56 mm
Brightness 600 cd/㎡
Contrast Ratio 10000:1
Viewing Angle ≥ 160° (Horizontal/Vertical)
Grayscale 18-bit
Refresh Rate 3840 Hz
Protection Level IP54 (Front) / IP30 (Back)
Maintenance Mode Front Access
System Platform Android/Windows Dual System (Optional)
Android Version Android 11
Windows Configuration I5 CPU + 8GB RAM + 128GB SSD
Windows Version Windows 10
Wireless Screen Transfer Android phones, iPhones, iPads, Windows computers, Macs
Conference Cloud Live Broadcast Supported
Operating Temperature -20℃ to +60℃
Operating Humidity 10%RH to 75%RH
Maximum Power Consumption 1800W
Average Power Consumption 630W
Power Supply Voltage AC 100-240V 50/60Hz
Weight 160 kg
135 inches P1.56 Full HD LED All in one TV Folding Design Liftable Screen with Dolby Audio for Smart Conferences Easy Setup

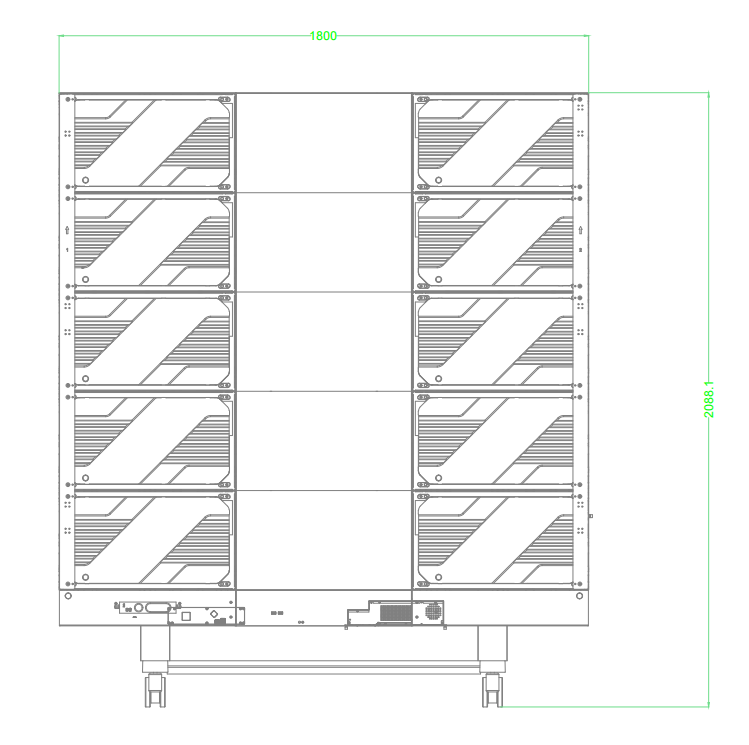

Dimensional Drawing - 135-inch COB All-in-One LED Screen
135 inches P1.56 Full HD LED All in one TV Folding Design Liftable Screen with Dolby Audio for Smart Conferences Easy Setup
Key Features of All-in-One COB LED TV
  • Ultra-high black color ratio (up to 96.16%) for deeper blacks and superior image contrast
  • Higher pixel density and enhanced display uniformity, eliminating visual gaps between LEDs
  • Superior anti-collision and dust-proof performance through integrated packaging
  • Reduced light decay rate for extended panel service life
  • Advanced heat dissipation system ensuring stable operation during extended use
  • Plug-and-play design with compact flight-case packaging for instant deployment
  • Built-in Android/Windows dual system for effortless operation
  • Comprehensive wireless connectivity supporting video conferencing and mobile device interaction
  • Dolby Audio integration for premium sound quality and enhanced user experience
135 inches P1.56 Full HD LED All in one TV Folding Design Liftable Screen with Dolby Audio for Smart Conferences Easy Setup
