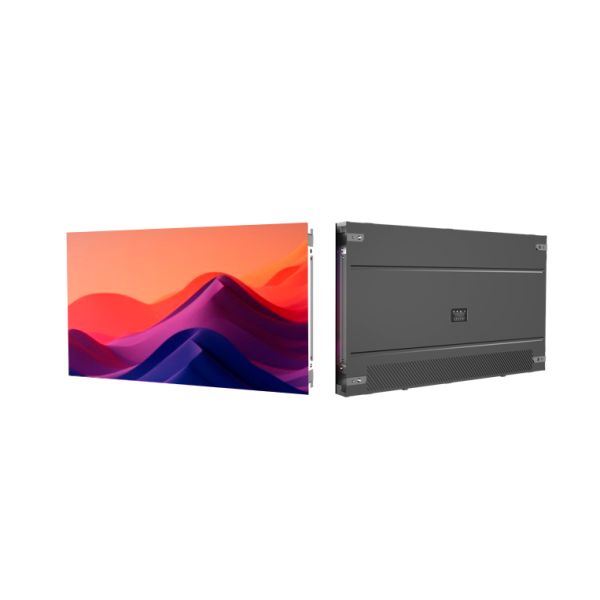

COB P1.25 4K Resolution COB LED Display with 600nits Brightness and 100000hours Lifespan for Indoor HD Video Wall
COB P1.25 4K Resolution COB LED Display with 600nits Brightness and 100000hours Lifespan for Indoor HD Video Wall
COB P1.25 4K Resolution COB LED Display with 600nits Brightness and 100000hours Lifespan for Indoor HD Video Wall
COB P1.25 4K Resolution COB LED Display with 600nits Brightness and 100000hours Lifespan for Indoor HD Video Wall
COB P1.25 4K Resolution COB LED Display with 600nits Brightness and 100000hours Lifespan for Indoor HD Video Wall
COB P1.25 4K Resolution COB LED Display with 600nits Brightness and 100000hours Lifespan for Indoor HD Video Wall
Specifications
Brand Name :
TBC
Model Number :
COB P1.25
Certification :
CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin :
China
MOQ :
10sqm
Price :
Negotiable
Payment Terms :
T/T,Western Union,PayPal
Supply Ability :
10,000sqm/month
Delivery Time :
25days
Packaging Details :
Wooden Box
Pixel Pitch :
1.25mm
Module Size :
150×168.75mm
Panel Dimension :
600x337.5×42mm
Brightness :
Standard 600nits
Cabinet weight :
4.5kg/panel
Material :
Die-casting Aluminium
Maintenance Way :
Front Service
Input Voltage :
AC100~240V 50/60Hz
Warranty :
3 years
Description
Indoor 4K LED Video Wall COB P1.25 600×337.5mm Panel
High-definition modular LED display featuring 600nits brightness, COB technology, and seamless splicing capability for large-scale installations.
Key Specifications
Parameter P1.25 P1.875
Pixel Density 640,000 px/㎡ 284,089 px/㎡
LED Chip Flip Chip
Module Size (W*H) 150*168.75mm
Module Resolution 120*135 dots 80*90 dots
Surface Treatment Matt COB
Surface Hardness 4H
Panel Size (W*H*D) 600mm*337.5mm*42mm
Panel Weight 4.5 kg / panel
Panel Resolution (dots) 480*270 320*180
Material Die-casting Aluminium
Circuit Design Common Anode Circuit
Flash Correction Storage Applicable
Brightness Standard 600nits
Refresh Rate 3840Hz
Contrast Ratio 20000:1 (Condition without lighting)
Color Temperature 9300K (Standard)
Viewing Angle H160°, V160°
Input Voltage AC 220 or 100~240V 50/60Hz
Max. Power Consumption (White Balance 600nits) 70 w/panel 70 w/panel
Maintenance Way Front Service
IP level of PCB surface IP65 (Washable by clean water)
Lifetime at 50% Brightness 100,000 hours
Operating Temperature / Humidity -10°C-+40°C/10%RH-90%RH
Storage Temperature / Humidity -20°C-+60°C/10%RH-90%RH
Certificate CCC, EMC CLASS-A, ROHS, CQC
Application Indoor
Warranty 3 years
COB P1.25 4K Resolution COB LED Display with 600nits Brightness and 100000hours Lifespan for Indoor HD Video Wall
COB LED Product Details
The standard COB cabinet (600×337.5mm) adopts a hard-connection design with a non-customizable panel size. It is equipped with a customized Megmeet wide-voltage power supply (100~240V, non-selectable) and offers optional NovaStar receiving cards (A10s Pro, A8s-N, A8 Plus-N). Free logo printing is available on the cabinet back.
Key Features of the COB Series
  • Ultra-Thin, Streamlined Cabinet: Boasting an ultra-slim 42mm total thickness and minimalist aesthetic, the cabinet integrates flawlessly with various event spaces while boosting portability and optimizing space utilization.
  • High-Grade COB Technology: Featuring advanced Chip-On-Board packaging, the display offers a rugged, scratch-resistant surface that safeguards pixels against collision damage--ensuring stable performance even in high-foot-traffic environments.
  • Seamless Splicing & Immersive Visuals: Achieve gapless for large-scale installations. With an impressive 20,000:1 contrast ratio, it delivers crisp details, vibrant hues, and deep blacks, bringing high-definition content to life.
  • Versatile Display Solutions: Easily splice into 4K or 8K screens with our versatile product lineup, including all-in-one LED TVs, LED posters, LED folding screens, curved LED screens, and COB soft modules.
COB P1.25 4K Resolution COB LED Display with 600nits Brightness and 100000hours Lifespan for Indoor HD Video Wall

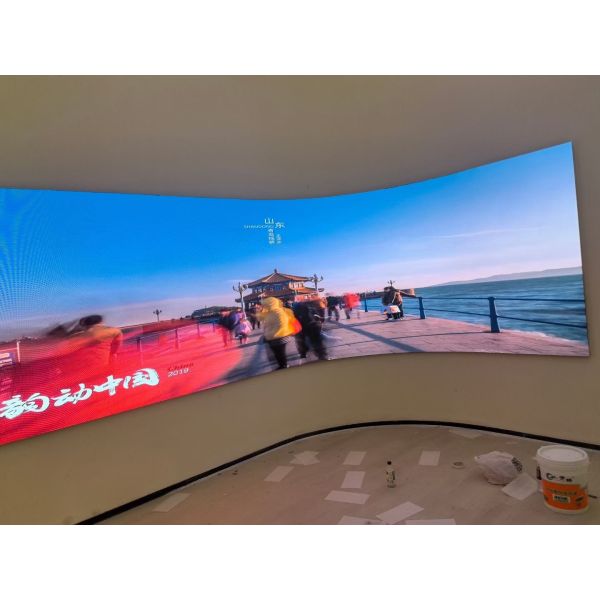

COB Cabinet Project Case Study
COB P1.25 4K Resolution COB LED Display with 600nits Brightness and 100000hours Lifespan for Indoor HD Video Wall
