Specifications
Payment Terms :
T/T,L/C,Western Union
Module Size :
320x160mm
Place of Origin :
China
Packaging Details :
Plywood box / Flight case
Maintenance :
Magnetic front maintenance
Pixel Pitch :
GOB P1.86
Brand Name :
TBC LED
Model Number :
GOB P1.86
Supply Ability :
500 sets per month
Full Screen Size :
1058x500x1115mm
Certification :
FCC, CE, ROHS, etc.
Brightness :
650cd/m2
MOQ :
1 set
Delivery Time :
15-20 working days
Price :
Negotiable
Refresh Rate :
3840Hz/7680Hz
Description

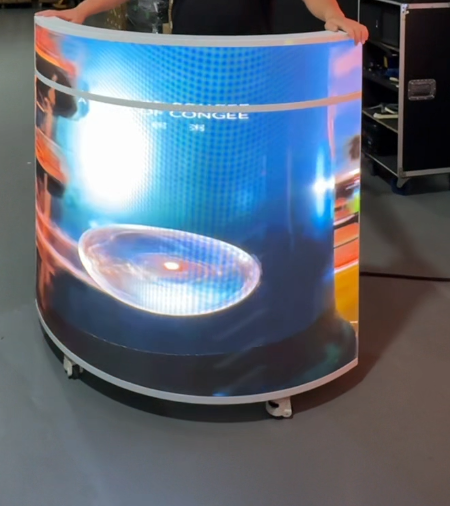

Fine Pitch P1.86 Semi-Circular GOB LED Display 3840Hz Camera Friendly Curved Reception Desk Screen
Product Overview

This fine pitch P1.86 semi-circular GOB reception desk screen delivers crisp high-definition visuals with a 3840Hz camera friendly refresh rate. Its curved form wraps around front desks and reception counters, turning hotel lobbies and corporate entrances into eye-catching brand spaces with vivid, flicker-free imagery.

Technical Specifications
Pixel Pitch P1.86mm
Module Size 320*160 mm
Lamp Bead Model SMD1515
Module Resolution 172*86 Dots
Scan Mode 1/43S
Product Size W1058*D500*H1096 mm
LED Display Size W1280*H960mm
LED Screen Resolution W688*H516dots
Number of Modules W4*H6
Net Weight of Reception Desk Screen 47.5 kg
Brightness 650 cd/m²
Refresh Rate 3840 Hz
Gray Scale 14 Bit
Maintenance Method Magnetic Front Maintenance
Product Process GOB Coating, Waterproof & Anti-Collision
Average Power Consumption 147 W
Max Power Consumption 492 W
Input AC110-240V
Controller NovaStar
Lifespan 100000 hours
Warranty 2 Years
Product Features
  • Fine Pitch P1.86 Imaging: The P1.86mm pixel pitch with SMD1515 lamp beads and 172*86 dot module resolution produces sharp, high-definition pictures ideal for close-range viewing at reception counters.
  • Smooth High-Refresh Imaging: 3840Hz/7680Hz refresh rate with 14-16 bit gray scale delivers flicker-free, camera friendly images, so on-screen branding stays clear and true-to-life in photos, video calls and live broadcasts.
  • Semi-Circular Curved Design: The curved shape hugs reception desks naturally, creating a modern, premium focal point that flat screens cannot match.
  • GOB Protective Coating: GOB technology makes the panel waterproof, dustproof and anti-collision, keeping the LEDs safe from accidental knocks, dust and splashes.
  • Magnetic Front Maintenance: Modules are magnetically attached and can be replaced from the front in seconds, with no rear access space required.
Product Advantages
  • Stronger First Impression: A fine pitch curved digital signage screen at the front desk instantly draws visitors' attention and reinforces a professional brand image.
  • Reliable Continuous Operation: With a 100000-hour lifespan, 2-year warranty and GOB protection against impact and moisture, the screen keeps reception areas running with low failure rates.
  • Space-Saving Installation: Front-access service allows the screen to be built into counters or mounted flush against walls, making the most of limited lobby space.

Fine Pitch P1.86 GOB LED Display with 3840Hz Refresh Rate and Magnetic Front Maintenance for Reception Desks

Fine Pitch P1.86 GOB LED Display with 3840Hz Refresh Rate and Magnetic Front Maintenance for Reception Desks

Fine Pitch P1.86 GOB LED Display with 3840Hz Refresh Rate and Magnetic Front Maintenance for Reception Desks

Applications
  • Hotel & corporate reception desks
  • Front desk digital signage & lobby displays
  • Retail showrooms & brand stores
  • Exhibition booths & trade shows
