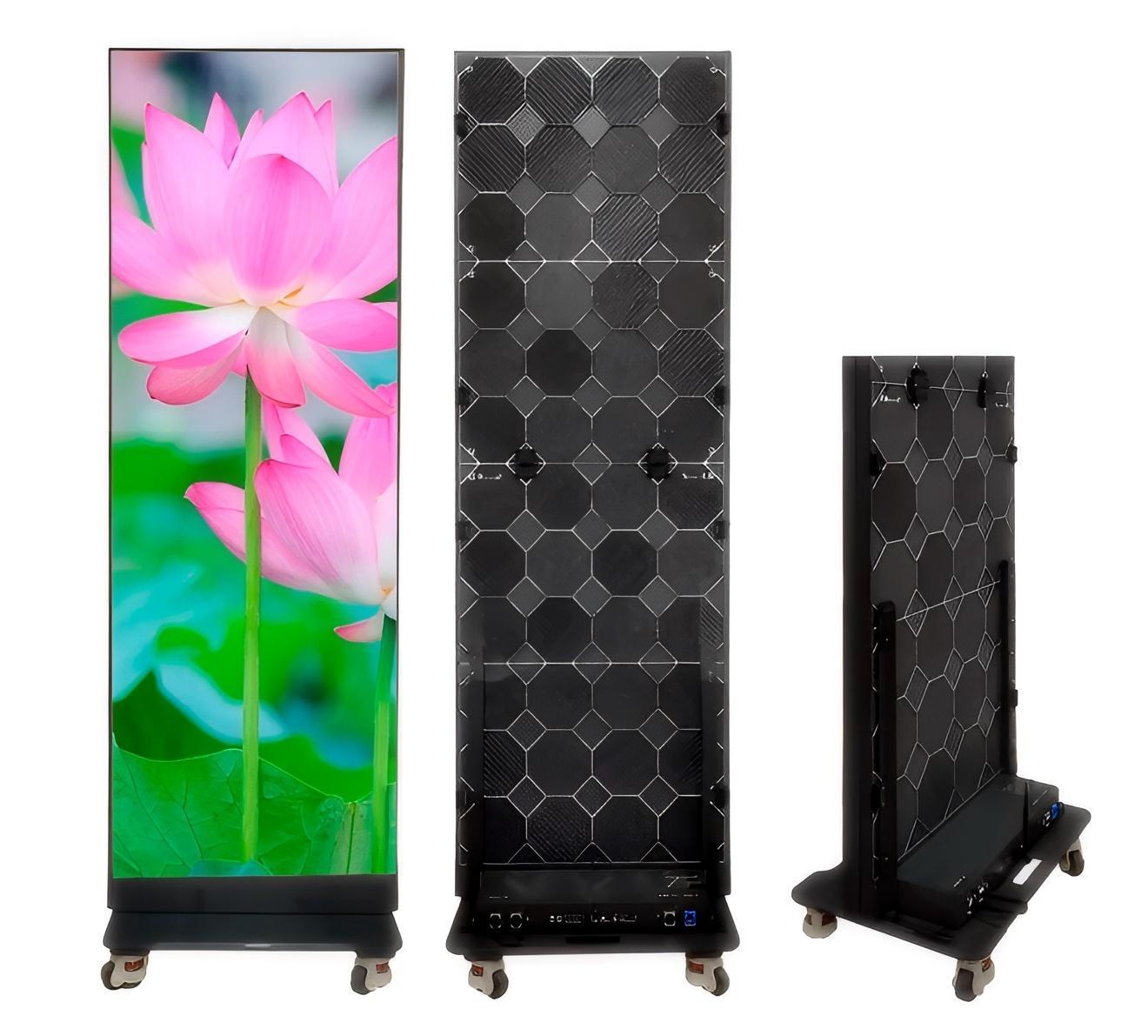

P1.86 Flip Chip COB LED Screen with 600nits Brightness, 3840Hz Refresh Rate for Front Service Maintenance
P1.86 Flip Chip COB LED Screen with 600nits Brightness, 3840Hz Refresh Rate for Front Service Maintenance
P1.86 Flip Chip COB LED Screen with 600nits Brightness, 3840Hz Refresh Rate for Front Service Maintenance
P1.86 Flip Chip COB LED Screen with 600nits Brightness, 3840Hz Refresh Rate for Front Service Maintenance
P1.86 Flip Chip COB LED Screen with 600nits Brightness, 3840Hz Refresh Rate for Front Service Maintenance
P1.86 Flip Chip COB LED Screen with 600nits Brightness, 3840Hz Refresh Rate for Front Service Maintenance
Specifications
Supply Ability :
10000sqm/month
Resolution :
344x1032
Certification :
FCC, CE, ROHS
Model Number :
COB P1.86
LED Type :
SMD1515
Refresh Rate :
3840Hz
Warranty :
3 years
Payment Terms :
D/A
Protection Level :
IP40
Viewing Angle :
160°/160°
Price :
Negotiable
Max Power Consumption :
490W/Screen
Place of Origin :
China
Packaging Details :
Flight Case
Pixel Pitch :
COB P1.86
MOQ :
10sqm
Delivery Time :
15days
Brand Name :
TBCLED
Brightness :
600nits
Description
P1.86 Flip Chip COB LED Screen with 600nits Brightness and 3840Hz Refresh Rate for Front Service Maintenance
High-performance P1.86 Flip Chip COB LED display featuring 600nits brightness and 3840Hz refresh rate, designed for convenient front service maintenance.
Technical Specifications
Parameter P1.86 (COB)
LED Type SMD1515
Pixel Pitch (mm) P1.86 (COB)
Product Size (W*H*D) (mm) 660*2121*440
Display Size (W*H) (mm) 640*1920
Resolution (W*H) 344*1032
Weight (kg) 33
Material Die-cast frame + sheet metal base
Module Size (W*H) (mm) 320*160
Brightness (nit) 600
Refresh Rate (Hz) 3840
Color Temperature (K) 9000±1000
Viewing Angle (H/V) (°) 160°/160°
Driving Method 1/43 Scan
AC Operating Voltage (V) AC 200~240 (wide voltage optional)
Power (Max/Average) (W/set) 490/163
Storage Temperature (°C) -40~+60
Operating Temperature (°C) -10~+40
Storage Humidity (RH) 10%~90%
Operating Humidity (RH) 10%~90%
Protection Level (Front/Rear) IP40/IP40
LED Lifespan (H) 100,000
Module Maintenance Front maintenance
Power & Other Maintenance Front maintenance
Seamless Splicing Supported
Folding Fold backward in half
Sound Supported (optional)
Installation Floor standing, assembled
Lifespan 100,000 hours
Warranty 3 years
P1.86 Flip Chip COB LED Screen with 600nits Brightness, 3840Hz Refresh Rate for Front Service Maintenance
Product Features
  • Crystal-Clear Close View: The fine P1.86 pitch and 600nit brightness keep text and images razor-sharp, even up close.
  • Flicker-Free Motion: A 3840Hz refresh rate delivers smooth, fluid video with no flicker on camera.
  • Easy Front Service: Modules and power swap from the front, so setup and maintenance are quick against any wall.
  • Slim & Foldable: The lightweight die-cast frame folds backward in half, saving space and cutting shipping costs.
P1.86 Flip Chip COB LED Screen with 600nits Brightness, 3840Hz Refresh Rate for Front Service Maintenance P1.86 Flip Chip COB LED Screen with 600nits Brightness, 3840Hz Refresh Rate for Front Service Maintenance
Product Advantages
  • Vivid, High-Contrast Image: 10,000:1 contrast brings deep blacks and vibrant colors to life.
  • Seamless Video Wall: Splice multiple units into one larger canvas with invisible seams.
  • Durable & Reliable: 100,000-hour lifespan, IP40 protection and a 3-year warranty.
Applications
  • Retail & Showrooms: eye-catching product displays and promotions.
  • Corporate Lobbies: bright, professional brand messaging.
  • Trade Shows & Exhibitions: vivid booth visuals that stand out.
  • Churches, Schools & Government: clear information for every audience.
