Indoor COB LED Video Wall 1.86mm Pixel Pitch with 600nits Brightness Front Service Cabinet
Indoor COB LED Video Wall 1.86mm Pixel Pitch with 600nits Brightness Front Service Cabinet
Indoor COB LED Video Wall 1.86mm Pixel Pitch with 600nits Brightness Front Service Cabinet
Indoor COB LED Video Wall 1.86mm Pixel Pitch with 600nits Brightness Front Service Cabinet
Indoor COB LED Video Wall 1.86mm Pixel Pitch with 600nits Brightness Front Service Cabinet
Indoor COB LED Video Wall 1.86mm Pixel Pitch with 600nits Brightness Front Service Cabinet
Specifications
Model Number :
COB P1.86
Place of Origin :
Guangdong, China
Supply Ability :
10,000sqm per Month
Packaging Details :
Flight Case or Wooden Box
Module Size :
320×160mm
Price :
Negotiable
Payment Terms :
T/T,Western Union,PayPal
Panel Resolution :
344×258 dots
Material :
Die-casting Aluminium
Brightness :
600nits
Delivery Time :
25 days
Panel Weight :
7.5kg
Brand Name :
TBC
Contrast Ratio :
10000:1
Certification :
CCC, EMC CLASS-A, ROHS, CQC
Pixel Pitch :
1.86mm
MOQ :
10sqm
Module Resolution :
172×86 dots
Panel Size :
640×480×59mm
Description
Indoor COB LED Video Wall P1.86mm 600nits Brightness Front Service 640x480mm Panel
Indoor COB LED Video Wall P1.86mm Flip Chip COB Front Service 4:3 Panel. COB P1.86mm Indoor LED Video Wall replaces traditional fine-pitch SMD with mini flip-chip COB technology. Anti-collision sealed surface, HDR-class picture quality, and high grayscale in low brightness—see every detail even in dimly lit scenes. The non-reflective matte finish and supreme black uniformity bring true-to-life imagery to retail stores, showrooms, meeting rooms, and control centers.
Technical Specifications
Parameter P1.86 COB LED
Pixel Pitch 1.86mm
LED Type Flip Chip COB
Module Size (W*H) 320*160mm
Module Resolution (W*H) 172*86 dots
Panel Size (W*H*D) 640*480*59mm
Panel Weight 7.5kg
Panel Resolution (W*H) 344*258 dots
Cabinet Material Die-casting Aluminum
Circuit Design Common Anode Circuit
Brightness 600nits
Refresh Rate 3840Hz
Contrast Ratio 10000:1
Color Temperature 9300K
Viewing Angle H160° / V160°
Surface Treatment Matt COB, 4H Hardness
Input Voltage AC 100-240V, 50/60Hz
Max. Power (600nits) 88W / panel
Maintenance Way Front Service
IP Level (PCB Surface) IP54
Flash Correction Storage Applicable
Lifetime (50% Brightness) 100,000 hours
Operating Temp / Humidity -10°C to +40°C / 10%-90% RH
Storage Temp / Humidity -20°C to +60°C / 10%-90% RH
Certificate CCC, EMC CLASS-A, ROHS, CQC
Warranty 3 years
Indoor COB LED Video Wall 1.86mm Pixel Pitch with 600nits Brightness Front Service Cabinet
Vivid Picture Quality & True-to-Life Colors
  • Brilliant Color with HDR Depth — Mini flip-chip COB paired with HDR processing delivers rich, accurate colors. High grayscale even at low brightness means fine gradients—skin tones, sky shifts, shadows—all stay natural and seamless. No color banding, no flat-looking images.
  • Deep Blacks, Non-Reflective Surface — Black coating technology and matte COB finish absorb ambient light instead of reflecting it. Blacks stay ink-deep under bright room lighting, and the non-reflective surface eliminates glare. Every frame pops with crisp contrast and real visual depth.
  • Clear From Any Seat in the Room — 160° ultra-wide viewing angle keeps colors and brightness consistent wherever viewers stand. No washed-out edges, no color shift at the sides—everyone sees the same sharp picture.
  • Flicker-Free, All-Day Comfort — 3840Hz refresh rate eliminates visible flicker entirely. Smooth video at any speed. Comfortable for long meetings, control room shifts, and continuous retail playback.
Indoor COB LED Video Wall 1.86mm Pixel Pitch with 600nits Brightness Front Service Cabinet
Tough Build, Simple Service
  • Anti-Collision Sealed Protection — LEDs are fully encapsulated under epoxy with no exposed beads. Resists moisture, dust, static, and accidental impact. Far more durable than traditional SMD screens in busy public spaces.

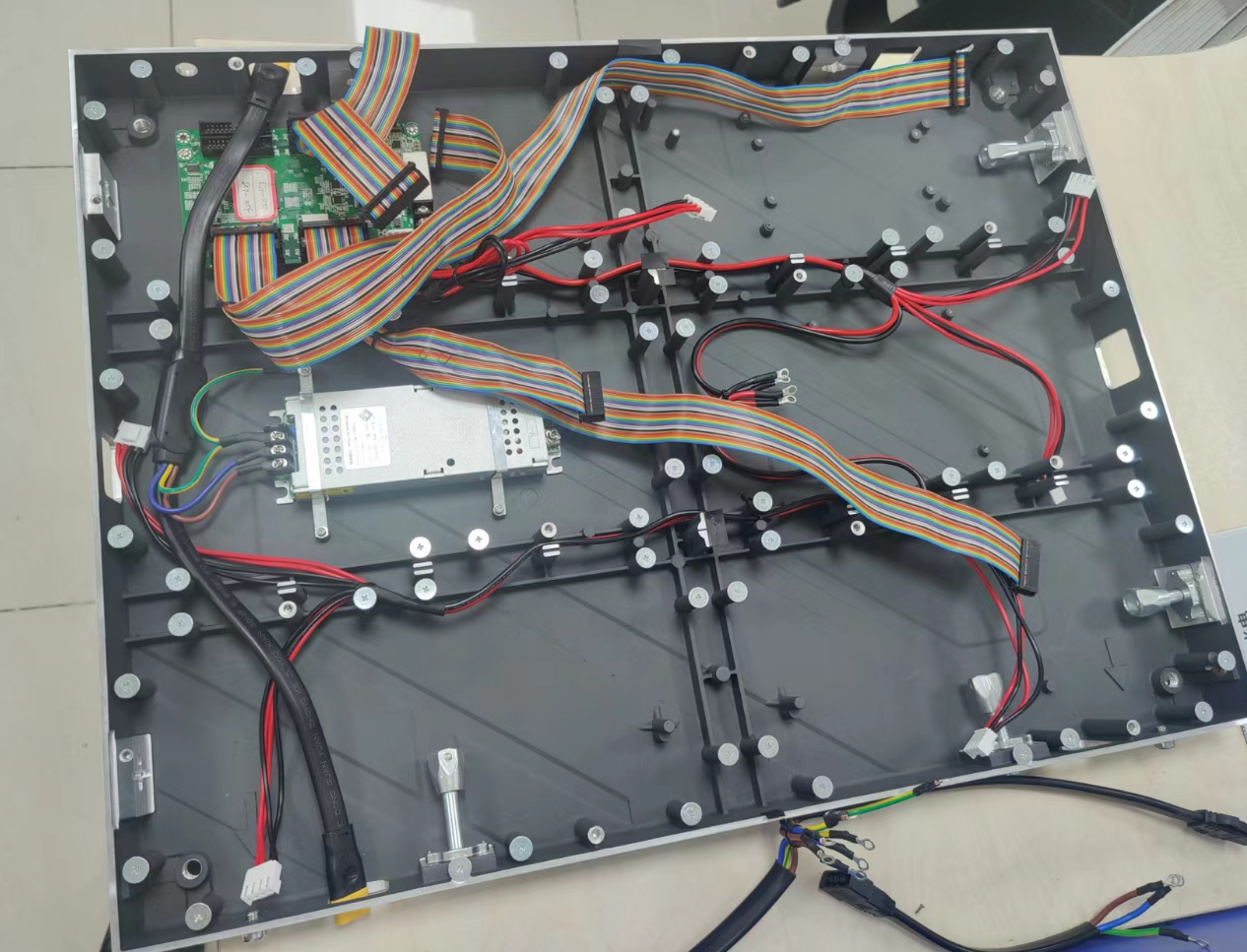

  • Tool-Free Front Service — All components accessible from the front—no rear clearance needed. Wall-mounted installations stay slim. A single module swap takes seconds with no tools, perfect for tight spaces and quick maintenance.
  • Common Anode, Lower Bills — Smart circuit design drives each LED color at its optimal voltage. Just 88W per panel at 600nits—lower power draw means less heat and lower operating costs over the life of the display.
  • 45° Bevel Corner Design — Precisely beveled cabinet edges lock into seamless corners. Build pillar wraps, cubes, and creative 3D shapes with no visible gaps.
  • 4:3 Native, 4K/8K Ready — Each 640*480mm panel uses a perfect 4:3 ratio. Multiple cabinets cascade seamlessly into standard FHD, 4K, or 8K resolutions with zero geometry fuss.
Indoor COB LED Video Wall 1.86mm Pixel Pitch with 600nits Brightness Front Service Cabinet
Where It Performs
Retail Store & Showroom
HDR colors make merchandise stand out. Anti-glare matte surface stays clear under spotlights. IP54 sealed surface handles daily wipe-downs.
Meeting Room & Control Center
Flicker-free for all-day sessions. Fanless, silent operation. Front service means IT can fix issues without taking the screen off the wall.
Commercial Complex
Dust-resistant sealed structure handles busy mall conditions. Non-reflective surface ensures comfortable viewing under complex ambient lighting.
