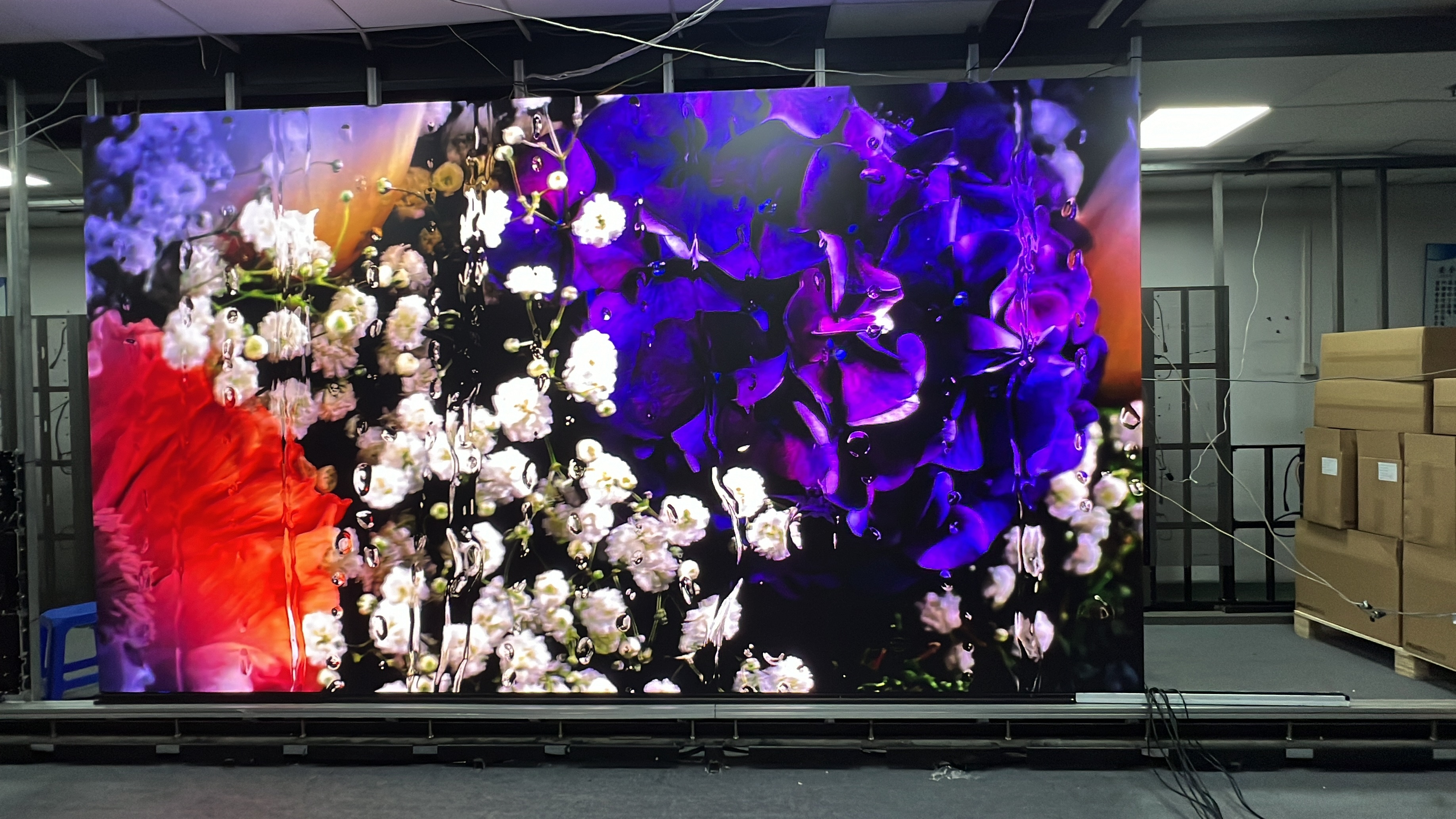

Indoor COB LED Video Wall with 1.25mm Pixel Pitch 600nits Brightness and Front Service Access
Indoor COB LED Video Wall with 1.25mm Pixel Pitch 600nits Brightness and Front Service Access
Indoor COB LED Video Wall with 1.25mm Pixel Pitch 600nits Brightness and Front Service Access
Indoor COB LED Video Wall with 1.25mm Pixel Pitch 600nits Brightness and Front Service Access
Indoor COB LED Video Wall with 1.25mm Pixel Pitch 600nits Brightness and Front Service Access
Indoor COB LED Video Wall with 1.25mm Pixel Pitch 600nits Brightness and Front Service Access
Specifications
Certification :
CCC, EMC CLASS-A, ROHS, CQC
Module Size :
320×160mm
Panel Weight :
7.5kg/panel
Contrast Ratio :
10000:1
Payment Terms :
T/T,Western Union,PayPal
Material :
Die-casting Aluminium
Panel Resolution :
512×384 dots
Supply Ability :
10,000sqm per Month
Place of Origin :
Guangdong, China
Brightness :
600nits
Brand Name :
TBC
Price :
Negotiable
Pixel Pitch :
1.25mm
MOQ :
10sqm
Module Resolution :
256×128 dots
Delivery Time :
25 days
Packaging Details :
Flight Case or Wooden Box
Model Number :
COB P1.25
Panel Size :
640×480×59mm
Description
Indoor COB LED Video Wall P1.25mm 600nits Flip Chip 320x160mm Module Front Service 640x480mm Panel
COB P1.25mm Indoor LED Video Wall featuring flip chip COB technology with 600nits brightness, 3840Hz refresh rate, and 10000:1 contrast ratio. Designed for demanding indoor environments where image clarity and reliability matter most.
Technical Specifications
Specification P1.25
Pixel Pitch 1.25mm
Pixel Density 640,000 px/m²
LED Chip Flip Chip
Module Size (W*H) 320*160mm
Module Resolution 256*128 dots
Surface Treatment Matt COB
Surface Hardness 4H
Panel Size (W*H*D) 640*480*59mm
Panel Weight 7.5 kg / panel
Panel Resolution 512*384 dots
Material Die-casting Aluminium
Circuit Design Common Anode Circuit
Flash Correction Storage Applicable
Brightness 600nits
Refresh Rate 3840Hz
Contrast Ratio 10000:1
Color Temperature 9300K
Viewing Angle H160°, V160°
Input Voltage AC 100~240V 50/60Hz
Max. Power Consumption 88 w/panel
Maintenance Way Front Service
IP Level (PCB Surface) IP54
Lifetime (50% Brightness) 100,000 hours
Operating Temperature -10°C ~ +40°C
Operating Humidity 10%RH ~ 90%RH
Certificate CCC, EMC CLASS-A, ROHS, CQC
Warranty 3 years
Key Advantages
  • Soft Connection Module Design – Flexible PCB connectors replace traditional rigid pin headers between modules. This plug-and-play design simplifies on-site assembly, allows quick module-level replacement without tools, and reduces long-term connection failure from vibration or thermal expansion.
  • Flip Chip COB Technology – Chip-on-board encapsulation protects LEDs from moisture, dust, and physical impact. The matte surface eliminates glare while delivering deep blacks and vivid colors even under bright indoor lighting.
  • 4:3 Native Ratio, 4K/8K Ready – Each 640*480mm panel uses a perfect 4:3 aspect ratio. Multiple panels cascade seamlessly into standard FHD, 4K, or 8K resolutions.
  • Common Anode Circuit – Lower driving voltage reduces power consumption to just 88W per panel at 600nits, cutting operating costs without sacrificing brightness.
  • Front Service Access – All components are accessible from the front, making wall-mounted or tight-space installations easy to maintain without rear clearance.
  • IP54 Surface Protection – The sealed COB surface is water-washable and resists dust buildup, ideal for retail stores, showrooms, and public spaces.
  • Optional 45° Bevel Corner Design – Precisely beveled cabinet edges enable seamless corner joints for pillar wraps, cube installations and creative 3D shapes with no visible gaps.

Indoor COB LED Video Wall with 1.25mm Pixel Pitch 600nits Brightness and Front Service Access

Indoor COB LED Video Wall with 1.25mm Pixel Pitch 600nits Brightness and Front Service Access

Indoor COB LED Video Wall with 1.25mm Pixel Pitch 600nits Brightness and Front Service Access

Applications

Retail & Showroom

High contrast and anti-glare surface showcase products vividly at close viewing distances. IP54 protection handles daily cleaning in high-traffic areas.

Meeting Room & Control Center

3840Hz flicker-free refresh rate and low-glare matte finish reduce eye fatigue during extended use. Fanless design ensures silent operation for conference environments.

Commercial Complex

Dust-resistant sealed structure handles busy mall conditions. Soft anti-dazzle light ensures comfortable viewing under complex ambient lighting.
