P1.86 GOB LED Display with 16 Bit Gray Scale 3840Hz Refresh Rate and Front Access Service for Stage Events
P1.86 GOB LED Display with 16 Bit Gray Scale 3840Hz Refresh Rate and Front Access Service for Stage Events
P1.86 GOB LED Display with 16 Bit Gray Scale 3840Hz Refresh Rate and Front Access Service for Stage Events
P1.86 GOB LED Display with 16 Bit Gray Scale 3840Hz Refresh Rate and Front Access Service for Stage Events
P1.86 GOB LED Display with 16 Bit Gray Scale 3840Hz Refresh Rate and Front Access Service for Stage Events
P1.86 GOB LED Display with 16 Bit Gray Scale 3840Hz Refresh Rate and Front Access Service for Stage Events
Specifications
LED Type :
SMD1212
Warranty :
2 Years
Screen Size :
2560x960mm
Gray Scale :
12-16 bit
Operating System :
NovaStar AD20
Brightness :
600nits
IP Rating :
IP43
Drive Mode :
1/43 Scan
Brand Name :
TBC LED
Price :
USD 2200-3800 / Piece
Packaging Details :
Flight case with foam protection, export-grade wooden crate
Model Number :
GOB P1.86-16B
Color Depth :
16 bit Gray Scale
Maintenance :
Front Access Service
Cabinet Material :
Sheet Metal
MOQ :
1 Piece
Viewing Angle :
160°/160°
Physical Density :
288,906 dots/sqm
Delivery Time :
12-15 days
Module Size :
320x160mm
Supply Ability :
1000 Pieces per Month
Refresh Rate :
3840Hz
Contrast :
10000:1
Payment Terms :
T/T,L/C,PayPal,Western Union
Place of Origin :
China
Pixel Pitch :
P1.86mm
Certification :
CCC, CE, RoHS, FCC, CB, TUV, IEC, BIS
Description
P1.86 GOB LED Display 16 Bit Gray Scale Color Depth 3840Hz Refresh Rate 600nits Front Access Service for Stage Events
Product Overview

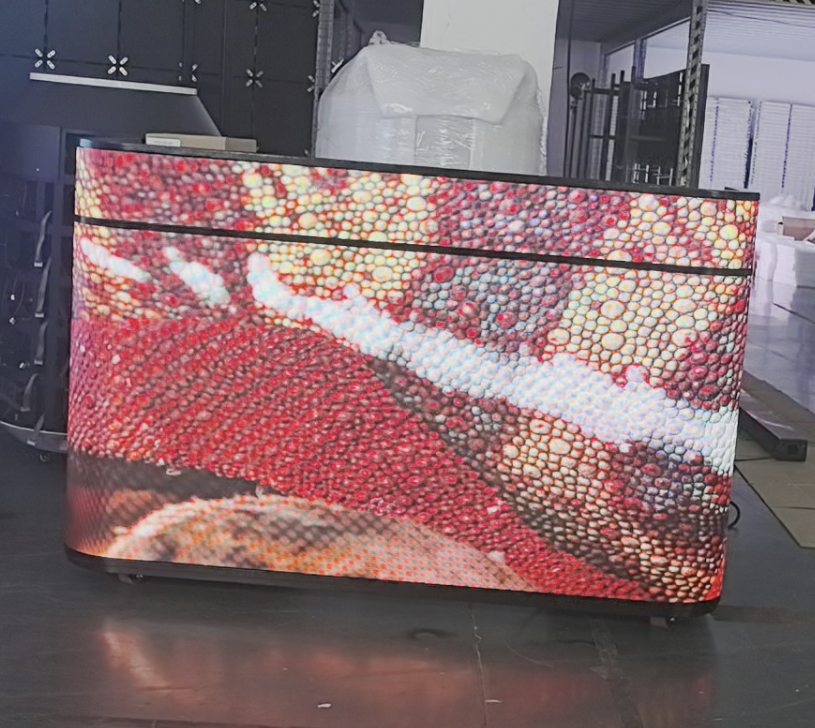

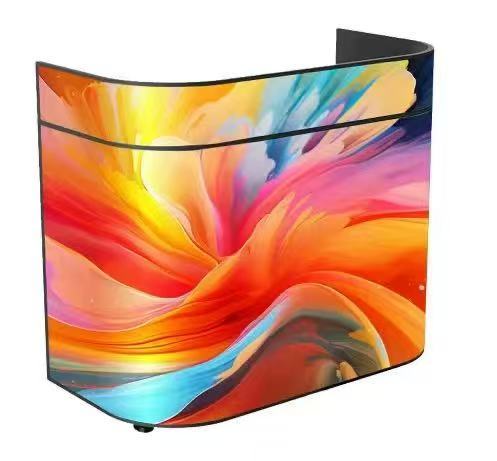

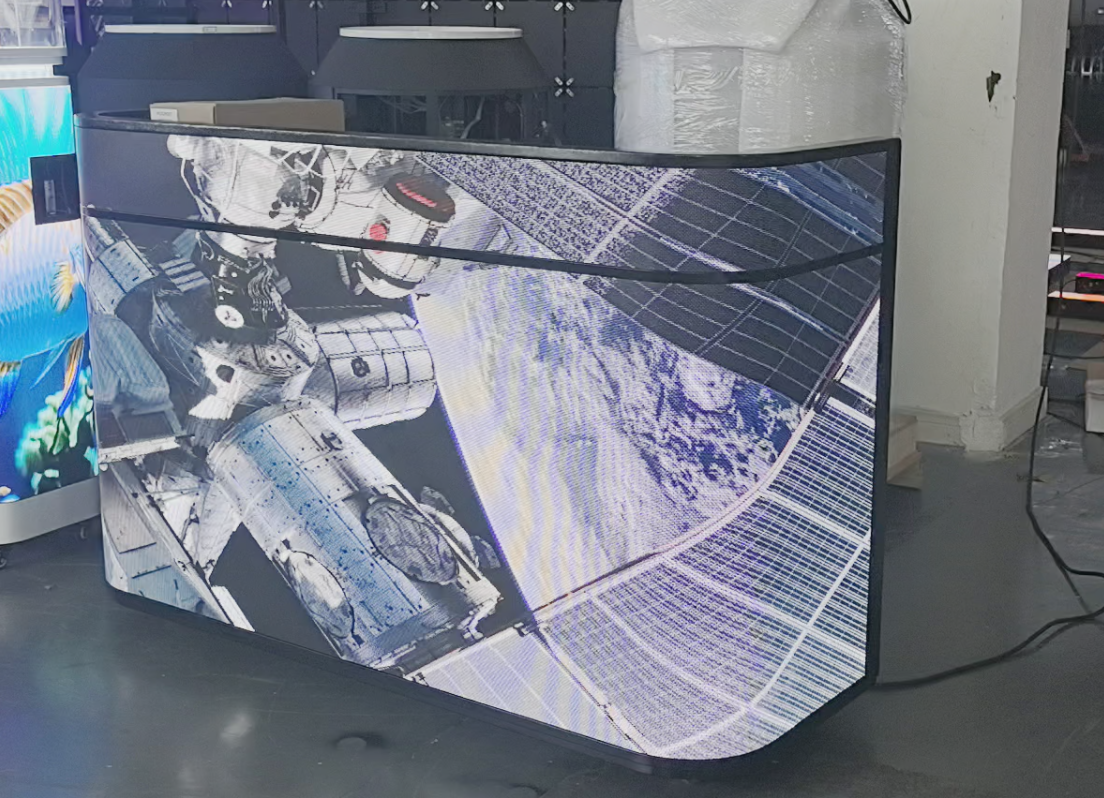

2560×960mm GOB front desk LED display with 16 bit gray scale for rich, smooth color gradation on stage and event backdrops. The P1.86 pixel pitch delivers 288,906 dots/sqm ultra-fine detail, while GOB (Glue On Board) technology seals each module against moisture, dust and impact.

Key Features
  • 16 Bit Gray Scale: High color depth renders smooth gradients without banding for vivid, true-to-life imagery.
  • GOB Protection: Glue On Board encapsulation seals the LED surface for moisture-proof, dust-proof and impact-resistant performance.
  • 3840Hz Flicker-Free Refresh: High refresh rate removes scan lines in photos and videos for broadcast-ready image quality.
  • Front Access Service: Tool-free front maintenance enables wall-hugging installation in compact spaces.
  • Plug & Play: Pre-assembled and fully packaged, controlled by NovaStar AD20 with synchronous and asynchronous playback.
  • 600nits Brightness: Balanced indoor brightness tuned for stage events and conference displays.
Technical Specifications
Model GOB P1.86
Pixel Pitch P1.86mm
LED Type SMD1212
Physical Density 288,906 dots/sqm
Module Dimension 320×160 mm
Display Dimension W2560×H960mm
Maintenance Front Access Service
Cabinet Material Sheet Metal
Brightness 600nits
Color Depth 16 bit Gray Scale
Viewing Angle 160°/160° (V/H)
Contrast 10000:1
Drive Mode 1/43 Scan
Gray Scale 12-16 bit
Refresh Rate 3840 Hz
Max Power Consumption 600 w/m²
Average Power Consumption 200 w/m²
Power Voltage Range AC110-240V, 50/60Hz
Protection Level IP43
Working Temperature -20~50°C
Certifications CCC, CE, RoHS, FCC, CB, TUV, IEC, BIS
Warranty 2 Years

P1.86 GOB LED Display with 16 Bit Gray Scale 3840Hz Refresh Rate and Front Access Service for Stage Events

P1.86 GOB LED Display with 16 Bit Gray Scale 3840Hz Refresh Rate and Front Access Service for Stage Events

P1.86 GOB LED Display with 16 Bit Gray Scale 3840Hz Refresh Rate and Front Access Service for Stage Events

Application Scenarios
  • Corporate Reception Areas & Office Lobbies
  • Retail Stores & Shopping Malls
  • Exhibition Booths & Trade Shows
  • Hotels, Banks & Hospitals
  • Conference Centers & Event Venues
