Matte Black PET Tape With Acrylic Adhesive For Lamination And Protection
Matte Black PET Tape With Acrylic Adhesive For Lamination And Protection
Matte Black PET Tape With Acrylic Adhesive For Lamination And Protection
Matte Black PET Tape With Acrylic Adhesive For Lamination And Protection
Matte Black PET Tape With Acrylic Adhesive For Lamination And Protection
Matte Black PET Tape With Acrylic Adhesive For Lamination And Protection
Specifications
Brand Name :
Sanfeng Win
Model Number :
DTTA100BZ
Certification :
ISO 14001:2015
Place of Origin :
Jiangsu,China
MOQ :
100 rolls
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000 rolls a week
Delivery Time :
7-10 days
Packaging Details :
Heat-seal first,then put them into the carton
Name :
PET Tape
Use :
Remination,Protection,Bonding
Color :
Matte Black
Adhesive :
Acrylic
Tape Thickness :
100μm±8μm
Tape Size :
As to your requirements
Description

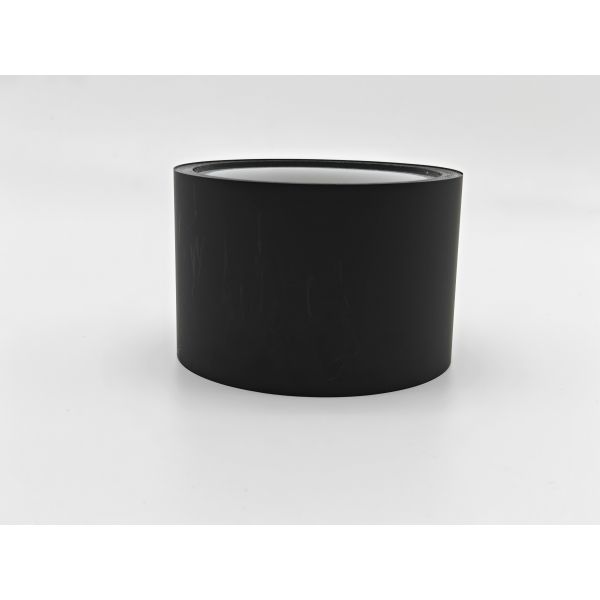

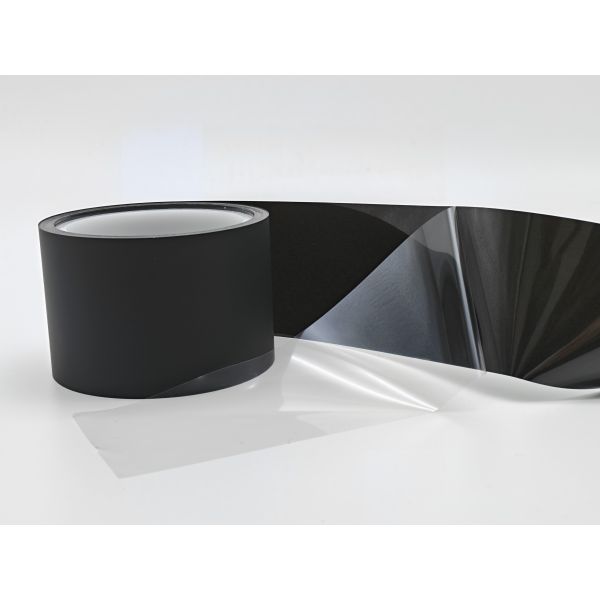

Matte Black PET Tape
Description

DTTA100BZ is a 100µm matte black single-sided tape with a thin PET backing and high-performance acrylic adhesive. It offers excellent identification, shielding, and stable adhesion, ideal for lamination and assembly in electronic components.

Applications
  • Lamination and bonding of artificial graphite sheets
  • Bonding and assembly of iron oxide soft magnetic materials
  • Bonding and fixing of electronic components
  • Surface shielding and identification in electronic devices
  • Lamination and protection of flexible printed circuits
  • Bonding and assembly of lithium-ion battery components
Physical Parameters
Item Specification Standard
Total Thickness 100±8µm ASTM D-3652
Color Matte black Visual inspection
Adhesion Strength >1200g/25mm (180°) ASTM D-3330
Glossiness 2±1 (60° GU) ASTM D523-08
Temperature Resistance -20°C to 100°C -
Backing Material Thin PET with matte black ink layer Visual & Physical Test
Adhesive Type Acrylic adhesive -
Release Liner 25µm transparent PET -

Matte Black PET Tape With Acrylic Adhesive For Lamination And Protection

Matte Black PET Tape With Acrylic Adhesive For Lamination And Protection

Company Introduction

Sanfeng Win New Material (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.

To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.

The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.

FAQ
1. What is the total thickness of DTTA100BZ?

100±8µm, compliant with ASTM D-3652.

2. What is its temperature resistance?

It can withstand temperatures from -20°C to 100°C.

3. What is the adhesion strength?

>1200g/25mm (180° peel), per ASTM D-3330.

4. What is the glossiness of this tape?

2±1 (60° GU), per ASTM D523-08.

5. What materials is DTTA100BZ made of?

It uses a matte black ink layer, transparent PET base layer, acrylic adhesive layer, and PET release liner.

6. What are the standard test conditions?

18-25°C, 55±20%RH, on steel plate, at 300mm/min peel speed and 180° angle.
