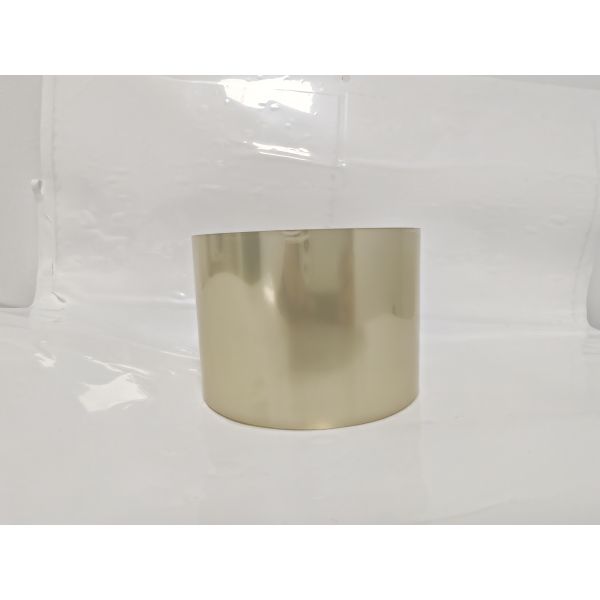

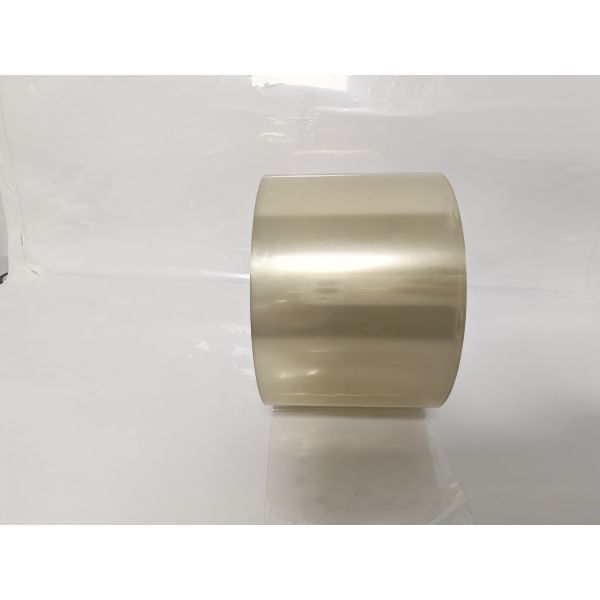

TX7525H+10 is a 100μm high-temperature transparent silicone tape with PET backing. It features reusability, no residue, strong initial adhesion, and 180°C heat resistance, ideal for precision protection and masking.

1. LCD panel surface protection
2. PDA panel anti-scratch protection
3. Machine shell spray masking
4. Silicone rubber fitting assistance
5. Electronic component insulation
6. Precision die-cutting auxiliary masking

Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanyifeng) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.

To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.

The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.

1. What is the total thickness of TX7525H+10 Series?100±5 micrometers, compliant with GB/T7125-2014.
2. What’s the maximum heat resistance temperature?It withstands 180°C for 30 minutes (oven test).
3. Does the tape leave residue after removal?No, it is residue-free and can be re-applied repeatedly.
4. What is the dry coating thickness range?The dry silicone coating thickness is 25±5μm.
5. What is the adhesion strength standard?1000g per 25mm width (180° peel), tested by GB/T279-2014.
6. What base material is the tape made of?It uses PET (polyester film) as the core backing material.
