Specifications
Brand Name :
OEM
Model Number :
DF-PLC-RACK MOUNT
Certification :
ISO, CE RoHS
Place of Origin :
China
MOQ :
1
Price :
USD15-49/pc
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton
Customization :
Yes
Description
Fiber Optic PLC Splitter Rack Mount Singlemode G657A SC APC/UPC for Data Center Telecom FTTx
PLC Splitter Rack Mount Singlemode G657A SC APC/UPC

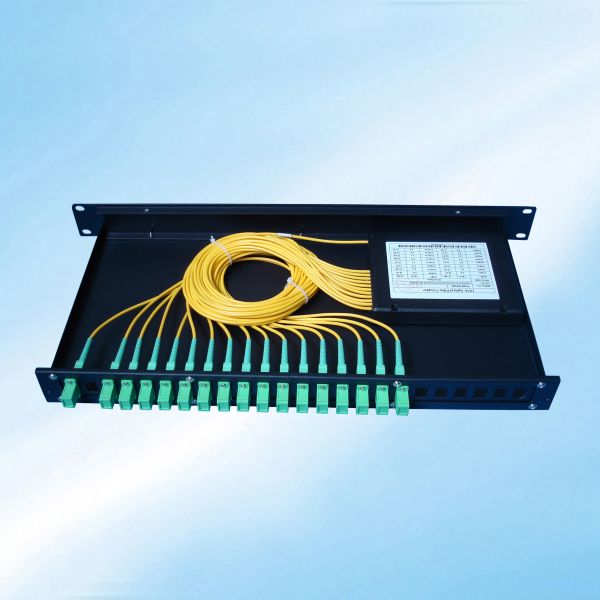

1U Rack mount PLC optical splitter is packaged in a 19-inch rack mount panel. Rack Mount PLC-Planar Lightwave Circuit Splitter is a kind of power splitter based on the integrated quartz baseplate.

Single Mode PLC 1×N and 2×N Splitter divide uniformly optical signals from one or two inputs to multiple outputs, and splitter can be operated in reverse direction to combine multiple signals into fiber or two fibers.

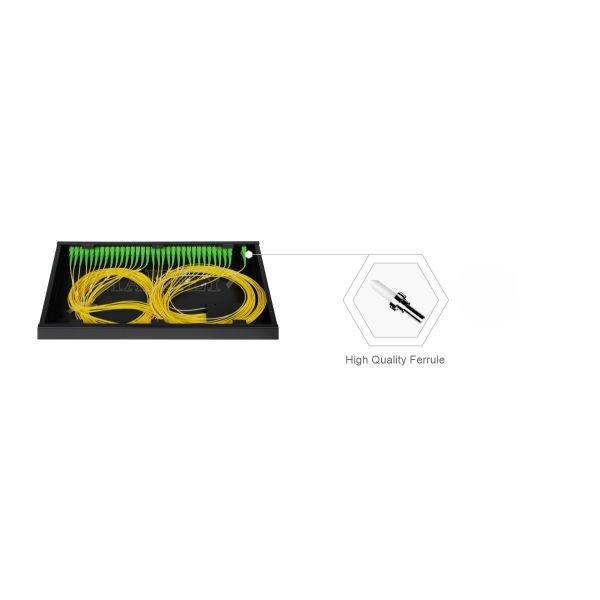

Selected High Quality Ferrule

Available with high quality ferrule, professional polishing technology, precise matching for optical endface to achieve more stable transmission and efficient connection.

Fiber Optic PLC Splitter Rack Mount Singlemode G657A SC APC/UPC for Data Center Telecom FTTx

TAKFLY's PLC optical splitter module has excellent performance parameters. The PLC optical splitter is insensitive to wavelength and has full-band signal transmission from 1260 to 1650 nm.

Application

1U Rack mount PLC optical splitter has the advantages of insensitivity to wavelength, high stability and uniform splitting. It is one of the most important passive devices in optical networks. Widely used in:

  • MAN (metropolitan area network)
  • LAN (local area network)
  • FTTx
Parameter
Item Parameter
Type (1×N) 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64
Max. Insertion Loss (dB) 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3
Max. Uniformity (dB) 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0
Min. Return Loss (dB) 55
Max. PDL (dB) 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5
Type (2×N) 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64
Max. Insertion Loss (dB) 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8
Max. Uniformity (dB) 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0
Min. Return Loss (dB) 55
Max. PDL (dB) 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5
Fiber Type ITU-T G657A1, G657A2 and G652D
Operating Wavelength (nm) 1260~1650
Max. Temperature Stability (dB) 0.5 (Typical 0.3)
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
