Description

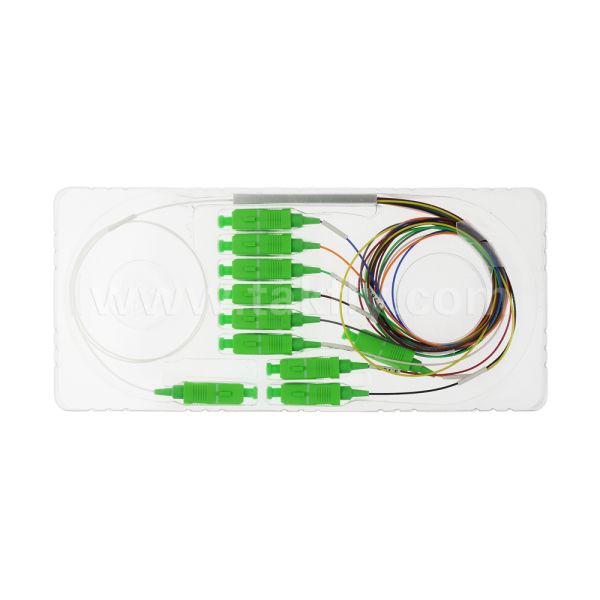

1X9 Mini O.9mm PLC Splitter
Product Overview

This PLC splitter features a 1*9 channel configuration, providing one input evenly split into nine output ports. The compact Mini package uses 0.9mm outer diameter fiber, suitable for high-density fiber distribution equipment and installations with limited space.

Based on planar lightwave circuit technology, it delivers stable splitting uniformity. Operating wavelength range covers 1260nm to 1650nm, compatible with passive optical networks. Insertion loss and uniformity parameters meet IEC 61753-2 standards. Operating temperature range from -40℃ to +85℃ allows deployment in outdoor cabinets or subscriber termination boxes.

Available Options
  • Connector type: None / LC / SC connector
  • Housing size: Customizable upon request
  • Fiber type: G.657A1 / G.652D, etc.
Key Features
  • Broadband Operation Wavelength
  • Low Insertion loss
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • High Reliability and Stability
Product Data
Operating Wavelength(nm)1260-1650Inspected date2025/3/14
P/N1x9-0.9-0.5M-SC/APCS/N25031400002
Fiber typeG657A1Fiber Length(m)>=0.5
Connector TypeSC/APCPackage Dimension(mm)60x7x4
Storage Temperature-40~+85℃Operating Temperature-40~+85℃
Applications
  • Telecommunication sector
  • PON System
  • FTTH / FTTX optical distribution networks
  • CATV signal splitting
  • Video Transmission
  • Passive optical LAN (POL)
  • Fiber distribution frame (ODF) internal connections
  • Data center splitter links
Performance Specifications
Item IL(dB) PDL(dB) RL(dB)
Wavelength(nm) @1310 @1490 @1550 @1310 @1490 @1550 @1310 @1490 @1550
Spec. MAX.16.30 MAX.0.25 >65
Port-70%2.041.771.670.040.010.09PassPassPass
Port-3.75%16.0616.0316.090.060.080.08PassPassPass
Port-3.75%16.1716.1415.610.050.060.06PassPassPass
Port-3.75%15.8115.9315.990.080.040.09PassPassPass
Port-3.75%16.0215.6715.680.060.090.04PassPassPass
Port-3.75%15.9015.9815.940.090.050.05PassPassPass
Port-3.75%15.6415.6815.610.010.070.01PassPassPass
Port-3.75%15.7616.1815.610.080.050.02PassPassPass
Port-3.75%15.6915.8415.790.040.030.02PassPassPass
InputN/AN/A
MAX.16.1716.1816.090.090.090.09N/A
MIN.15.6415.6715.610.010.010.01N/A
Average14.3414.3514.220.060.050.05N/A
Uniformity(s1.0dB)0.530.510.48Directivity(dB)>55
Technical Specifications
ItemParameter
Operating Wavelength(nm)1260 ~ 1650
Fiber TypeITU-T G657A1, G657A2 and G.652D
Max.Temperature Stability(dB)0.5 (Typical 0.3)
Operating Temperature (℃)-40 ~ +85
Storage Temperature (℃)-40 ~ +85
Splitter Performance by Type
Type(1*N) 1*2 1*4 1*8 1*16 1*32 1*64
Max.Insertion Loss(dB) 3.9 7.2 10.3 13.5 16.8 20.3
Max.Uniformity(dB) 0.8 0.8 0.8 1.0 1.5 2.0
Min.Return Loss(dB) 55
Max.PDL(dB) 0.2 0.3 0.3 0.3 0.3 0.5
Type(2*N) 2*2 2*4 2*8 2*16 2*32 2*64
Max.Insertion Loss(dB) 4.2 7.5 10.6 13.9 17.2 20.8
Max.Uniformity(dB) 0.8 1.0 1.2 1.5 1.8 2.0
Min.Return Loss(dB) 55
Max.PDL(dB) 0.2 0.3 0.3 0.3 0.3 0.5

Note: All measurements are made at room temperature, and connectors not included.
