Specifications
Place of Origin :
China
Price :
USD2-32/pc
Delivery Time :
5-8 working days
Model Number :
DF-PLC-ABS-1xN
Customization :
Yes
Certification :
ISO, CE RoHS
Packaging Details :
Carton
Brand Name :
OEM
Payment Terms :
T/T, Western Union
MOQ :
1
Supply Ability :
50000pcs per month
Description

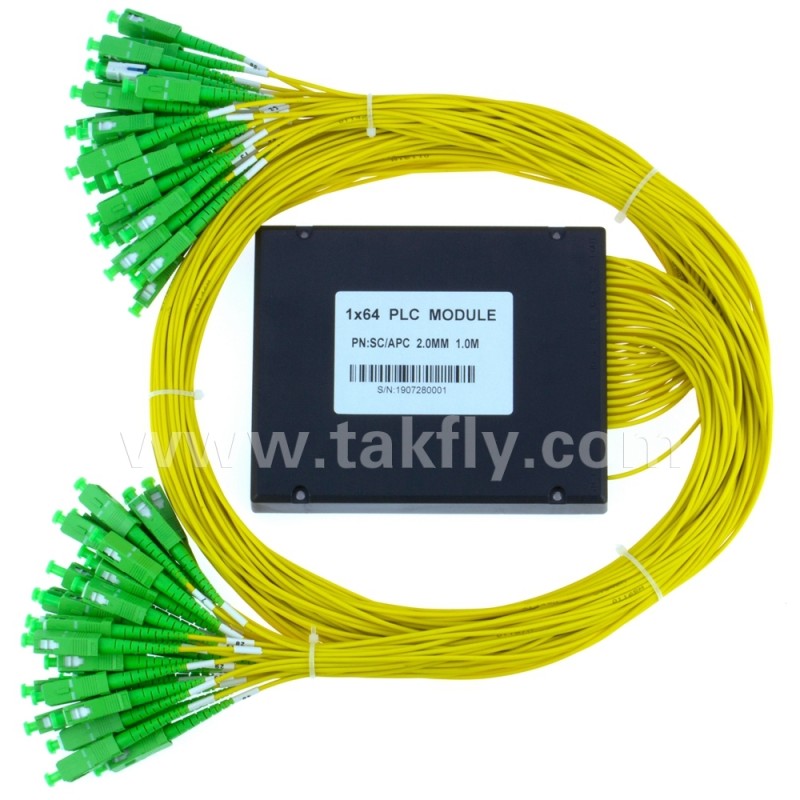

Fiber Optic PLC Splitter ABS box 1xN SC APC/UPC for Fttx Telecom Data Center
PLC Splitter ABS box 1xN SC APC/UPC

PLC splitter is an optical power equalization product based on quartz substrate material and planar optical waveguide technology. It is mainly used for optical signal coupling and distribution in passive optical network (PON) systems and is one of the most important passive components in optical networks.

TAKFLY provides PLC optical splitters in multiple configurations including 1xN, 2xN, and others to meet diverse customer requirements.

Selected High Quality Ferrule

Available with high quality ferrule, professional polishing technology, and precise optical endface matching to achieve stable transmission and efficient connection.

TAKFLY's PLC optical splitter Mini steel tube delivers excellent performance parameters. The PLC optical splitter is insensitive to wavelength and supports full-band signal transmission from 1260 to 1650 nm.

Application

PLC optical splitters offer wavelength insensitivity, high stability, and uniform splitting characteristics. They are among the most important passive devices in optical networks and are widely used in metropolitan area networks (MAN), local area networks (LAN), FTTx, and other applications.

Multiple Types Optional

TAKFLY provides a full range of PLC optical splitter ABS box configurations with customization options available.

PLC Splitter ABS box 1xN SC APC/UPC Fiber Optic for Fttx Telecom Data Center
Technical Parameters
Item Parameter
Type (1*N) 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64
Max. Insertion Loss (dB) 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3
Max. Uniformity (dB) 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0
Min. Return Loss (dB) 55
Max. PDL (dB) 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5
Type (2*N) 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64
Max. Insertion Loss (dB) 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8
Max. Uniformity (dB) 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0
Min. Return Loss (dB) 55
Max. PDL (dB) 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5
Fiber Type ITU-T G657A1, G657A2 and G652D
Operating Wavelength (nm) 1260~1650
Max. Temperature Stability (dB) 0.5 (Typical 0.3)
Operating Temperature (℃) -40 ~ +85
Storage Temperature (℃) -40 ~ +85
