Description

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTxcommunication network system. The fiber splicing, spliting, distribution can be done in this box, and meanwhile itprovides solid protection and management for the FTTx network building.

• Total enclosed structure;
• Material: PC, wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP68;
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution..etc all in one,

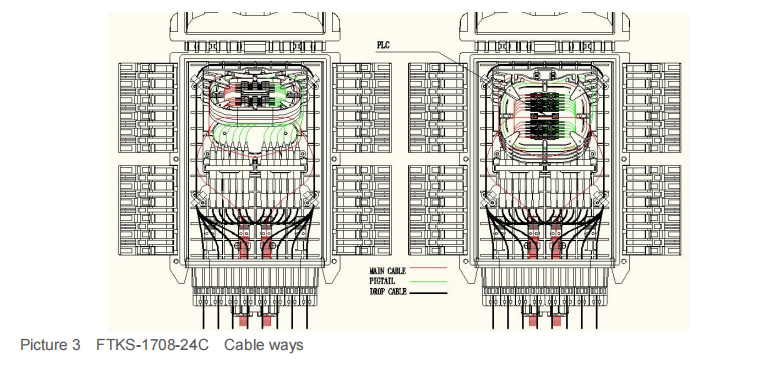

• Cable, pigtails, patch cords are running through own path without disturbing each other, cassette typeSC/LC/PLC adaptor installation, easy maintenance;
• Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenanceand installation;
• Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdooruses.

1.Environmental requirement
Working temperature:-40℃~+85℃
Relative humidity:s85%(+30℃)
Atmospheric pressure:70KPa~106Kpa

2.Main technical datasheet
Insertion loss: s0.2dB
UPC return loss:250dB
APC return loss:260dB
Life of insertion and extraction:>1000 times

3. Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2MQ/500V (DC):IR>2MQ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V (DC) /min, no puncture,no flashover: U>3000V

Product Pictures

• With more than 25 years manufacturing experience in Fiber optic products
• More than 450 assembly workers with 3 years experience
• More than 10 R&D Engineers
• 16 Sets Germany imported Injection Machine and 16 Production Lines
• More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
• OEM Brand is acceptable
• Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.

• Spot check the raw material incoming inspection before production
• Fully check after every individual process finished
• Fully check production half done
• Fully check the finished products before packing
• Spot check before shipping

• Samples: 1-3 working days
• Mass Production Order: 3-7 working days
• Packaging: Plastic Bag, Carton and Pallet are available according to your request
