DIN-AL Industrial DIN-Rail Mounted Fiber Optic Splice Terminal Box
DIN-AL Industrial DIN-Rail Mounted Fiber Optic Splice Terminal Box
Specifications
Adapter port :
12 SC simplex
Model :
DIN-AL
Cable port :
4 ports
Splicing capacity :
Max. 24 fibers
Fiber Brand :
Corning, YOFC, OFS, Draka
Product Name :
DIN-AL Industrial DIN-Rail Mounted Fiber Optic Splice Terminal Box
Dimension :
133x 136.6x35mm
Material :
Aluminum
Brand Name :
DF/OEM/Nuetral
Model Number :
DIN-AL Industrial DIN-Rail Mounted Fiber Optic Splice Terminal Box
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union,T/T,/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Description
DIN-AL Industrial DIN-Rail Mounted Fiber Optic Splice Terminal Box

The DIN-AL is a DIN rail mounted fiber optic terminal box designed for fiber connection and distribution. Constructed from aluminum with an internal plastic splice tray, it offers lightweight performance and excellent functionality.

DIN-AL Fiber Splice Terminal Box Applications
  • DIN rail mounted installations
DIN-AL Fiber Splice Terminal Box Features
  • Reasonable design with aluminum construction and lightweight properties
  • Electrostatic powder painting available in grey or black colors
  • ABS plastic blue splice tray with rotatable design and compact structure
  • Maximum 24 fibers capacity
  • Compatible with FC, ST, LC, SC, and other adapter ports
  • Designed for DIN rail mounted applications
DIN-AL Fiber Splice Terminal Box Specifications
Model Dimension Material Adapter Port Splicing Capacity Cable Port Application
DIN-AL 133×136.6×35mm Aluminum 12 SC simplex Max. 24 fibers 4 ports DIN rail mounted
DIN-AL Fiber Splice Terminal Box Accessories
Item Name Specification Unit Quantity
1 Heat shrinkable protection sleeves 45×2.6×1.2mm pcs As per using capacity
2 Cable tie 3×120mm white pcs 2

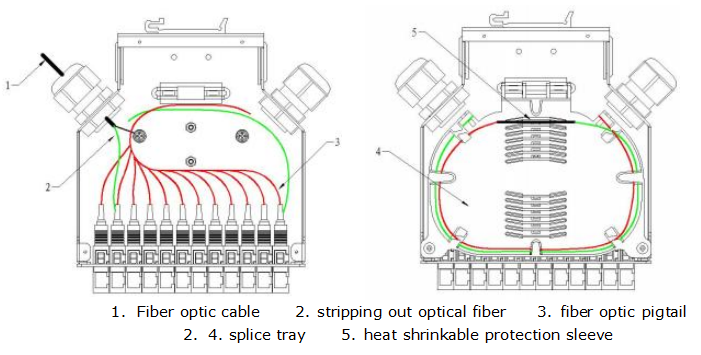

Cable Management Drawings
DIN-AL Industrial DIN-Rail Mounted Fiber Optic Splice Terminal Box

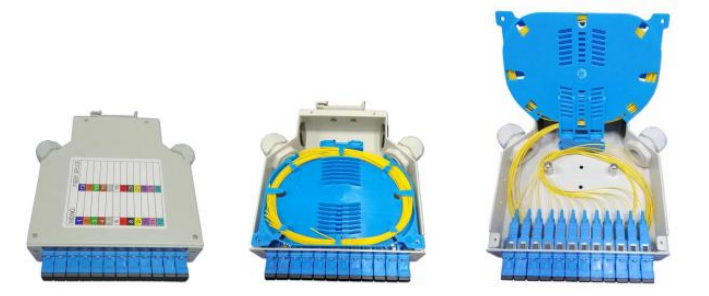

DIN-AL Fiber Splice Terminal Box Image
DIN-AL Industrial DIN-Rail Mounted Fiber Optic Splice Terminal Box
Why Choose TAKFLY?
  • More than 26+ years manufacturing experience in fiber optic products
  • 450+ assembly workers with 3+ years experience
  • 10+ R&D Engineers dedicated to innovation
  • 16 Germany imported Injection Machines and production lines
  • 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
  • Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
  • OEM branding accepted
  • Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
  • Raw material spot checking before production
  • Full inspection after every individual process
  • Comprehensive half-done production checks
  • Complete finished product inspection before packing
  • Pre-shipping spot checks
Delivery Information
  • Samples: 1-3 working days
  • Mass Production Orders: 3-7 working days
  • Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
A6: We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can manufacture products based on your samples or technical drawings.

If you're interested in our products or have any questions, feel free to contact us at any time!
