Fiber Optic Pre-Terminated Outlet Kit (PTO) For Fttx Field Network Fast and Easy to Install
Fiber Optic Pre-Terminated Outlet Kit (PTO) For Fttx Field Network Fast and Easy to Install
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
TK-PC-48F-SC-OS2-50M
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union,T/T,MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
Fiber Optic, Pre-Terminated Outlet Kit (PTO)
Fiber Type :
G657A2
Mode field diameter :
1310/1550
Cladding diameter :
125.0±0.7
Coating diameter :
242 ± 7
Attenuation Coefficient :
<=0.35
Proof stress level :
≥100
Optical Fiber Fiber count :
1/2/4Natural color/Red Blue Green Yellow
Subunit Material :
LSZH
Strength Member Material :
Aramid yarn
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
Fiber Optic Pre-Terminated Outlet Kit (PTO) For Fttx Field Network Fast and Easy to Install
Fiber Optic Pre-Terminated Outlet Kit Overview

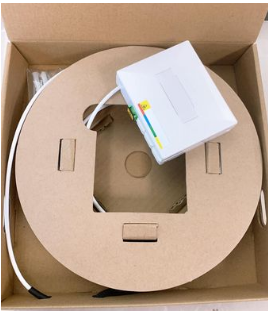

The Pre-Terminated Outlet Kit (PTO) is engineered for rapid and straightforward installation in Fiber to the Home (FTTH) and Fiber to the Business (FTTB) deployments. This comprehensive kit includes a low-profile fiber optic outlet box pre-loaded with adapters and a pre-terminated cable, conveniently packaged with a cable spool inside a protective carton.

With the PTO system, installing the final drop cable and fiber optic outlet becomes an exceptionally simple and efficient process. Installers can quickly remove the spool-loaded cable from the carton and mount the pre-terminated outlet directly to the wall using screws, without needing to open the outlet and disturb the internal fiber terminations. Alternatively, the PTO can be easily snapped onto a standard DIN rail.

PTO installation eliminates the requirement for specialized tools or technical expertise, removing the need for on-site termination or splicing. This results in significant reductions in installation time, cost, and failure rates per customer deployment.

Fiber Optic Pre-Terminated Outlet Kit Features
  • SC or LC connectors with shuttered adapters
  • Available in UPC and APC end face finishes
  • Singlemode G657A2 fiber (others available upon request)
  • Fast tool-less installation
  • 4mm indoor LSZH cable (others available upon request)
  • Multiple cable length options
  • 1, 2, or 4 fiber configurations
  • Wide operating temperature range
  • RoHS compliant
  • Optical cable meets CPR Dca compliance standards
Fiber Optic Pre-Terminated Outlet Kit Specifications
Item Unit Specification
G.657A2 Mode field diameter 1310nm 8.6 ± 0.4 mm
G.657A2 Mode field diameter 1550nm 9.6 ± 0.5 mm
Cladding diameter mm 125.0 ± 0.7
Cladding non-circularity % ≤ 0.8
Core concentricity error mm ≤ 0.5
Coating diameter mm 242 ± 7
Coating/cladding concentricity error mm ≤ 12
Cable cut-off wavelength nm ≤ 1260
Attenuation Coefficient 1310nm ≤ 0.35 dB/km
Attenuation Coefficient 1550nm ≤ 0.21 dB/km
Macro-bend loss (1 turn, 10mm radius) 1550nm ≤ 0.75 dB/km
Macro-bend loss (1 turn, 10mm radius) 1625nm ≤ 1.5 dB/km
Proof stress level kpsi ≥ 100

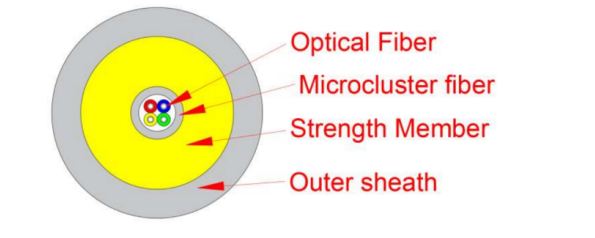

Cable Structure
Items Descriptions 1 Fiber 2 Fiber 4 Fiber
Optical Fiber Fiber count 1 2 4
Optical Fiber Color Natural color Red Blue Green Yellow
Subunit Color Red Red / Blue Red
Subunit Material LSZH
Subunit Diameter 1.0mm Micro cluster fiber 1.1mm Micro cluster fiber 1.1mm Micro cluster fiber
Strength Member Material Aramid yarn
Sheath Material LSZH Anti-UV
Sheath Color White
Sheath Diameter 4.0±0.2mm
Fiber Optic Pre-Terminated Outlet Kit Images
Fiber Optic Pre-Terminated Outlet Kit (PTO) For Fttx Field Network Fast and Easy to Install Fiber Optic Pre-Terminated Outlet Kit (PTO) For Fttx Field Network Fast and Easy to Install
Mechanical and Environmental Characteristics
Items Descriptions
Tensile Strength Short-term: 200N, Long-term: 100N
Crush Resistance Short-term: 400N/100mm, Long-term: 200N/100mm
Bending Radius Dynamic: ≥20D, Static: ≥10D
Temperature Range -20℃ to +70℃
Technical Data for Outlet
Description Value
Dimensions (H x W x D) 83 x 100 x 30 mm
Adapter type SC simplex, shuttered
Fiber capacity 4 fiber
Connector IL 0.30 dB
Connector RL 60 dB (APC), 50 dB (UPC)
Why Choose TAKFLY?
  • Over 26+ years of manufacturing experience in fiber optic products
  • More than 450 assembly workers with 3+ years of experience
  • 10+ dedicated R&D Engineers
  • 16 sets of Germany imported Injection Machines and 16 Production Lines
  • 30+ sets of Testing Machines including OTDR, 3D, VFL, IL & RL test instruments, tension strength testers, crush resistance testers, power meter testers, and light checkers
  • OEM branding available
  • Active participation in major industry exhibitions including OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, and Global Source Electronic Exhibition
Quality Control
  • Raw material incoming inspection with spot checks before production
  • Comprehensive inspection after completion of every individual process
  • Full inspection of production half-done stages
  • Complete finished product inspection before packaging
  • Final spot checks before shipping
Delivery Information
  • Samples: 1-3 working days
  • Mass Production Orders: 3-7 working days
  • Packaging: Plastic bags, cartons, and pallets available according to customer requirements
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Certainly, our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing improvements for future production.
Q6: What is your terms of packing?
A6: Standard packaging includes blister boxes and cartons. We also accept custom packaging specifications from customers.
Q7: What is your terms of payment?
A7: T/T 30% deposit, with 70% balance due before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
A8: Available delivery terms include EXW, FOB, CFR, CIF, DDU.
Q9: How about your delivery time?
A9: Generally, delivery takes 5-7 working days after receiving advance payment. Specific timing depends on product types and order quantities.
Q10: Can you produce according to the samples?
A10: Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
