MPO-CS Breakout Fiber Optic Patch Cord PVC/LSZH SM/MM
MPO-CS Breakout Fiber Optic Patch Cord PVC/LSZH SM/MM
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
MPO-CS Breakout Fiber Optic Patch Cord
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China, Shenzhen
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union, T/T, MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
MPO-CS Breakout Fiber Optic Patch Cord
End face type :
UPC and APC; PC and APC
Fiber type :
SM（G652、G655、G657）；MM（OM1-OM5）
Cable Diameter :
2.0、3.0 or customized (Simplex/duplex)
Insertion loss :
≤ 0.3 dB
Return loss :
UPC SM≥50dB 、APC SM≥ 60 dB、 PC MM ≥ 35 dB
Repeatability :
≤ 0.1
wavelength :
SM:1310/1550 MM:850/1300
Operating Temperature :
-20℃~70℃
Storage Temperature :
-40℃~80℃
Outer Sheath Material :
PVC、LSZH
Bending radius（Static/Dynamic） :
10D/20D
Length :
Customized
Fiber Brand :
Corning, YOFC, OFS, Draka
Description
MPO-CS Breakout Fiber Optic Patch Cord PVC/LSZH SM/MM
MPO-CS Patch Cord Description
MPO-CS breakout patch cord generally consists of four components: main cable, breakout cable, branching device and connector. And the multi-core main cable is convenient for cabling management and not easy be entangled, which make it an ideal product for optical cabling in high-density environment.
MPO-CS Patch Cord Applications
  • Asynchronous Transmission Mode(ATM)
  • Gigabit Ethernet
  • Active Deviced/Transceiver Interface
  • CATV, Video and Multimedia
  • Premise Installations
  • Telecommunication Networks
  • Parallel optical interconnect between PC Cards and patch panels
  • Industrial & Military
  • Interconnection for O/E modules
  • Optical Switch interframe connections
  • Meet various requirements of market and clients
MPO-CS Patch Cord Features
  • Precision molded MT ferrule
  • High precision guide pins for exact alignment
  • Compact design, up to 4,8,12,24 fibers
  • IEC 61754-7 Compliant
  • EIA/TIA-604-5 Compliant
MPO-CS Patch Cord Specifications
End face type
UPC and APC; PC and APC
Fiber type SM (G652,G655,G657); MM (OM1-OM5)
Cable Diameter 2.0,3.0 or customized (Simplex/duplex)
Insertion loss ≤ 0.3 dB
Return loss UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB
Repeatability ≤ 0.1
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Tensile strength >70N
Operating Temperature -20℃~70℃
Storage Temperature -40℃~80℃
Outer Sheath Material PVC, LSZH, TPU
Bending radius (Static/Dynamic) 10D/20D
Length Customized

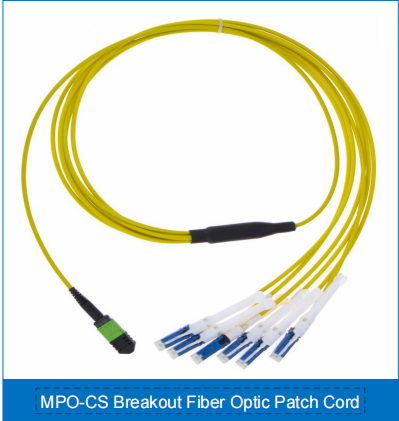

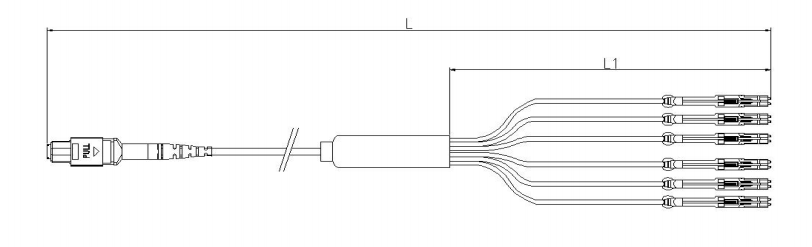

MPO-CS Patch Cord Picture

MPO-CS Breakout Fiber Optic Patch Cord PVC/LSZH SM/MM
MPO-CS Breakout Fiber Optic Patch Cord PVC/LSZH SM/MM
Why choose TAKFLY?
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
