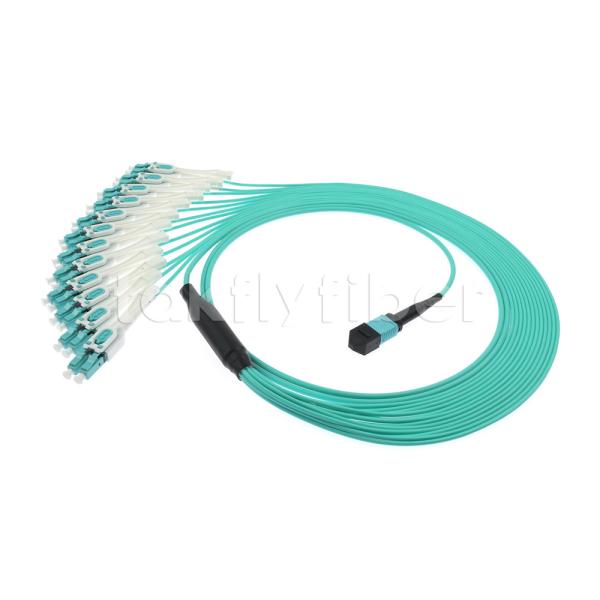

24 Cores Fiber Optic Patch Cord MPO MTP Cable 12LC DX OM3 Fanout Patch Cord for LANs and WANs
24 Cores Fiber Optic Patch Cord MPO MTP Cable 12LC DX OM3 Fanout Patch Cord for LANs and WANs
24 Cores Fiber Optic Patch Cord MPO MTP Cable 12LC DX OM3 Fanout Patch Cord for LANs and WANs
24 Cores Fiber Optic Patch Cord MPO MTP Cable 12LC DX OM3 Fanout Patch Cord for LANs and WANs
24 Cores Fiber Optic Patch Cord MPO MTP Cable 12LC DX OM3 Fanout Patch Cord for LANs and WANs
24 Cores Fiber Optic Patch Cord MPO MTP Cable 12LC DX OM3 Fanout Patch Cord for LANs and WANs
Specifications
Packaged Weight :
3.3KG
Connector :
MPO/MTP-LC/SC
Aadpter Color :
Beige / Blue / Green /Auqa / purple
Cable :
3.0mm/4.5mm Diameter
Connector A :
MPO / MTP (Male or Female)
Housing Color :
Aqua (Singlemode), Beige (Multimode)
Size :
180 x 90 x 30 (mm)
Adapter :
Beige / Blue / Green /Auqa / purple
Hs Code :
854470000
Sleeve :
Zirconia, Nickel
Storage Temperature :
-40°C to +85°C
Fiber Counts :
24F
Capacity :
12core
Color :
Yellow or customized
Brand Name :
Takfly/OEM
Model Number :
Tk-MPO/MTP-005
Certification :
CE RoHS
Place of Origin :
Guangdong, SHENZHEN
MOQ :
1pc
Price :
USD1-100
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50000pcs per month
Delivery Time :
5-7 working days
Packaging Details :
plastic bag
Height :
1U
Description
Fiber Optic MPO MTP Cable 24 Cores to 12LC DX Om3 Fanout Patch Cord
MPO MTP Cable, MPO 24 Cores to 12LC DX Om3 Fanout MPO Fiber Optic Patch Cord
Product Description
MTP/MPO cables are used to interconnect cassettes, panels, or fan outs. They are available in standard 8, 12, 24, or 48 core versions using a compact and rugged microcables structure. The compact cable design optimizes cableway use and improves airflow. These MPO/MTP cables are built with the highest quality components, with low loss elite versions available featuring low insertion loss for demanding high-speed networks where power budgets are critical.
Product Features
  • Low insertion loss (≤ 0.20dB) and high return loss (≥ 55 dB)
  • Free-floating ceramic ferrule
  • UL-rated plastic housing and boot
  • Boots available in a variety of colors
  • High precision alignment connector
Applications
  • Local Area Networks (LANs) and Wide Area Networks (WANs)
  • Fiber Optic CATV, FTTH, FTTB, FTTP etc
  • Fiber Optic telecommunication systems
  • Transmission Mode (ATM)
  • Fiber Optic Backbone
  • Martial Instrumentation
Technical Specifications
Connector A LC, SC, ST, FC, etc. Connector B MPO/MTP
Fiber Mode SM (G652, G655, G657); MM (OM1-OM5) 50/125μm Minimum Bend Radius 7.5mm
Insertion Loss Standard: ≤0.35/0.7 (Typical/Max)
Low Loss: ≤0.2/0.35 (Typical/Max)		 Return Loss SM: APC: 60dB
MM: PC: 25dB
Attenuation at 850nm ≤2.3dB/km Attenuation at 1300nm ≤0.6dB/km
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Operating Temperature -10°C to +70°C Storage Temperature -40°C to +85°C
How to Order
When ordering optical fiber patch cords, please specify the following details:
  • Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
  • Mode type: single mode (UPC and APC) / multi mode (PC)
  • Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
  • Coating material: PVC / LSZH
  • Fiber count: simple / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core, etc.
  • Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
  • Patch cord length: according to your requirements
  • MPO/MTP connector specifications: method (A type / B type / C type), male or female, fiber count (4/8/12/16/24/32 fiber)
  • Insertion/Return Loss: Standard/Low Loss
  • Type: Pigtail/Patch Cord/LGX Box/Patch Panel
24 Cores Fiber Optic Patch Cord MPO MTP Cable 12LC DX OM3 Fanout Patch Cord for LANs and WANs
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are a manufacturer and FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
Q: What's your MOQ?
A: MOQ can be 1 piece, but the price is not competitive. Larger quantities receive more competitive pricing.
Q: Can you quote FOB price?
A: Yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For large quantities we deliver by sea. We provide quotes with freight and lead time based on your detailed requirements and quantity.
Q: How is your quality?
A: Our production follows IEC and European standards with CE, ISO, RoHS, CPR, and ANATEL certifications. All products are 100% tested before delivery.
Q: What's your lead time?
A: Lead time depends on quantity and products. For fiber optic patch cords, lead time is 2-3 working days for up to 5000 pieces. We keep regular products in stock and can handle urgent orders.
Q: What's your warranty?
A: We offer 1-year warranty for patch cords from delivery date for non-artificial damage. For artificial damage, we provide free repair with freight paid by customer.
Q: What's your payment term?
A: T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit in advance, 50% balance paid before delivery.
