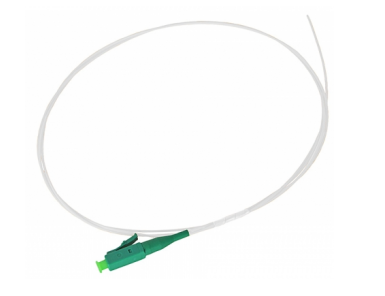

LC Simplex 0.9mm Fiber Optic Pigtail APC SM G657A1
LC Simplex 0.9mm Fiber Optic Pigtail APC SM G657A1
Specifications
Brand Name :
DF/OEM/Nuetral
Model Number :
TK-SC/UPC 0.9mm
Certification :
CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable denpend on QTY
Payment Terms :
Western Union,T/T,MoneyGram/Paypal
Supply Ability :
1000PCS/Day
Delivery Time :
5-9 working days depends on QTY
Packaging Details :
Blister box+Carton
Product Name :
LC Simplex 0.9mm Fiber Optic Pigtail
Intertion Loss :
≤0.3dB
Return Loss :
APC SM≥ 60 dB
Fiber Type :
SM G657A1
Diameter :
0.9mm
Connector Type :
LC/APC
Jacket Material :
LSZH/PVC/PU
Color :
Orange or Customized
Wavelength :
1310nm, 850nm
Length :
30cm or Customized
Operation Temperature :
-20℃~70℃
Fiber Diameter :
50/125
Grade :
Telecom Grade
Certificate :
CE/ROHS/REACH
Description

LC Simplex 0.9mm Fiber Optic Pigtail APC SM G657A1

Application

•CATV
•Telecommunication Networks
•Active device termination
•Local area networks(LANS)
•Data processing networks
•Test equipment
•Wide area networks(WANS)

Features:

•Low insertion loss and High reflection loss
•Good exchange ability
•Good durability
•High temperature stability
•Standard:Telcordia GR-326-CORE

Specifications:

End face type

APC

Fiber type

SM G657A1

Cable Diameter

0.9mm

Insertion loss

≤ 0.3 dB

Return loss

APC SM≥60dB

Repeatability

≤ 0.1

Durability

≤ 0.2dB

Interchangeability

≤ 0.2dB

Tensile strength

0.9mm cable>5N

Operating Temperature

-20℃~70℃

Storage Temperature

-40℃~80℃

Outer Sheath Material

Hytrel

Bending radius(Static/Dynamic)

10D/20D

Length

30cm or Customized

Packing

12PCS 0.9mm color pigtails in one set

Why choose TAKFLY--Advantages as follows:

Professional manufacturer:

  • With more than 25 years manufacturing experience in Fiber optic products;
  • More than 500 assembly workers with 5 years experienced;
  • More than 10 R&D Engineers;
  • 16 Sets Germany imported Injection Machine and 16 Production Lines;
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, ect.
  • OEM Brand is acceptable.
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Source Electronic Exhibition,etc.

Quality Control:

  • Spot check the raw material incoming inspection before production;
  • Fully check after every individual process finished;
  • Fully check production half done;
  • Fully check the finished products before packing;
  • Spot check before shipping;

Delivery:

  • Samples: 1-3 working days.
  • Mass Production Order: 3-7 working days.
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request.

If you’re interested in our products or have any doubt, feel free to contact me at any time!
