Specifications
Brand Name :
Takfly
Model Number :
SM G657A1
Place of Origin :
China
MOQ :
1
Price :
US$0.5-US$100
Payment Terms :
T/T
Supply Ability :
30000/Mon
Delivery Time :
3-12 work days
Description
FTTH Drop Cable Patchcord G657A1 LZOH SC/APC-SC/APC, 3.0*2.0mm, Non Messenger Wire
Product Overview

This Fast Connect drop cable features an anti-vibration design that enables plug-and-play installation without splicing. This design facilitates rapid deployment, reduces installation time, and ensures high network reliability and durability.

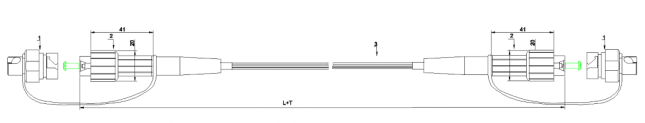

Outline Drawing
FTTH Drop Cable Patchcord G657A1 LZOH SC/APC-SC/APC, 3.0*2.0mm, Non Messenger Wire
  • 1. Dust cap
  • 2. Connector SC/APC SM
  • 3. SM G657A1 FTTH Drop Cable, Gray, LSZH cable

All dimensions are in mm

Fiber Optic Attributes
  • Mode field diameter: 8.6μm ± 0.4μm at 1310nm
  • Cladding diameter: 125.0μm ± 0.7μm
  • Coating diameter: 245μm ± 10μm
  • Coating-cladding concentricity error: ≤ 12.5μm
  • Cut-off wavelength: ≤ 1260nm
  • Attenuation coefficient: 1310 ≤ 0.4dB, 1550 ≤ 0.3dB
FTTH Cable Specifications
  • Number of fiber: 1 core
  • Fiber type: G657A1
  • Strength member material: FRP
  • Diameter: 0.4mm
Outer Sheath
  • Material: LSZH Black
  • Cable size: 3.0 × 2.0mm
Connector Features & Benefits
  • Fast deployment, plug and play
  • IP67 protection
  • Anti-vibration design
  • Ferrule protection and orientation design
  • Easy to install and uninstall
Connector Test Specifications
Item Specifications
Type SC/APC (1310)
Insertion Loss ≤ 0.3 dB + 0.36 dB/km*L(km) @ 1310nm
≤ 0.3 dB + 0.25 dB/km*L(km) @ 1550nm
Return Loss ≥ 60dB
Endface IEC 61300-3-35
Durability (1000 Mating) 0.2dB Max. increase
Installation Temperature -10℃ to +60℃
Operating Temperature -25℃ to 70℃
Storage Temperature -40℃ to 75℃
Cable pull 80N
Optical Fiber Performance
Parameter Long Term Short Term
Tensile strength (N) 40 80
Crush load (N) 500 1000
Wavelength (nm) 1310/1550
Attenuation (dB) 0.4/0.3
Cladding diameter (μm) 125 ± 1
Cladding non-circularity ≤ 1.0%
Coating diameter (μm) 242 ± 7

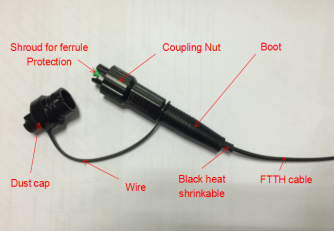

Schematic Drawing
FTTH Drop Cable Patchcord G657A1 LZOH SC/APC-SC/APC, 3.0*2.0mm, Non Messenger Wire FTTH Drop Cable Patchcord G657A1 LZOH SC/APC-SC/APC, 3.0*2.0mm, Non Messenger Wire

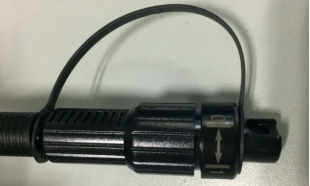

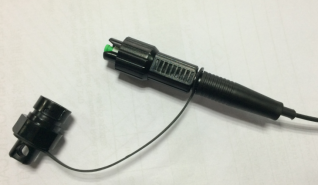

Product Images
FTTH Drop Cable Patchcord G657A1 LZOH SC/APC-SC/APC, 3.0*2.0mm, Non Messenger Wire FTTH Drop Cable Patchcord G657A1 LZOH SC/APC-SC/APC, 3.0*2.0mm, Non Messenger Wire

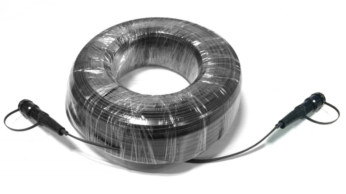

Packaging
  • Stretch film packaging of the offered products
  • As shown below
FTTH Drop Cable Patchcord G657A1 LZOH SC/APC-SC/APC, 3.0*2.0mm, Non Messenger Wire FTTH Drop Cable Patchcord G657A1 LZOH SC/APC-SC/APC, 3.0*2.0mm, Non Messenger Wire
