Specifications
Model Number :
MPO/MTP-LC Uniboot
Payment Terms :
T/T,Paypal
Price :
Can be negotiation
Supply Ability :
3000PCS/Week
Brand Name :
DF/OEM/Nuetral
MOQ :
1
Delivery Time :
5-9 Works depend on the QTY
Certification :
CE/ROHS/CPR EN50575/ISO9001 /ISO14001
Place of Origin :
ShenZhen & ZhongShan China
Packaging Details :
Carton
Description
MPO/MTP-LC Uniboot Breakout Patch Cord
Dual LC in One Boot, Polarity Reversible, Space-Saving Design
Product Overview
The MPO/MTP-LC Uniboot breakout patch cord is a high-performance, space-saving interconnect solution designed for high-density data centers, enterprise networks, and 40G/100G backbone architectures. It features a multi-fiber MPO/MTP connector on one end, breaking out to individual LC duplex connectors on the other end, enabling seamless conversion from high-density trunk cabling to standard equipment interfaces.
Key Features
  • Uniboot LC design - dual LC in one boot, 50% space saving vs. standard duplex LC
  • Polarity reversible in the field - no tools required for Type A/B/C change
  • OS2 bend-insensitive single-mode fiber - stable long-distance transmission
  • Multi-core main cable - reduces tangling and simplifies cable management
  • Customizable fiber count (4/8/12/24F), length, breakout length, polarity, jacket
  • Compliant with IEC 61754-7 and TIA/EIA-604-5 (FOCIS-5)
  • 100% factory tested (IL/RL/end-face inspection)

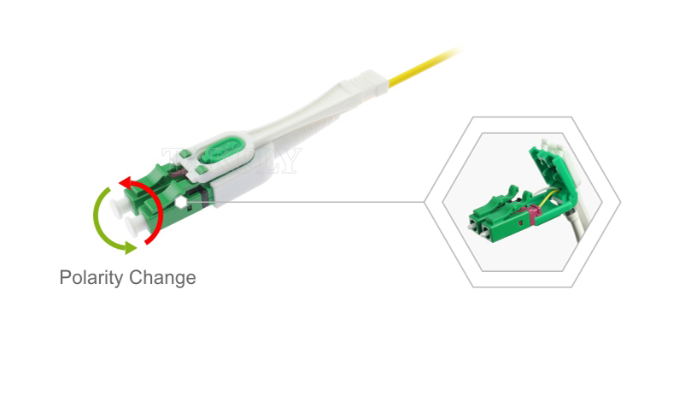

Space-Saving Design
LC uniboot connector features one push-pull tab, one tube, two cores and single boot, making it compact and space-saving (can save 50% cabling space) and conducive to reasonable heat dissipation for greater efficiency in cabling systems. Allows for on-site polarity change of optical connector with easy opening of outer housing without any tools.
MPO/MTP-LC Uniboot Breakout Patch Cord – Dual LC in One Boot, Polarity Reversible, Space-Saving Design

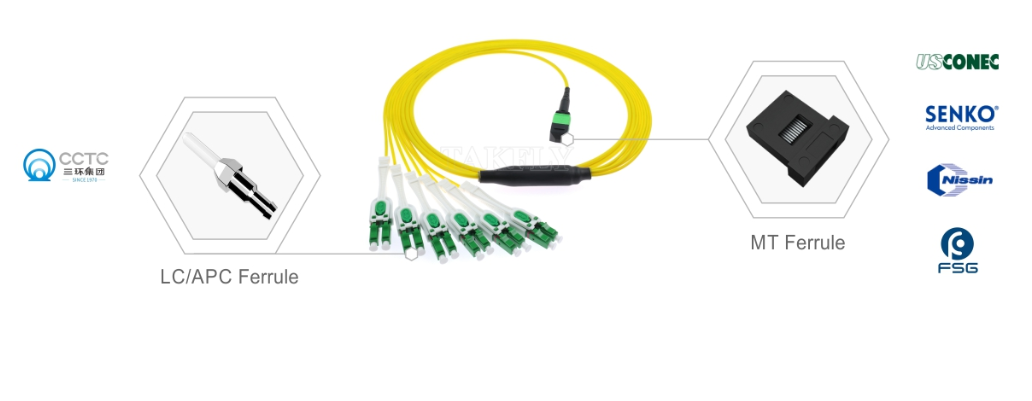

Premium Quality Ferrules
Available with high quality ferrule, professional polishing technology, and precise matching for optical endface to achieve stable transmission and efficient connection.
MPO/MTP-LC Uniboot Breakout Patch Cord – Dual LC in One Boot, Polarity Reversible, Space-Saving Design
Rigorous Quality Assurance
TAKFLY MPO/MTP-LC breakout patch cords are fully 100% tested, compliant with product standards, and designed to meet user demands.
MPO/MTP-LC Uniboot Breakout Patch Cord – Dual LC in One Boot, Polarity Reversible, Space-Saving Design

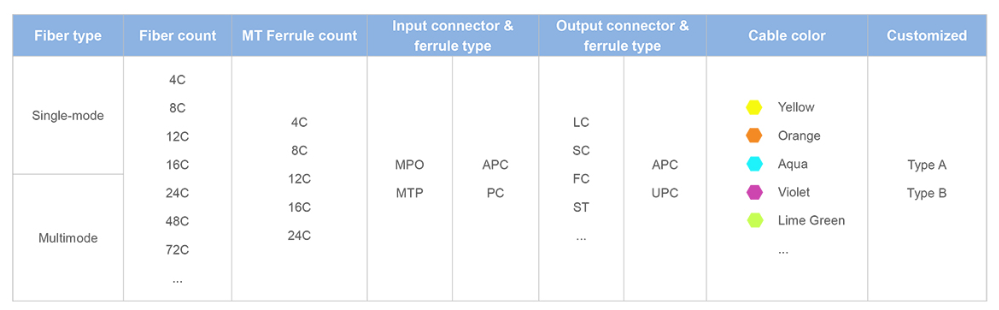

Customization Options
TAKFLY provides a full range of MPO/MTP-LC breakout patch cords with customization options available.
MPO/MTP-LC Uniboot Breakout Patch Cord – Dual LC in One Boot, Polarity Reversible, Space-Saving Design
Applications
  • Data centers (40G/100G/400G architectures)
  • Enterprise networks & campus backbones
  • Optical transceivers (QSFP/QSFP-DD/OSFP)
  • High-density patching areas
  • Storage area networks (SAN)
  • Breakout assemblies & fan-out harnesses
  • Premise installations
  • 40G/100G equipment interconnect
MPO/MTP-LC Uniboot Breakout Patch Cord – Dual LC in One Boot, Polarity Reversible, Space-Saving Design
Why Choose TAKFLY?

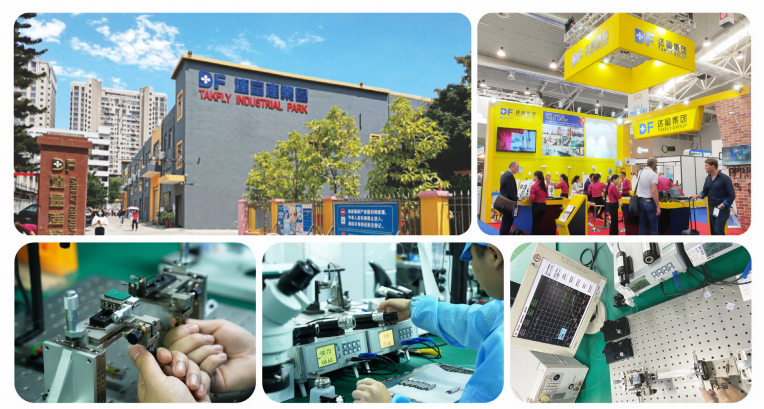

26 Years of Manufacturing Experience in Fiber Optic Products
Company Capabilities
Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
Strong R&D Capability: More than 10 R&D engineers
Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines

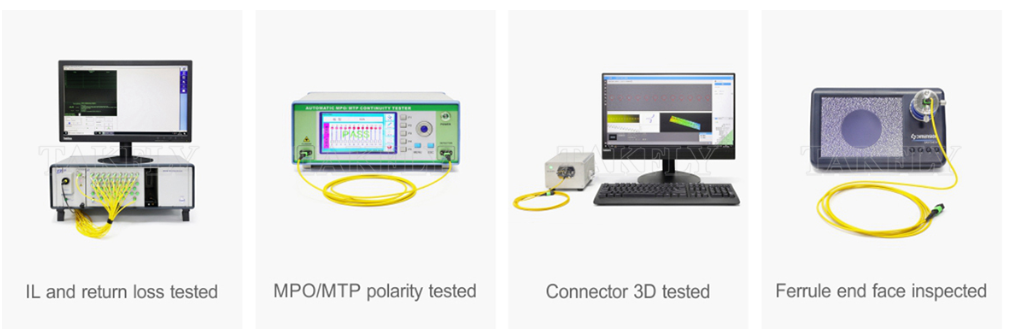

Comprehensive Testing Facilities: More than 30 sets of testing instruments, including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
OEM Branding Accepted: Custom logo/branding available
Quality Control Process
Stage Process
Incoming Inspection Spot check of raw materials before production
In-Process Inspection Full inspection at every individual process completion
Pre-Packaging Inspection Full inspection of finished products before packing
Pre-Shipping Inspection Spot check before shipping
Industry Participation
Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, China
Delivery Information
Service Timeline
Samples 1-3 working days
Mass Production Orders 3-7 working days
Packaging Plastic bag, carton, and pallet options available according to your requirements
