Specifications
MOQ :
1
Delivery Time :
5-8 working days
Model Number :
MPO/MTP-MM-OM3-Uni LC
Brand Name :
OEM
Payment Terms :
T/T, Western Union
Fiber Type :
MM
Price :
USD12-20/pc
Color :
Aqua
Supply Ability :
50000pcs per month
Material :
LSZH, OFNP
Customizable :
Yes
Certification :
ISO, CE RoHS
Place of Origin :
China
Packaging Details :
PE Self-sealing Bag + Carton
Description
MPO/MTP Patchcord Fanout Uniboot LC Multimode OM3 Breakout Fiber Optic Cable
MPO/MTP breakout patch cords are designed for data center cabling and AI telecom applications, providing efficient optical connectivity in high-density environments.
Product Overview

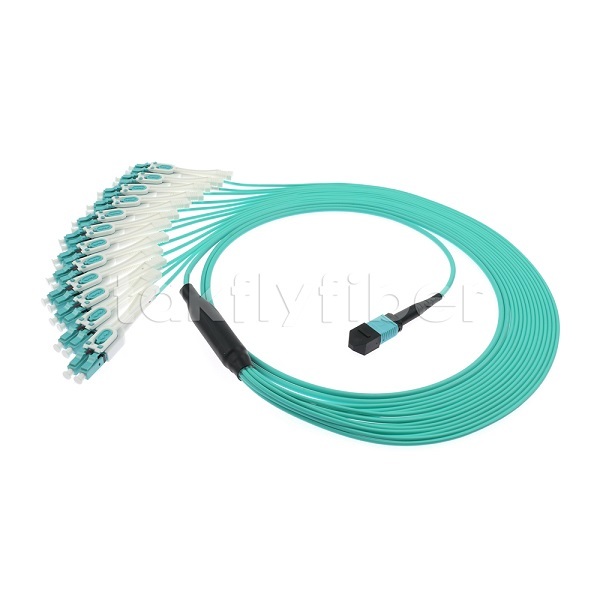

MPO/MTP breakout patch cords consist of four main components: main cable, breakout cable, branching device, and connector. The multi-core main cable simplifies cabling management and prevents tangling, making it ideal for high-density optical cabling environments.
Key Features

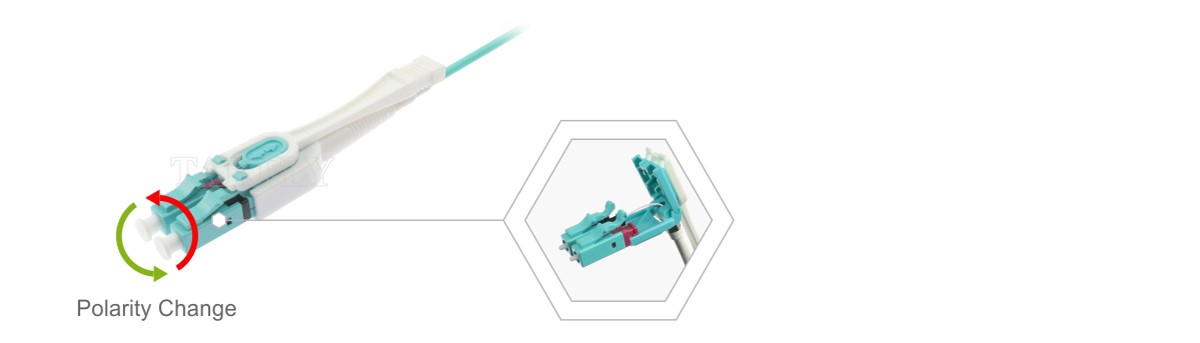

  • Changeable polarity with simple operation

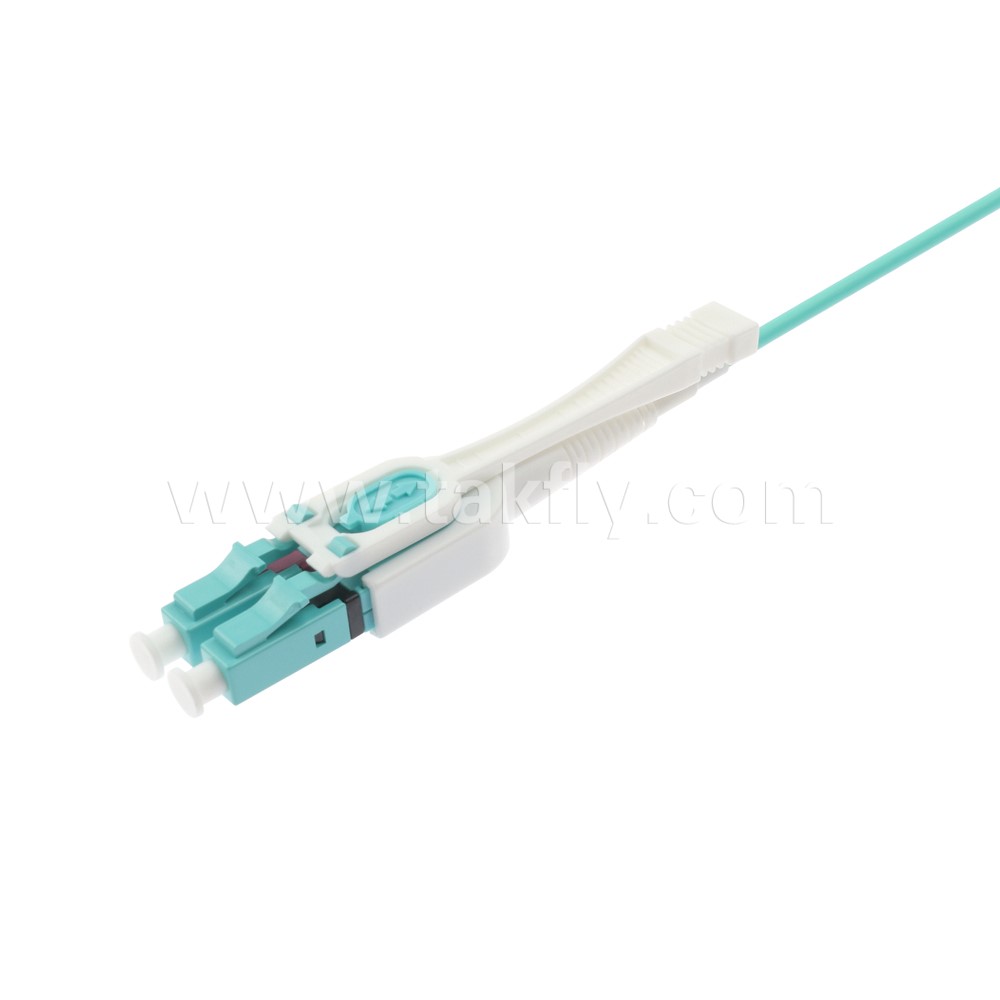

  • LC uniboot connector design saves 50% cabling space
  • Compact and space-saving for high-density environments
  • Tool-free outer housing opening

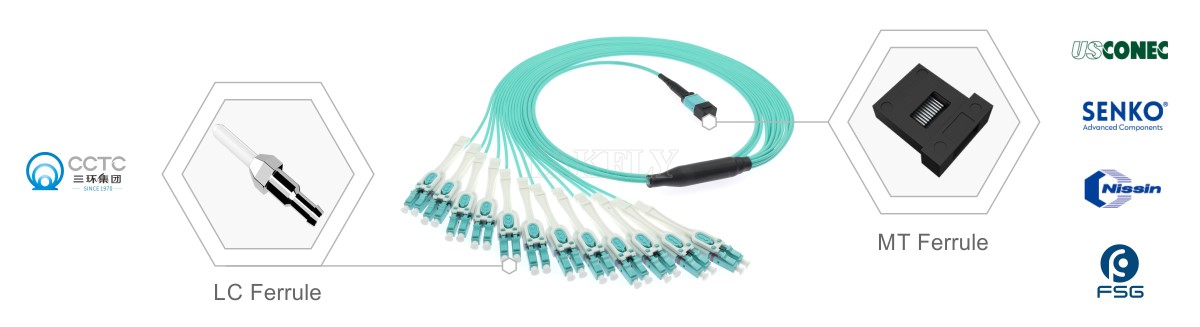

  • High-quality ferrule with professional polishing technology
  • Precise optical endface matching for stable transmission
  • 100% tested for quality assurance
  • Multiple types available with customization options
Applications
TAKFLY MPO/MTP breakout patch cords feature stable transmission and high reliability, making them ideal for optical network scenarios including data centers and various optical cabling applications.
MPO/MTP Patchcord Fanout Uniboot LC Multimode OM3 Breakout Fiber Optic Cable for Data Center Cabling AI Telecom MPO/MTP Patchcord Fanout Uniboot LC Multimode OM3 Breakout Fiber Optic Cable for Data Center Cabling AI Telecom MPO/MTP Patchcord Fanout Uniboot LC Multimode OM3 Breakout Fiber Optic Cable for Data Center Cabling AI Telecom
Available Types
TAKFLY provides a full range of MPO/MTP-LC breakout patch cords with customizable transmission mode, cable type, and connector type options.
MPO/MTP Patchcord Fanout Uniboot LC Multimode OM3 Breakout Fiber Optic Cable for Data Center Cabling AI Telecom
Technical Specifications
Performance Type Multimode Singlemode
Insertion Loss (IL) MPO Single Max: 0.35dB (L)
Single Max: 0.60dB (G)		 Single Max: 0.35dB (L)
Single Max: 0.75dB (G)
LC Max: 0.10dB (L)
Max: 0.15dB (G)		 Max: 0.30dB
Return Loss (RL) MPO >20dB >60dB (8 degree Angle Polish)
LC >30dB >50dB(UPC), >60dB(APC)
Mechanical MPO <0.2dB, 200 times insertion
LC <0.2dB, 500 times insertion
Environmental Working Temp -20°C to +60°C
MPO/MTP Patchcord Fanout Uniboot LC Multimode OM3 Breakout Fiber Optic Cable for Data Center Cabling AI Telecom MPO/MTP Patchcord Fanout Uniboot LC Multimode OM3 Breakout Fiber Optic Cable for Data Center Cabling AI Telecom MPO/MTP Patchcord Fanout Uniboot LC Multimode OM3 Breakout Fiber Optic Cable for Data Center Cabling AI Telecom
