Mode-Field Matched Fiber Array – UHNA Fiber to SMF-28, Low Loss Coupling for Silicon Photonic Integrated Circuits (PIC)
Mode-Field Matched Fiber Array – UHNA Fiber to SMF-28, Low Loss Coupling for Silicon Photonic Integrated Circuits (PIC)
Specifications
Supply Ability :
1000 PCS/Days
Model Number :
MFD Matched Fiber Array
Certification :
CE/ROHS/CPR EN50575/ISO9001 /ISO14001
Brand Name :
DF/OEM/Nuetral
Payment Terms :
T/T,Western Union,Paypal
Packaging Details :
Carton
MOQ :
1
Place of Origin :
ShenZhen & ZhongShan,China
Price :
can be negotiated
Delivery Time :
5-9 working days depend on QTY
Description

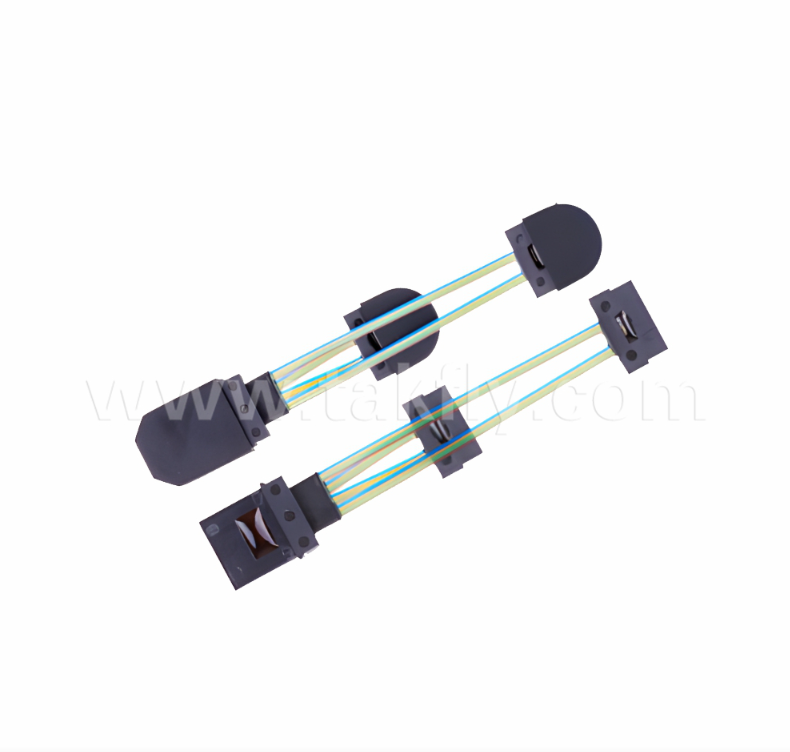

Mode-Field Matched Fiber Array
UHNA Fiber to SMF-28, Low Loss Coupling for Silicon Photonic Integrated Circuits (PIC)
Product Overview
The MFD Matched Fiber Array is a precision optical component designed to solve the mode field mismatch between standard single-mode fibers (MFD ~10μm) and silicon photonic waveguides (MFD ~3-5μm). It integrates UHNA (Ultra-High Numerical Aperture) fibers with standard SMF-28 fibers via high-precision fusion splicing, creating a seamless mode field transition within a compact V-groove array package.
When standard 10μm fibers are directly aligned with silicon waveguides, coupling efficiency is extremely low due to mode field mismatch. The MFD matched fiber array acts as a mode field converter - the UHNA fiber section gradually compresses the optical mode from 10μm down to 3-5μm, enabling high-efficiency coupling to silicon photonic chips.
Mode-Field Matched Fiber Array – UHNA Fiber to SMF-28, Low Loss Coupling for Silicon Photonic Integrated Circuits (PIC)
Key Features
Mode-Field Matched Fiber Array – UHNA Fiber to SMF-28, Low Loss Coupling for Silicon Photonic Integrated Circuits (PIC) Mode-Field Matched Fiber Array – UHNA Fiber to SMF-28, Low Loss Coupling for Silicon Photonic Integrated Circuits (PIC) Mode-Field Matched Fiber Array – UHNA Fiber to SMF-28, Low Loss Coupling for Silicon Photonic Integrated Circuits (PIC)

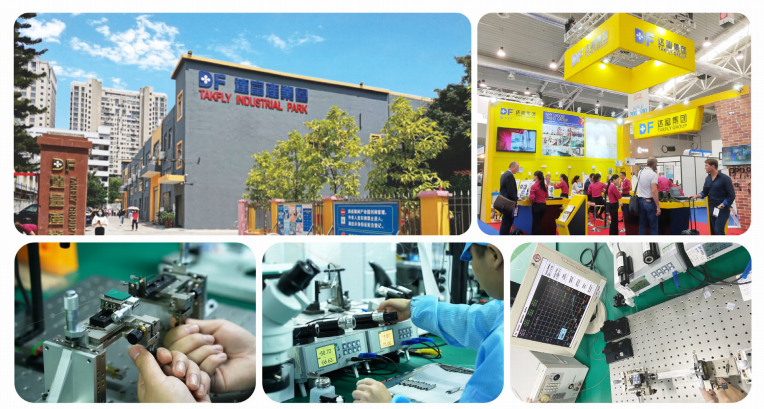

Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
  • Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
  • Strong R&D Capability: More than 10 R&D engineers
  • Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
  • Comprehensive Testing Facilities: More than 30 sets of testing instruments, including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
  • OEM Branding Accepted: Custom logo/branding available
Quality Control Process
  • Incoming inspection: Spot check of raw materials before production
  • In-process inspection: Full inspection at every individual process completion
  • Pre-packaging inspection: Full inspection of finished products before packing
  • Pre-shipping inspection: Spot check before shipping
Industry Presence
Active participation in major industry exhibitions including Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and events in China.
Delivery Information
Service Type Timeline
Samples 1-3 working days
Mass production orders 3-7 working days
Packaging: Plastic bag, carton, and pallet options available according to your requirements.
