Specifications
Model Number :
MTP/MPO 16-core
Payment Terms :
T/T,Paypal
Price :
Can be negotiation
Supply Ability :
2500PCS/Week
Brand Name :
DF/OEM/Nuetral
Certification :
CE/ROHS/CPR EN50575/ISO9001 /ISO14001
Place of Origin :
ShenZhen & ZhongShan China
MOQ :
1
Delivery Time :
5-9 Works depend on the QTY
Packaging Details :
Carton
Description

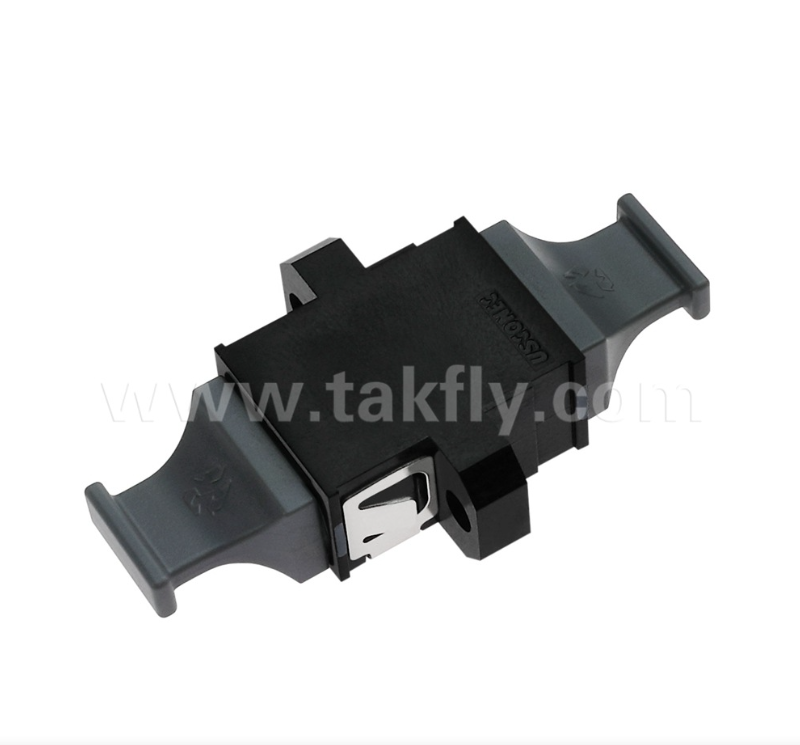

16-Fiber MPO/MTP Adapter
Precision-aligned for seamless multi-fiber connectivity in high-density environments
Product Overview
The 16-core MTP/MPO fiber optic adapter is a high-precision, passive interconnection device designed to facilitate reliable connections between multi-fiber MTP/MPO connectors. It bridges fiber optic cables or links cables to active equipment, playing a pivotal role in optimizing light energy transfer from a 16-core transmitting fiber to a corresponding 16-core receiving fiber - significantly enhancing optical signal transmission efficiency in high-density environments.
This adapter features a precision-molded MT ferrule alignment sleeve and high-accuracy guide pin holes, ensuring exact physical contact between connector end-faces with micron-level precision. This precision alignment minimizes insertion loss and ensures consistent optical performance across repeated mating cycles.

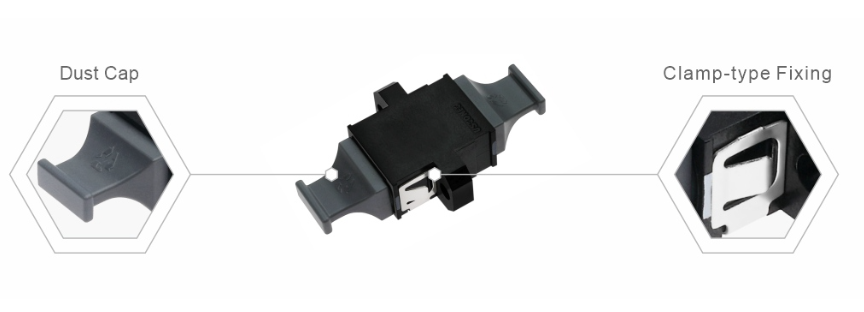

Safety and Installation
This RoHS compliant adapter features rectangular overall structure and easy snap-in spring clip, with dust cap protection, guaranteeing safety in use and no need of extra tools during installation.
16-Fiber MPO/MTP Adapter – Precision-Aligned for Seamless Multi-fiber Connectivity in High-Density Environments

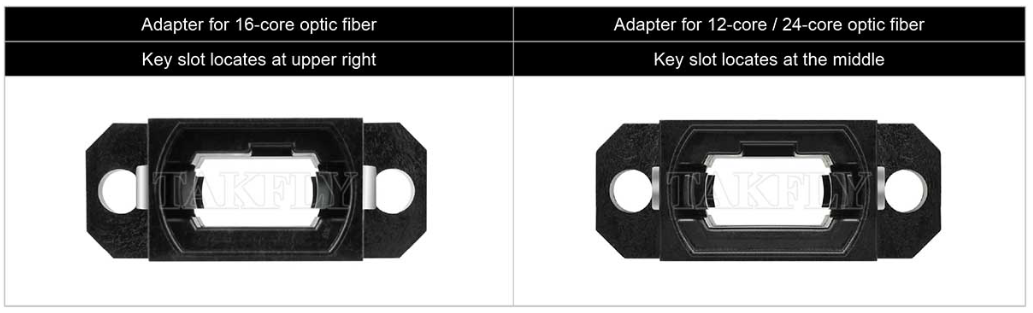

Unique Key Slot Structure
16-Fiber MPO/MTP Adapter – Precision-Aligned for Seamless Multi-fiber Connectivity in High-Density Environments

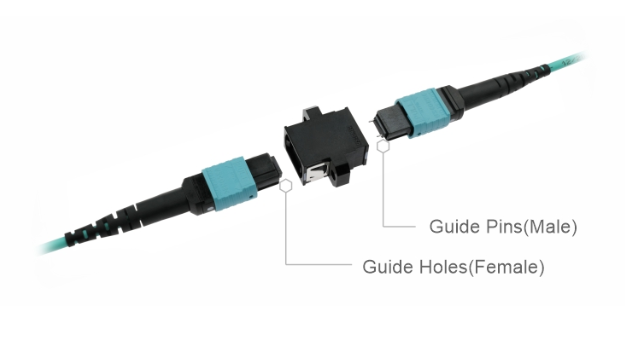

Simple and Convenient Connection
The MPO/MTP connectors are precisely connected through the 0.7mm guide holes (female) and guide pins (male).
16-Fiber MPO/MTP Adapter – Precision-Aligned for Seamless Multi-fiber Connectivity in High-Density Environments
Key Features
  • 16-fiber core alignment - supports 16-core MTP/MPO connectors
  • Precision molded MT ferrule sleeve for micron-level alignment accuracy
  • Excellent repeatability - consistent performance across multiple mating cycles
  • Superior durability - supports ≥500 mating cycles
  • Compact space-saving design for high-density environments
  • Multiple fiber counts: 4/8/12/16/24/32/48/72F available
  • Fully compliant with IEC 61754-7 and TIA/EIA-604-5 (FOCIS-5)
  • 100% factory tested (end-face inspection and optical performance)
  • Customizable: housing material, color coding, mounting options, flange types
Applications
  • Data centers (40G/100G/400G architectures)
  • Optical fiber distribution frames (ODF)
  • Communication system base stations
  • Optical communication equipment
  • High-density patching areas
  • Breakout cassettes & patch panels
  • Test & measurement equipment
  • FTTA / 5G front-haul
16-Fiber MPO/MTP Adapter – Precision-Aligned for Seamless Multi-fiber Connectivity in High-Density Environments
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
Strong R&D Capability: More than 10 R&D engineers
Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
Comprehensive Testing Facilities: More than 30 sets of testing instruments, including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
OEM Branding Accepted: Custom logo/branding available
Quality Control Process
Process Stage Quality Control Method
Incoming Inspection Spot check of raw materials before production
In-process Inspection Full inspection at every individual process completion
Pre-packaging Inspection Full inspection of finished products before packing
Pre-shipping Inspection Spot check before shipping
Industry Participation
Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, China.
Delivery Information
Order Type Processing Time
Samples 1-3 working days
Mass Production Orders 3-7 working days
Packaging Options: Plastic bag, carton, and pallet options available according to your requirements.
