Specifications
Certification :
CE, ROHS, REACH, CPR, ISO9001, ISO14001
Length :
0.5M/1M/5M/10M/50M/100M or customized
Model Number :
TK-PC-MPO-48F-SM-OS2
Fiber Type :
G657A1/G657A2/G652D/OS2
MOQ :
1
Delivery Time :
7-11working days
Connector Type :
MPO/MTP, APC/PC, Male/Female
Cable Color :
Yellow
Payment Terms :
Western Union,L/C,T/T,Paypal
Return Loss :
SM APC: 60dB
Product Name :
48 Cores MPO MTP Fiber Optic Trunk Cable
Price :
US$0.01~US$999.99/PC
Insertion Loss :
Standard: 0.7dB, Low Loss: 0.35dB
Operating Temperature :
-20℃~70℃
Supply Ability :
500PCS/Day
Cable Jacket :
LSZH
Brand Name :
Neutral/OEM/Takfly
Cores :
288
Packaging Details :
PE bag
Application :
Data Center, Telecom, Network
Place of Origin :
Shenzhen, China
Cable Diameter :
9.5±0.5mm
Description
Amphenol Customized 0.35db Max 288 Fibers Singlemode OS2 MPO Trunk Cable for Data Center

288 Fibers MPO Trunk Cable jumpers are high-density pre-terminated optical cabling that simplify installation and improve performance, designed to be a cost-effective alternative to time-consuming field termination. MPO Trunk Cable jumpers allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunk cables. They are used to connect MPO adapter panels, fiber cassettes, and electronics, typically within a cabinet and row.

The optical fiber link of MPO MTP Fiber Optic Trunk Cable is fully protected, there are no fusion splices and bare optical fibers exposed to the air, and there will be no problems such as aging, joint breakage, etc.

MPO MTP Fiber Optic Trunk Cable Features
  • Precision molded MT ferrule
  • High precision guide pins for exact alignment
  • Compact design, up to 4,8,12,24,48,72,96,144,288 fibers
  • EC 61754-7 Compliant
  • EIA/TIA-604-5 Compliant
MPO MTP Fiber Optic Trunk Cable Applications
  • Asynchronous Transmission Mode (ATM)
  • Gigabit Ethernet
  • Active Devices/Transceiver Interface
  • CATV, Video and Multimedia
  • Premise Installations
  • Telecommunication Networks
  • Parallel optical interconnect between PC Cards and patch panels
  • Interconnection for O/E modules
  • 5G Data Center and AI
  • Optical Switch interframe connections
MPO / MTP Fiber Optic Trunk Cable Specifications
Item LC / SC / ST / FC MPO / MTP
End face type PC / UPC / APC PC and APC
Fiber type SM(G652 / G655 / G657); MM(OM1-OM5)
Core number 2 / 4 / 6 / 8 / 12 / 24/48/72/96/144/288
Cable Diameter 0.9 / 2.0 / 3.0.... 17.5mm. Mini Round cable: 9.5±0.5mm
Insertion loss(dB) ≤ 0.3 Standard: ≤0.35/0.7(Typical/Max)
Low Loss: ≤0.2/0.35(Typical/Max)
Return loss(Min) UPC SM:40dB APC SM:60 dB PC MM:25 dB SM: APC:60dB | MM: PC:20dB
Test Wavelength(nm) SM:1310/1550 MM:850/1300
Repeatability ≤ 0.1dB
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Operating Temperature -20℃~70℃
Storage Temperature -40℃~80℃
Outer Sheath Material PVC / LSZH
Bending radius(Static/Dynamic) 10D/20D
Length Customized

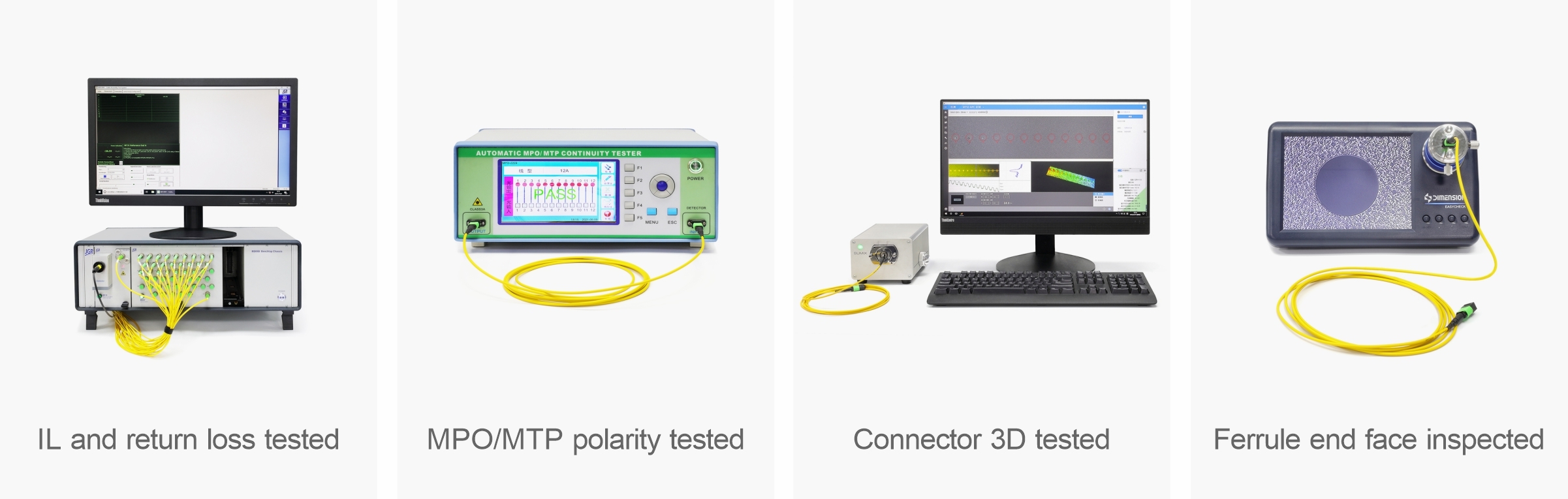

Testing Equipment

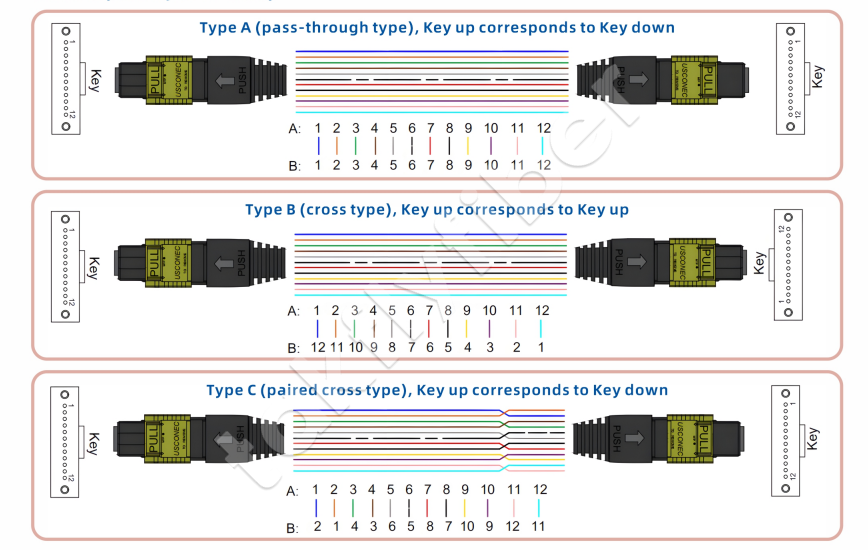

Polarity of the MPO Connector
Amphenol Customized 288 Fibers 0.35dB Max Insertion Loss Singlemode OS2 MPO Trunk Cable for Data Center

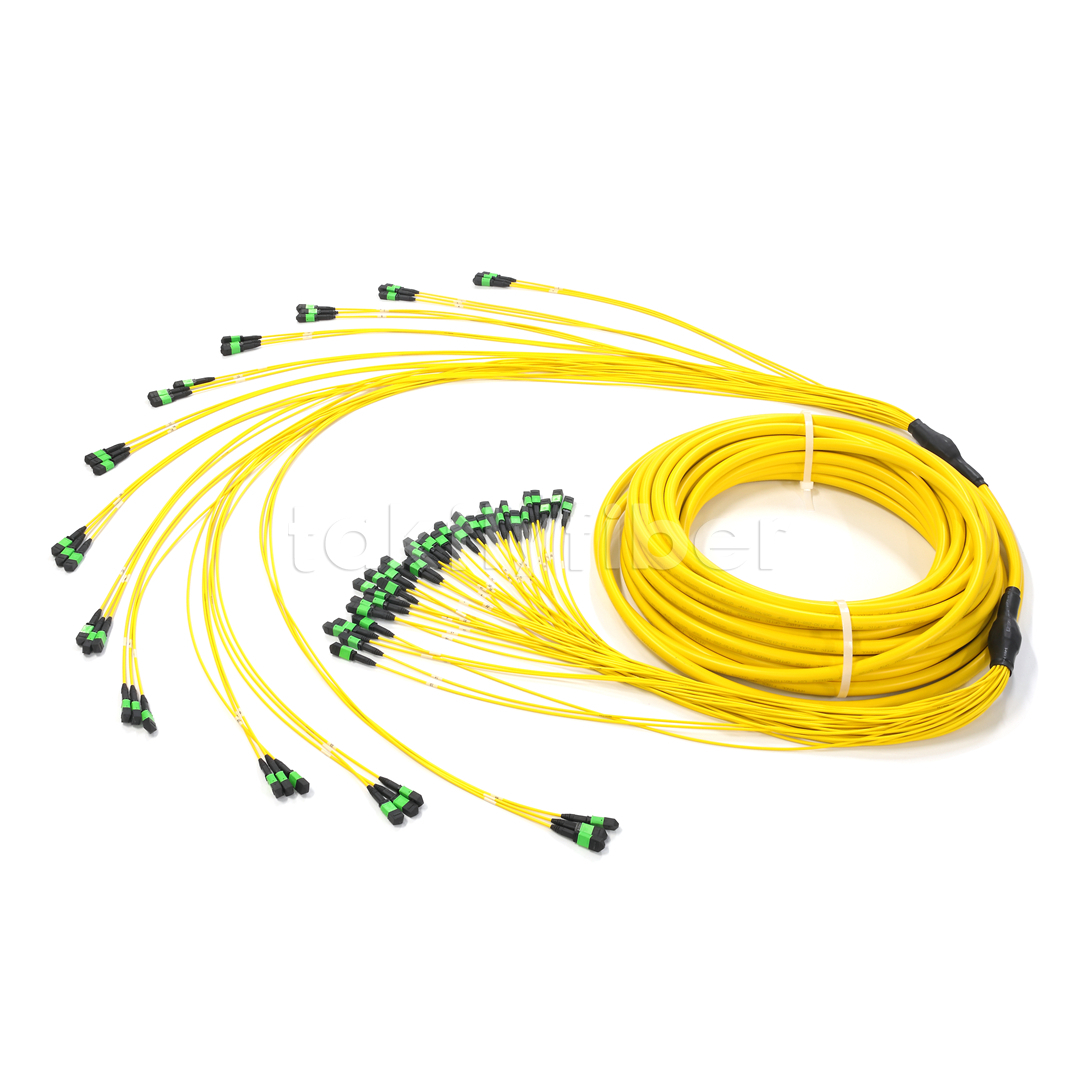

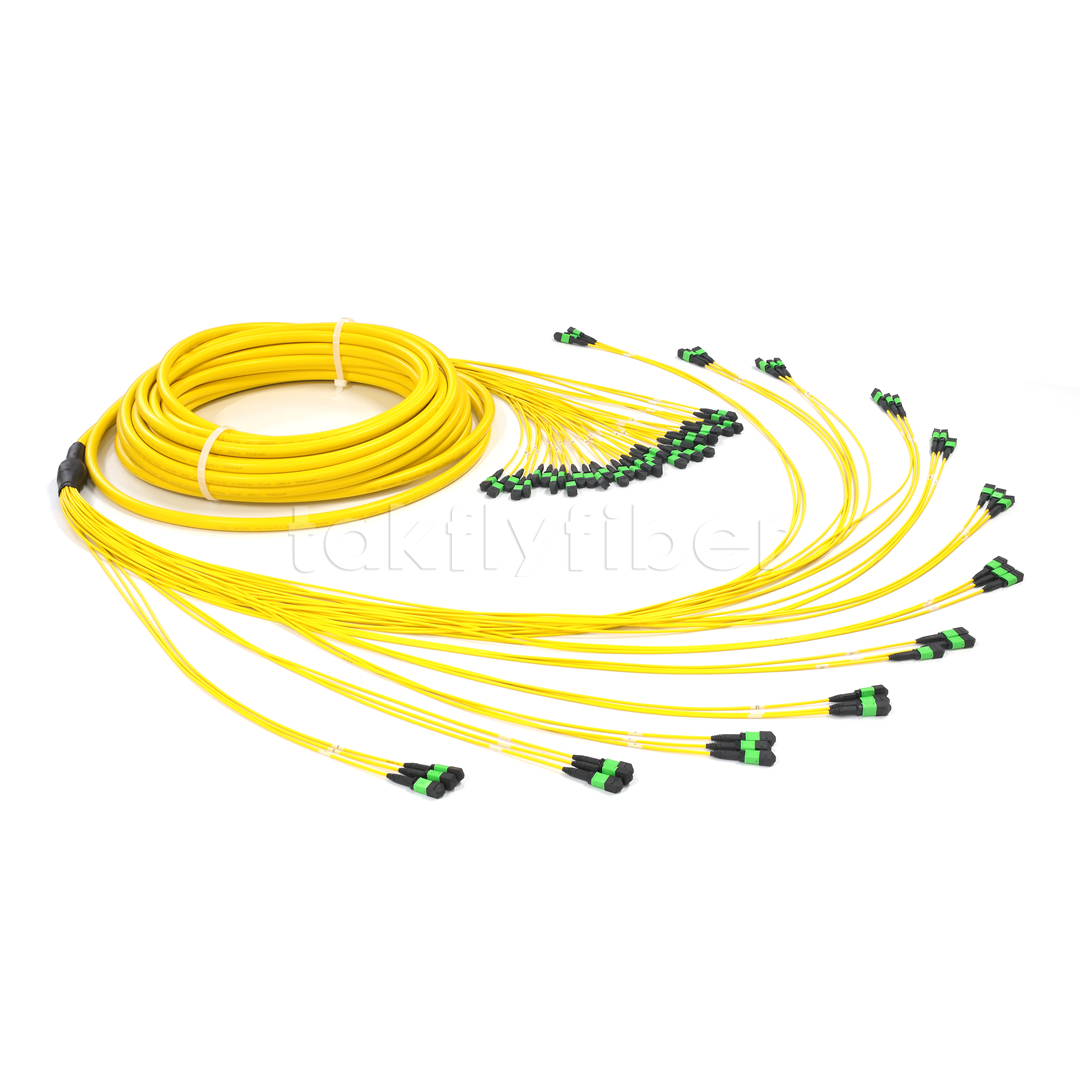

Product Picture
Amphenol Customized 288 Fibers 0.35dB Max Insertion Loss Singlemode OS2 MPO Trunk Cable for Data Center

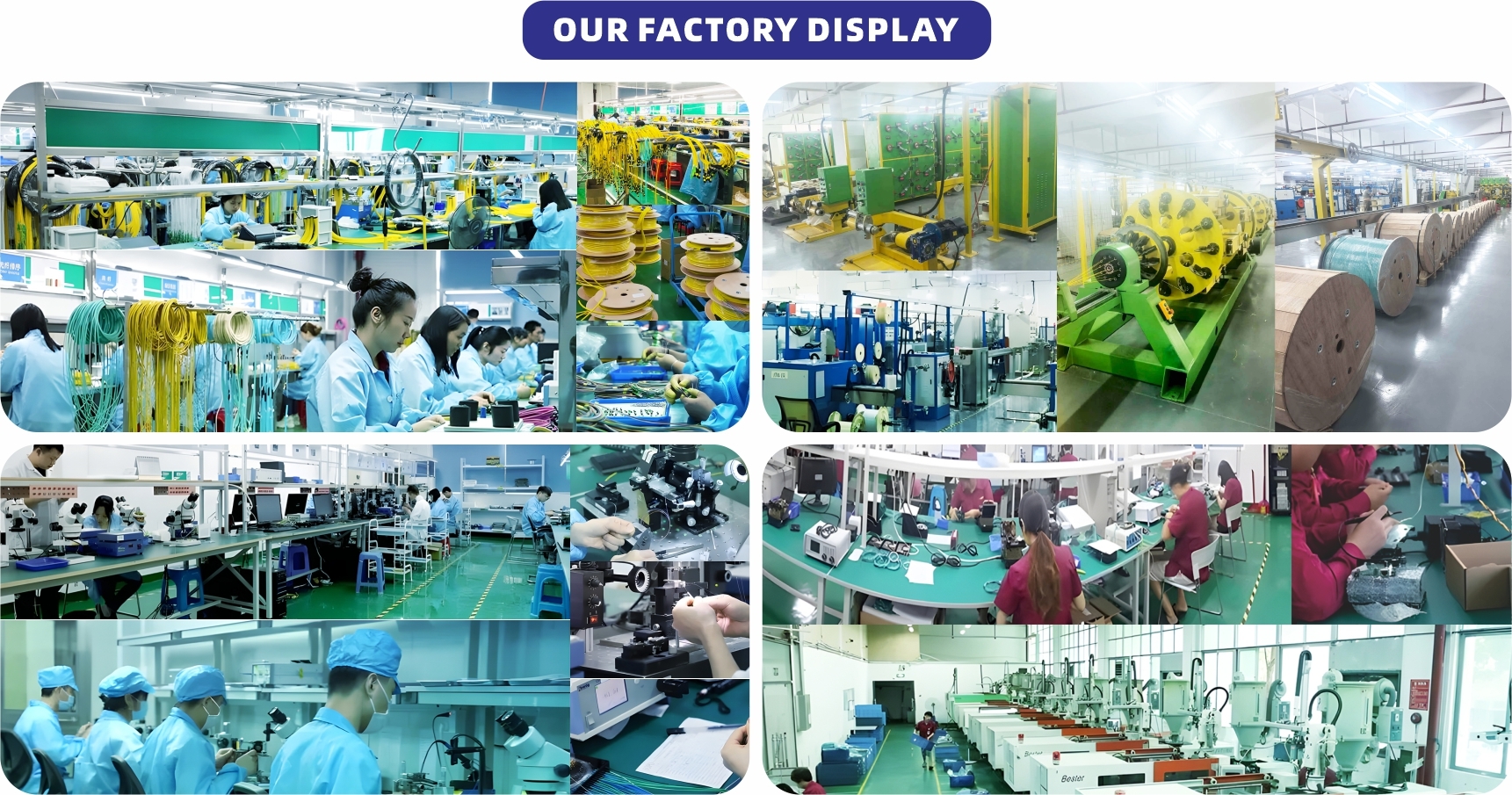

MPO Trunk Cable workshop
Amphenol Customized 288 Fibers 0.35dB Max Insertion Loss Singlemode OS2 MPO Trunk Cable for Data Center

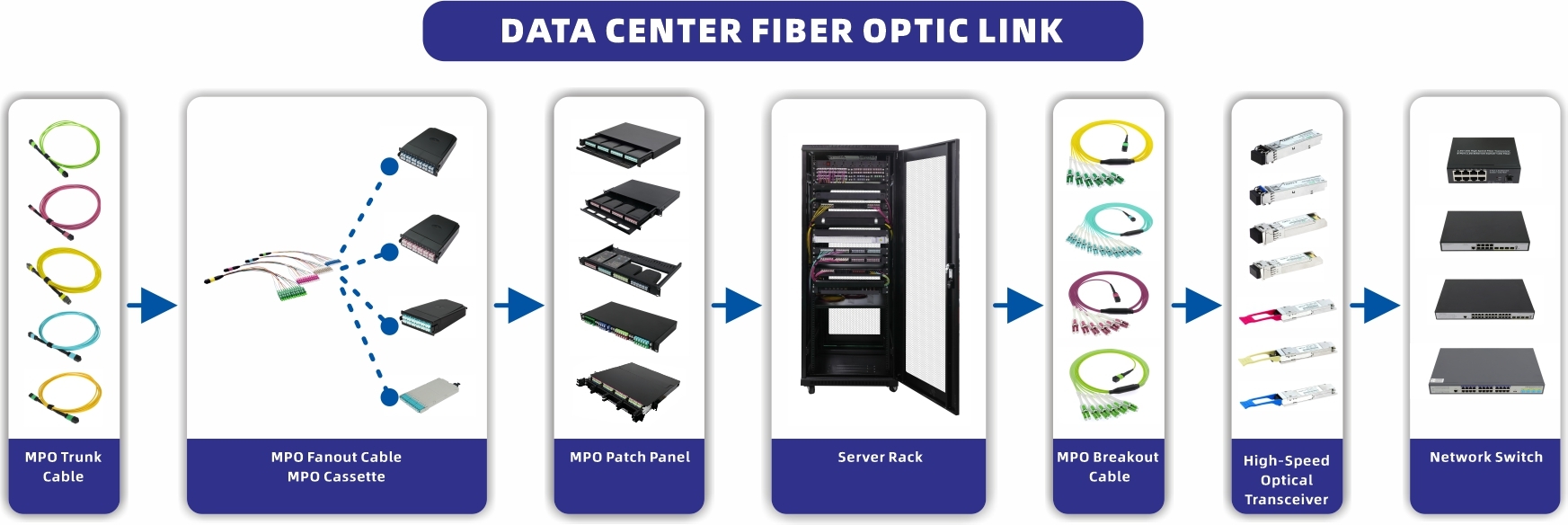

MPO Trunk Cable Application
Amphenol Customized 288 Fibers 0.35dB Max Insertion Loss Singlemode OS2 MPO Trunk Cable for Data Center

Certifications

TAKFLY has been certified with CE, ROHS, REACH and CPR. We have won ISO9001 and ISO14001.

Why Choose TAKFLY - Our Advantages
Professional Manufacturer
  • With more than 21 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experience
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
Price

If your quantity is large, the price could be negotiated.
