MPO/PC/F-LC/UPC Uniboot Multimode OM5 12F MPO Patch Cord
MPO/PC/F-LC/UPC Uniboot Multimode OM5 12F MPO Patch Cord
MPO/PC/F-LC/UPC Uniboot Multimode OM5 12F MPO Patch Cord
MPO/PC/F-LC/UPC Uniboot Multimode OM5 12F MPO Patch Cord
Specifications
Brand Name :
Neutral/OEM
Model Number :
OM5 MPO-LC Patch Cord
Certification :
CE/ROHS/REACH/CPR/ISO9001/ISO14001
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, Paypal
Supply Ability :
100PCS/Day
Delivery Time :
3-5 working days
Packaging Details :
Zip-lock Bag
Cores :
12 Fibers
Fiber Type :
Multimode OM5
Length :
5m, 10m and Customized
Cable Diameter :
3.0mm or 4.5mm
Connector Type :
OM5 MPO-LC
Cable Jacket :
LSZH，OFNP
Description

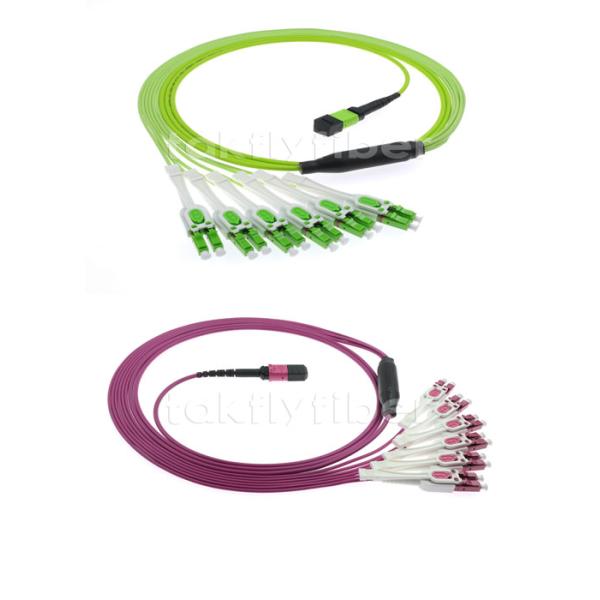

MPO/PC/F-LC/UPC Uniboot Multimode OM5 12F MPO Patch Cord


Fiber Optic MPO-LC OM5 Patch Cord Name:

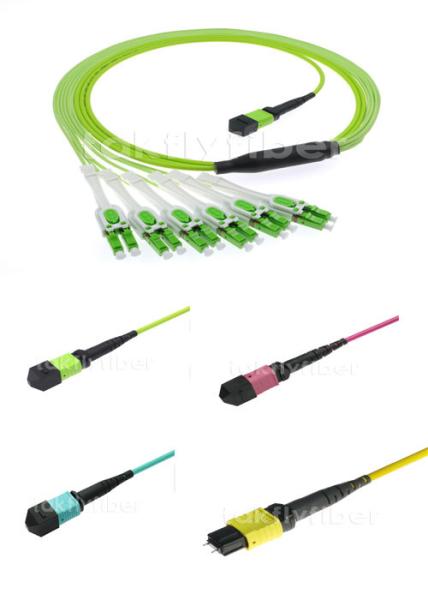

Multimode OM5 Lime Green MPO 12F Patch Cord MPO/PC/F-LC/UPC Uniboot

Fiber Optic MPO-LC OM5 Patch Cord Description:

This Multimode OM5 MPO 12F Patch Cord MPO/PC/F-LC/UPC Uniboot MPO-LC Patch Cord is in Lime Green. Other cores like 8 cores, 12 cores, 24 cores and other colors are also available.

Fiber Optic MPO-LC OM5 Patch Cord Features:

Precision molded MT ferrule
High precision guide pins for exact alignment
Compact design, up to 4,8,12,24 fibers
IEC 61754-7 Compliant
Cable diameter 3.0mm, and 4.5mm available

Fiber Optic MPO-LC OM5 Patch Cord Applications:

  • Telecommunication Networks
  • Active Deviced/Transceiver Interface
  • Gigabit Ethernet
  • CATV, Video and Multimedia
  • Premise Installations
  • Optical Switch interframe connections
  • Data Center

Fiber Optic MPO-LC OM5 Patch Cord Specifications:

Item LC,SC,ST,FC....... MPO/MTP
End face type PC,UPC and APC PC and APC
Fiber type SM(G652,G655,G657)；MM(OM1-OM5)
Core number 12, 24
Cable Diameter 0.9,2.0,3.0 Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm
Insertion loss(dB) ≤ 0.3 Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max)
Return loss(Min)

UPC SM:40dB

APC SM:60 dB

PC MM:25 dB

 SM: APC:60dB MM: PC:20dB
Test Wavelength (nm) SM:1310/1550 MM:850/1300
Repeatability ≤ 0.1dB
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB


MPO/PC/F-LC/UPC Uniboot Multimode OM5 12F MPO Patch Cord

Delivery:

  • Samples: 1-3 working days.
  • Mass Production Order: 3-7 working days.
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request.

Price: If your QTY is big, the price could be negotiated.
