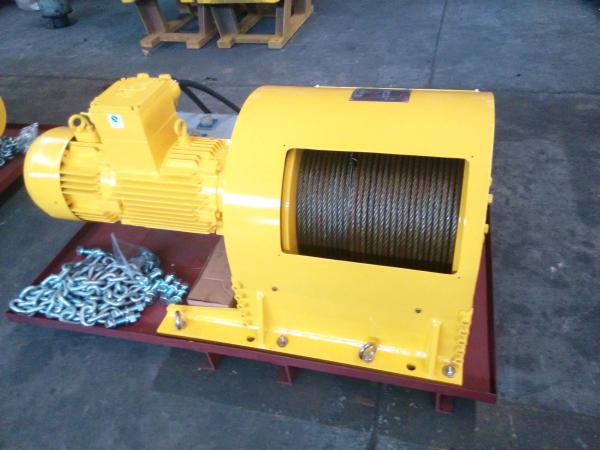

Explosion Proof Electric Winch with Remote Control DJFY Series
Explosion Proof Electric Winch with Remote Control DJFY Series
Specifications
Brand Name :
Juling
Model Number :
As Specified in the data
Certification :
API,ISO
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Delivery Time :
Stock
Packaging Details :
Wooden Box
Certifications :
CE, ISO
Usage :
Lifting in Oilfield
Safety Features :
Emergency Stop Button, Overload Protection
Color :
Yellow Orange or other Colors
Material :
Steel
Warranty :
12 Months
Description
DJFY Series Explosion-Proof Electric Winch
PRODUCTION

The DJFY-type electric winch is a motor-powered lifting and traction device that drives a reel through a gear reduction mechanism, enabling heavy-duty operations. Designed for efficiency and reliability, it features a compact structure, smooth operation, and user-friendly controls. Its remote operation capability enhances safety and convenience, allowing operators to manage tasks from a distance. Additionally, the winch is built for durability, with low-maintenance requirements and stable performance under demanding conditions. Ideal for various industrial applications, the DJFY electric winch combines advanced engineering with practical functionality to ensure secure and efficient load handling. Its robust design and dependable operation make it a preferred choice for lifting and pulling tasks

NUMBERING METHOD
Explosion Proof Electric Winch with Remote Control DJFY Series
  1. DJFY: DJ- electric winch, F- explosion-proof, Y- remote control.
  2. Max lifting force in first layer: :kN.
  3. Max speed : m/min.
TECHNICAL PARAMETER
Item Specification parameter
Model DJFY-5*16 | DJFY-20*8 | DJFY-30*20 | DJFY-50*19/10 | DJFY-60*2
Ambient temperature -25℃∽40℃
Specification of lubricating oil GL-5,80w-90. Freezing point -60
Max Force lb 1125 | 4500 | 6750 | 11250 | 13500
Max speed ft/s 0.88 | 0.44 | 1.1 | 1.1/0.55 | 0.11
Rated power H.P 2 | 5.4 | 14.7 | 24.8/14.7 | 5.4
Rope capacity ft 130 | 260 | 390 | 390 | 165
Wire rope diameter in 0.24 | 0.55 | 0.63 | 0.75 | 0.787
Overall dimension: L*W*H(in) 27.6*11*13 | 49*23.5*24 | 46*30*24 | 57.5*32*26.6 | 53*32*26
