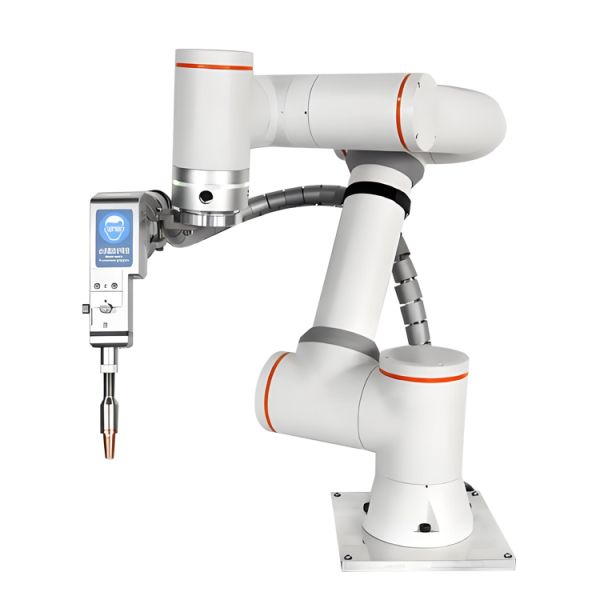

User-Friendly Robotic Laser Welder with Offline Programming Software
User-Friendly Robotic Laser Welder with Offline Programming Software
User-Friendly Robotic Laser Welder with Offline Programming Software
User-Friendly Robotic Laser Welder with Offline Programming Software
User-Friendly Robotic Laser Welder with Offline Programming Software
User-Friendly Robotic Laser Welder with Offline Programming Software
User-Friendly Robotic Laser Welder with Offline Programming Software
User-Friendly Robotic Laser Welder with Offline Programming Software
Specifications
Brand Name :
TAIYI
Model Number :
TY-HS6018
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us for the price
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
500 pieces
Delivery Time :
7-20 work days
Packaging Details :
Export standard packing
Condition :
New
Warranty :
2 Year
Applicable material :
Metal
Keywords :
6 Axis Welding Robot
Custom :
Accept
Description

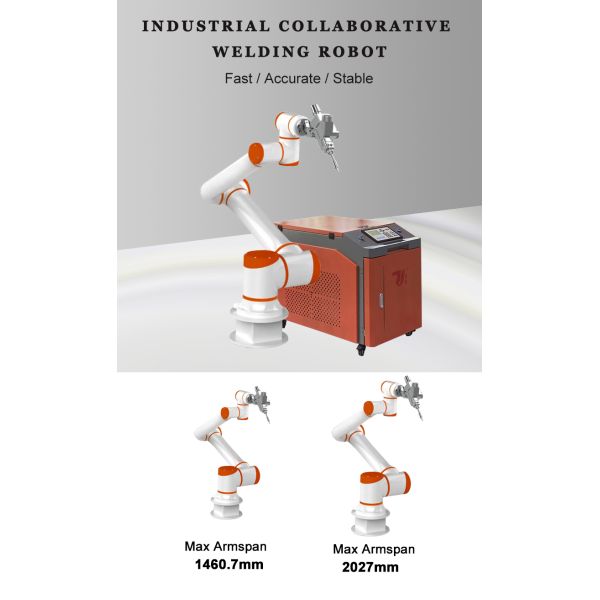

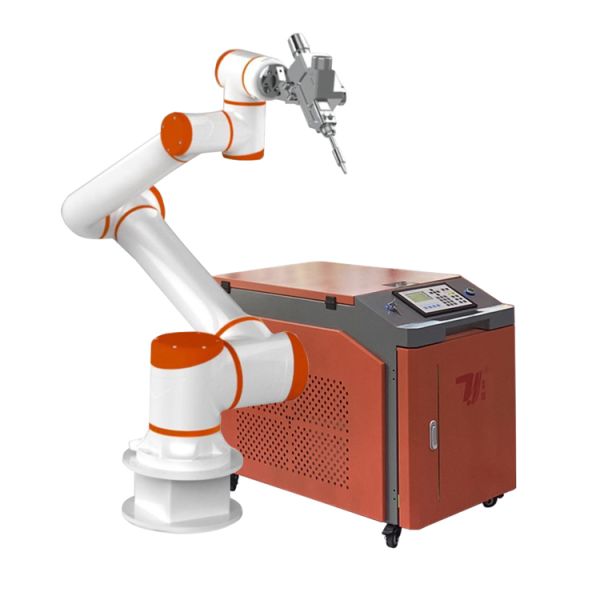

Hot Sale Fiber Laser Welding Machine with 6-axis Collaborative Cobot ,Multiple Sizes Are Available

User-Friendly Robotic Laser Welder with Offline Programming SoftwareUser-Friendly Robotic Laser Welder with Offline Programming SoftwareUser-Friendly Robotic Laser Welder with Offline Programming SoftwareUser-Friendly Robotic Laser Welder with Offline Programming Software

User-Friendly Robotic Laser Welder with Offline Programming Software

TECHNICAL GUIDANCE FOR ONTOLOGY

Robotic Arm Parameters

MaxArmspan

1077mm

Payload

7kg

Repeat Positioning

±0.02mm

ToolMax speed

3000mm/s

ControlBus/Freq

EtherCAT/1KHz

Rated power

260W

Temperature

-5~55℃

Humidity

5%~90%RH,non-condensing

Installation mode

Arbitrary angle

Protection Degree

IP65

weight

21kg

Noise level

≤60dB

Work port

1/0 Port

24V/18;DI:2D0:2AI

Tool Pot

COM Port

24V/1A;1RS485:1 EtherCAT
Joint Movement Parameters

Iotion Range

J1

-360°“360°

J2

-360°"360°

J3

-165°“165°

J4

-360°"360°

J5

-360°360°

J6

-360°“360°

Max Speed

J1

210°s

J2

210/s

J3

210°/s

J4

360°/s

J5

360°/s

J6

360°/s

User-Friendly Robotic Laser Welder with Offline Programming Software

TECHNICAL GUIDANCE FOR ONTOLOGY

TECHNICAL GUIDANCE FOR ONTOLOGY
Robotic Arm Parameters MaxArmspan 1460.7mm
Payload 6kg
Repeat Positioning ±0.05mm
ToolMax speed 3000mm/s
ControlBus/Freq EtherCAT/1KHz
Rated power 260W
Temperature -5~55℃
Humidity 5%~90%RH,non-condensing
Installation mode Arbitrary angle
Protection Degree IP65
weight 22kg
Noise level ≤60dB
Work port 1/O Port 24V/1A;DI;2D0;2AI
Tool Port COM Port 124V/1A;1RS485;1EtherCAT
Joint Movement Parameters Motion Range J1 -360°~360°
J2 -360°~360°
J3 -165°~165°
J4 -360°~360°
J5 -360°~360°
J6 -360°~360°
Max Speed J1 210°s
J2 210/s
J3 210°/s
J4 360°/s
J5 360°/s
J6 360°/s

User-Friendly Robotic Laser Welder with Offline Programming Software

TECHNICAL GUIDANCE FOR ONTOLOGY
Robotic Arm Parameters MaxArmspan 2027mm
Payload 20kg
Repeat Positioning ±0.05mm
ToolMax speed 4000mm/s
ControlBus/Freq EtherCAT/1KHz
Rated power 1500W
Temperature -5~55℃
Humidity 5%~90%RH,non-condensing
Installation mode Arbitrary angle
Protection Degree IP65
weight 68kg
Noise level ≤60dB
Work port 1/O Port 24V/1A;DI;2D0;2AI
Tool Port COM Port 124V/1A;1RS485;1EtherCAT
Joint Movement Parameters Motion Range J1 -360°~360°
J2 -360°~360°
J3 -165°~165°
J4 -360°~360°
J5 -360°~360°
J6 -360°~360°
Max Speed J1 180°s
J2 180°s
J3 210°/s
J4 270°/s
J5 270°/s
J6 270°/s

User-Friendly Robotic Laser Welder with Offline Programming Software
User-Friendly Robotic Laser Welder with Offline Programming Software

User-Friendly Robotic Laser Welder with Offline Programming SoftwareUser-Friendly Robotic Laser Welder with Offline Programming SoftwareUser-Friendly Robotic Laser Welder with Offline Programming SoftwareUser-Friendly Robotic Laser Welder with Offline Programming Software
