Specifications
Brand Name :
TAIYI
Model Number :
YLS-12000-RI
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us for the price
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
500 pieces per month
Delivery Time :
5-8 work days
Packaging Details :
Export standard packing
Condition :
New
Application :
Fiber Laser Cutting Machine
Laser type :
Fiber Laser
Wavelength :
1070nm
Brand :
IPG
power :
12000W
Description

IPG High Power 12KW 12000W YLS-12000-RI Fiber Laser Source for CNC Metal Fiber Laser Cutting MachineIPG High Power 12KW 12000W YLS-12000-RI Fiber Laser Source for CNC Metal Fiber Laser Cutting Machine

IPG High Power 12KW 12000W YLS-12000-RI Fiber Laser Source for CNC Metal Fiber Laser Cutting Machine

1. Optical characteristics

N

Characteristics

Test conditions

Symbol

Min.

Typ.

Max.

Unit

1

Operation Mode

CW / Modulated

2

Polarization

Random

3

Nominal Output Power*

Pnom

12

kW

4

Output Power Tuning Range, lower limit**

Relative to Pnom

5

%

5

Output Power Tuning Range, upper limit

100

105

%

6

Emission Wavelength

Output power: 12 kW

λ

1068

1070

1080

nm

7

Emission Linewidth

Δλ

5

8

nm

8

Switching ON/OFF Time

30

50

μs

9

Output Power Modulation Rate

10

kHz

10

Output Power Instability

Output power: 12 kW

Time interval: 1 hour (T=Constant)

±1

±2

%

11

Red Guide Laser Power

0.4

0.5

mW

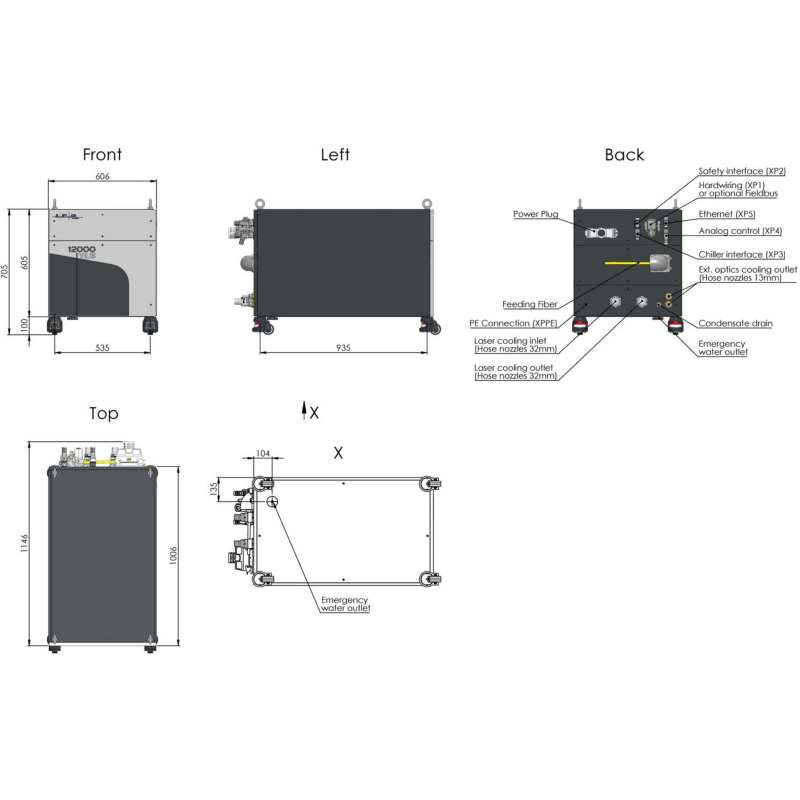

External layout

IPG High Power 12KW 12000W YLS-12000-RI Fiber Laser Source for CNC Metal Fiber Laser Cutting Machine

IPG High Power 12KW 12000W YLS-12000-RI Fiber Laser Source for CNC Metal Fiber Laser Cutting Machine

IPG High Power 12KW 12000W YLS-12000-RI Fiber Laser Source for CNC Metal Fiber Laser Cutting MachineIPG High Power 12KW 12000W YLS-12000-RI Fiber Laser Source for CNC Metal Fiber Laser Cutting Machine
