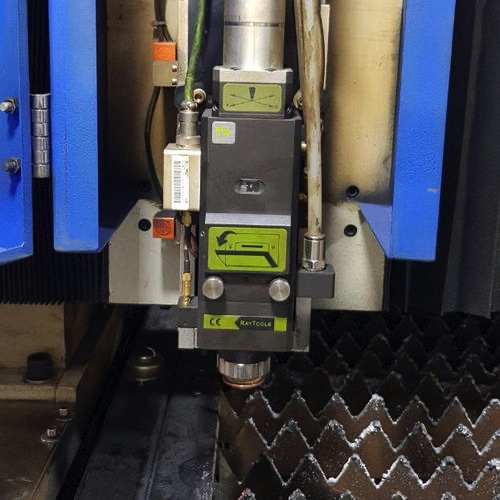

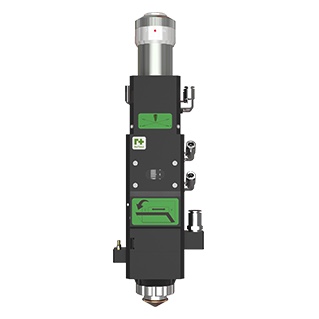

Raytools BT240S Laser Cutting Parts 3300w Fiber Laser Cutting Head
Raytools BT240S Laser Cutting Parts 3300w Fiber Laser Cutting Head
Raytools BT240S Laser Cutting Parts 3300w Fiber Laser Cutting Head
Raytools BT240S Laser Cutting Parts 3300w Fiber Laser Cutting Head
Specifications
Brand Name :
TAIYI
Model Number :
Raytools BT240S
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us for the price
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
500 pieces
Delivery Time :
5-8 work days
Packaging Details :
Export standard packing
Condition :
New
Warranty :
1 Year
Applicable material :
Metal Plastic
Application :
Laser Cutting
Product name :
Laser Metal Cutting Machine
Description

Raytools BT240S Laser Cutting Parts 3300w Fiber Laser Cutting Head

Product Details

The BT240S series Laser Cutting Heads are released based on the BT240 from Switzerland RAYTOOLS AG in 2017, which are suitable for medium and high power fiber lasers in industrial applications. Compared to the BT240 series, the upgraded version of BT240S series in dust-proof design and customer experience are made a comprehensive optimization. As we all know, collimation lens is very likely to be contaminated when inserting or removing optical fibers,so the BT240S series are avoided this risk by adding an top protective window to the collimation assembly. At the same time, the bottom protective window structure is also fully upgraded, we add a dust cover on it. Double protection design enhance the user experience in the replacement of protective window greatly, and the lens contamination risk is almost zero.

Specification

Power Rating ≤3.3KW
Clear Aperture 28mm
Collimator Focal length 100mm
Focusing Focal length 125mm/155mm/200mm
Cover glasses

φ24.9mm*1.5mm(CM)

φ27.9mm*4.1mm(FM)
Assist Gas Pressure ≤25bar
Weight ~3.5kg
Height Sensor(EtherCAT or ±10V optional)
Distance Range(1mm Recommended) 0.3-10mm
Calibration Auto Calibrating/Manual Calibrating
Response Time <1ms
Temperature Stability In the range of 0 to 45℃, the temperature stability is in the range of ±5%
Power Requirement 24V
Output (linear or optimization curve signal) 0~10V/+-10V Analog
