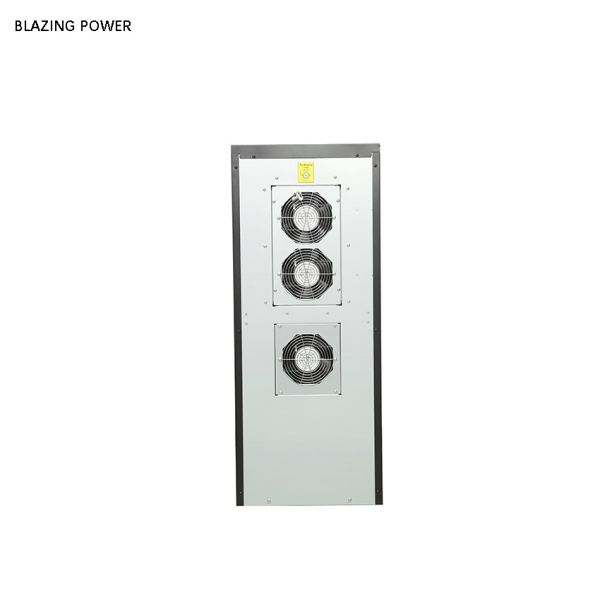

Pure Sinewave UPS Uninterruptible Power Supply 60KVA 48KW for Medical Devices
Pure Sinewave UPS Uninterruptible Power Supply 60KVA 48KW for Medical Devices
Pure Sinewave UPS Uninterruptible Power Supply 60KVA 48KW for Medical Devices
Pure Sinewave UPS Uninterruptible Power Supply 60KVA 48KW for Medical Devices
Specifications
Transfer Time :
Zero
Current Limit :
High overload, short-circuit: RMS Voltage Limit High Crest-Factor current: Peak Voltage Limit
Frequency :
50Hz&60Hz
Nominal Battery Voltage :
384 VDC (Based on 32pcs batteries)
Precision :
Stationary: ±1% Transitory: ±5% (load variations 100-0-100%)
Charging Current :
Default 10A; Maximum 40A; 5A@ full load
Brand Name :
BLAZING POWER
Model Number :
W-60KL
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
3000-5000$/Unit
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
Stock
Delivery Time :
3-5 Days
Packaging Details :
Pallet
Capcity :
60KVA/48KW
Input :
3 x 380VAC/400VAC (3Ph + N)
Waveform :
Pure Sinewave
Output :
3 x 380VAC/400VAC (3Ph + N)
Description
Medical Device Dedicated UPS
Security & Stability
  • Utilizes microprocessors for fully digital control of all UPS power conversion stages, enhancing system consistency and stability.
  • Incorporates controllable rectifier design to significantly improve grid adaptability, ensuring greater safety and reliability for the inverter.
  • Features a built-in output isolation transformer to minimize the impact of neutral-to-ground voltage and load harmonic currents on the inverter.
  • Independent battery interfaces prevent critical failures caused by installation errors, substantially reducing operational risks.
  • Over 90% of components utilize internationally renowned brands, with each unit undergoing 24-hour burn-in testing and validation before shipment.
Product Features
  • Double-conversion online design delivers pure sine wave output, providing critical loads with stable voltage and frequency power supply free from grid disturbances.
  • During mains failure, the UPS inverts battery energy to the load, ensuring uninterrupted power output.
  • High-frequency double-conversion architecture with output isolation transformer and advanced fully digital control technology for stable, clean, and uninterrupted power
  • Diverse communication solutions including MODBUS, RS232, and expandable smart slot for convenient configuration and monitoring
  • Primary components include rectifier and inverter modules forming double-conversion circuit (AC to DC to AC), plus static bypass, maintenance bypass, and battery charge/discharge circuits
  • Mains power and bypass switching via thyristors in reverse parallel configuration acting as transfer switches
