Specifications
Brand Name :
LEMAR
Model Number :
D28
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
500-1000 USD
Payment Terms :
L/C,D/A,T/T,Western Union,D/P
Supply Ability :
500 units/month
Delivery Time :
15-25 work days
Packaging Details :
3000*2000*300mm
Table Size :
1000×500, 1000×1000, 1200×800, 1500×1000, 2000×1000, 2000×1500 mm (Customizable)
Loading Capacity :
1–3 t/㎡ (D16) / 3–7 t/㎡ (D28)
Working Height :
650–850 mm (Standard 800 mm)
Adjustable Foot :
±20 mm
Feature :
High Precision, Flexible Positioning, Anti-weld Slag, Durable, Reusable
Application :
Welding, Assembly, Testing, Marking, Robot Welding Station
Hole System :
D16 (φ16mm, 50×50mm) / D28 (φ28mm, 100×100mm)
Material :
High Strength Cast Steel / S355JR Steel Plate
Surface Hardness :
HRC 45–55
Description
2D Welding Table with Uniform Hole Distribution System
The 2D welding table with uniform hole distribution system is a standard tooling platform designed for high-precision, repeatable welding and metal processing. Its core feature is a table surface covered with a precisely and evenly distributed grid of positioning holes. Combined with modular fixtures, it enables rapid workpiece clamping, precise positioning, and flexible assembly, making it a fundamental tooling solution for modern welding and sheet metal processing.

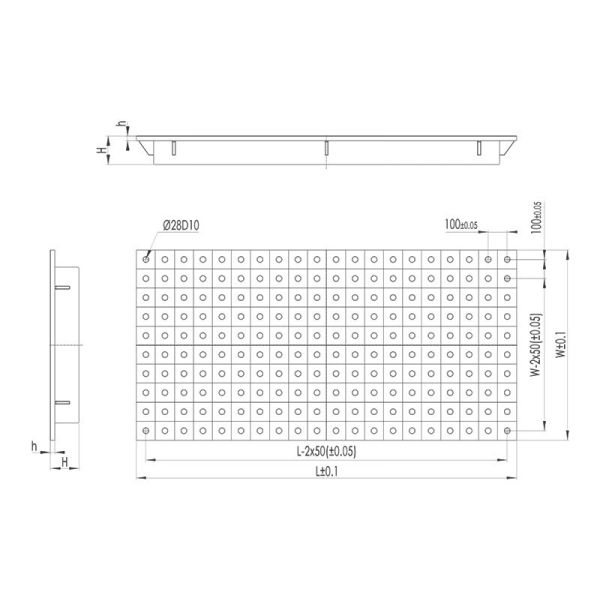

2D Welding Workbench Welding Fabrication Table With Uniform Hole Distribution System
Table Material High Strength Cast Steel / S355JR Steel
Hole System D16 / D28 (Optional)
Hole Diameter φ16 mm / φ28 mm
Hole Distance 50 mm × 50 mm / 100 mm × 100 mm
Working Height 650-850 mm (Standard 800 mm)
Surface Treatment Plasma Nitriding / Quenching
Flatness Accuracy ≤ 0.1 mm/m
Loading Capacity 1-3 t/㎡ (D16) / 3-7 t/㎡ (D28)
Adjustable Foot ±20 mm
Standard Accessory Location pin, clamp, angle plate, support block, etc.
Surface Hardness HRC 45-55
2D Welding Workbench Welding Fabrication Table With Uniform Hole Distribution System 2D Welding Workbench Welding Fabrication Table With Uniform Hole Distribution System
  • Quick clamping, reducing changeover time
  • High welding precision and strong workpiece consistency
  • Multi-purpose platform, saving significant tooling costs
  • Multiple units can be joined together to produce large and long parts
  • Resistant to welding spatter, long service life
  • Suitable for manual welding, robotic welding, inspection, and assembly
Adaptability
  • 2D welding table with uniform hole distribution system, fully compatible with European standard hole systems of the same specifications
  • Compatible with most standard fixtures on the market
  • Supports manual welding, MIG welding, TIG welding, and robotic welding
  • Can be expanded with rotating frames, lifting frames, and fume extraction systems
  • Can be used as a testing platform, assembly platform, and scribing platform - a multi-purpose platform
Customization Capabilities
  • Customizable dimensions, hole positions, thickness, and load-bearing capacity
  • Customizable models include those with wheels, drawers, and smoke extraction
  • Customizable tilting tabletops, rotating worktables, and lifting platforms
  • OEM/ODM production available according to customer drawings
  • Supports brand labeling and customized packaging
Installation and Debugging
  • The 2D welding table with uniform hole distribution system requires no complicated installation upon arrival; it's ready to use right out of the box
  • Comes with adjustable support legs; leveling can be fine-tuned for uneven ground
  • When splicing multiple units, simply tighten the positioning pins and bolts; a single person can complete the task
  • No electrician or mechanic required; it can be put into use in 10-30 minutes
  • Flatness and hole accuracy have been tested before leaving the factory; no adjustments are needed
