60T Heavy Duty Welding Turning Rolls for Pressure Vessel
Product Overview

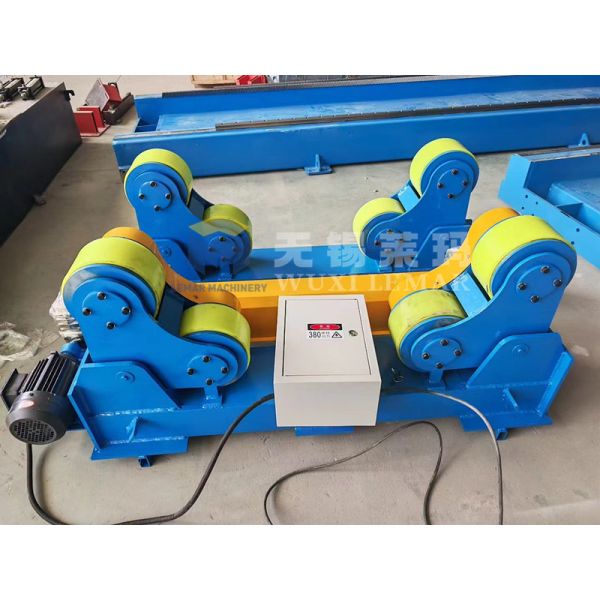

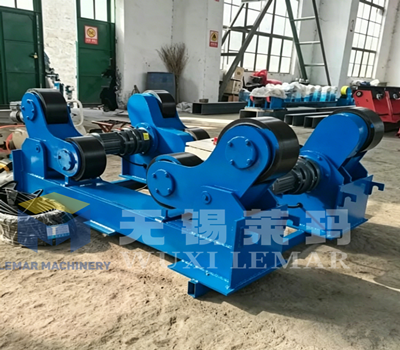

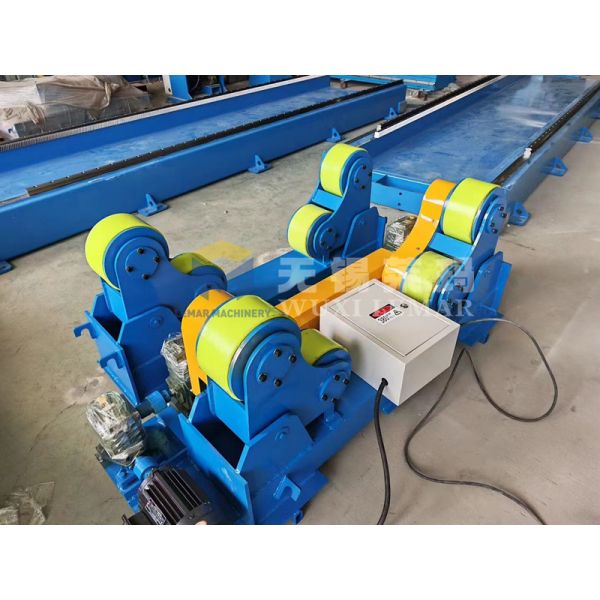

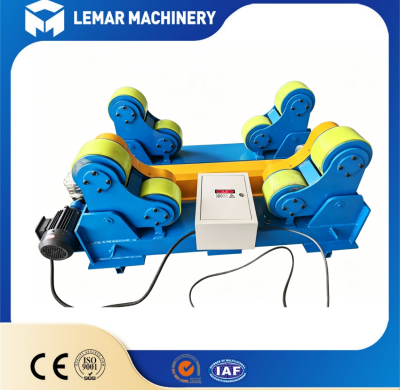

60 Ton Self-Aligning Welding Rotator is heavy-duty equipment specially designed for tank and cylinder welding. It can automatically adapt to workpiece diameter without manual roller distance adjustment.
It is suitable for rotary welding of cylinders, storage tanks, pressure vessels, wind tower sections, boilers and large-diameter pipes within 60 tons. It can work with submerged arc welding, MIG/TIG welding and welding robots.
60T Heavy Duty Self-Aligning Welding Turning Rolls with Variable Frequency Drive for Pressure Vessels 60T Heavy Duty Self-Aligning Welding Turning Rolls with Variable Frequency Drive for Pressure Vessels

Product Specifications
Model Loading Capacity (kg) Pipe/Tank Diameter (mm) Rubber Roller Dia. & Width (mm) Steel Roller Roller Speed (m/h) Motor Power (kw) Speed Adjust
ZTG-5 5000 Φ250-2300 Φ250*100 Φ240*20*2 6-60 0.75 Variable Frequency Drive (VFD)
ZTG-10 10000 Φ320-2800 Φ300*120 Φ290*25*2 6-60 1.1 Variable Frequency Drive (VFD)
ZTG-20 20000 Φ500-3500 Φ350*120 Φ340*30*2 6-60 1.5 Variable Frequency Drive (VFD)
ZTG-30 30000 Φ600-3800 Φ350*120 Φ340*30*2 6-60 2.2 Variable Frequency Drive (VFD)
ZTG-40 40000 Φ600-4200 Φ400*120 Φ390*40*2 6-60 3 Variable Frequency Drive (VFD)
ZTG-50 50000 Φ700-4500 Φ400*120 Φ390*40*2 6-60 4 Variable Frequency Drive (VFD)
ZTG-60 60000 Φ750-4800 Φ450*120 Φ440*50*2 6-60 4 Variable Frequency Drive (VFD)
ZTG-80 80000 Φ850-5000 Φ500*120 Φ490*60*2 6-60 5.5 Variable Frequency Drive (VFD)
ZTG-100 100000 Φ1000-5500 Φ500*120 Φ490*70*2 6-60 7.5 Variable Frequency Drive (VFD)
ZTG-150 150000 Φ1100-6000 Φ500*120 Φ600*Φ280 6-60 2*5.5 Variable Frequency Drive (VFD)
ZTG-250 250000 Φ1200-7000 / Φ700*380 6-60 2*5.5 Variable Frequency Drive (VFD)
ZTG-500 500000 Φ1800-8000 / Φ850*350 6-60 2*7.5 Variable Frequency Drive (VFD)
60T Heavy Duty Self-Aligning Welding Turning Rolls with Variable Frequency Drive for Pressure Vessels60T Heavy Duty Self-Aligning Welding Turning Rolls with Variable Frequency Drive for Pressure Vessels

Factory Configuration
60T Heavy Duty Self-Aligning Welding Turning Rolls with Variable Frequency Drive for Pressure Vessels 60T Heavy Duty Self-Aligning Welding Turning Rolls with Variable Frequency Drive for Pressure Vessels
Standard Accessories Optional Accessories
Drive and Idler Welding Rotator Unit Anti-drift Axial Alignment Device
VFD Electric Control Cabinet Welding Earth Grounding Device
Handheld Control Pendant High Temperature Protective Cover
PU Load-bearing Rollers Robot Linkage Interface
Matching Power Cables and Terminals Explosion-proof Electric Cabinet
Anchor Bolt Fastener Set Heightening Base Support
Operation Manual and Certificate of Conformity Synchronous Speed Control System

Main Features
  • Self-aligning Design: Automatically adapt to different cylinder diameters, no manual roller spacing adjustment required, saving setup time.
  • Heavy-load & Stable Performance: 60-ton super load capacity, thickened steel frame ensures rigid structure and stable operation for large vessels.
  • High-quality PU Rollers: Wear-resistant, anti-slip and silent PU rollers, no scratching or damage to workpiece surface.
  • Stepless Variable Frequency Speed: VFD speed regulation provides smooth and uniform rotation, ensuring high-quality circular welding seams.
  • High Welding Precision: Low vibration and high concentricity rotation effectively improve welding uniformity and finished product quality.

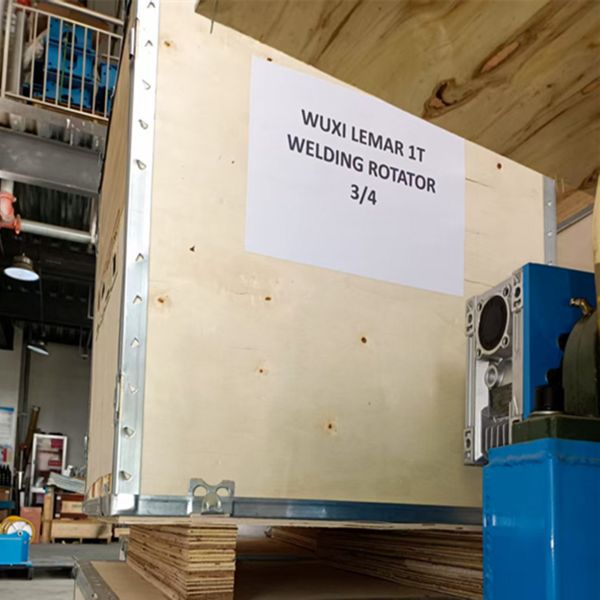

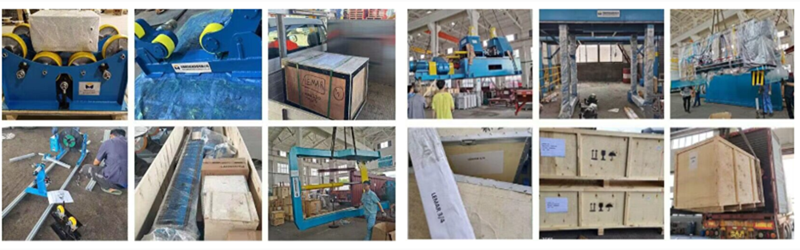

Product Packaging
60T Heavy Duty Self-Aligning Welding Turning Rolls with Variable Frequency Drive for Pressure Vessels 60T Heavy Duty Self-Aligning Welding Turning Rolls with Variable Frequency Drive for Pressure Vessels 60T Heavy Duty Self-Aligning Welding Turning Rolls with Variable Frequency Drive for Pressure Vessels

Customer Feedback
60T Heavy Duty Self-Aligning Welding Turning Rolls with Variable Frequency Drive for Pressure Vessels

Frequently Asked Questions
What is the maximum load capacity?
It is designed for 60 tons maximum loading, suitable for heavy tank and cylinder welding.
Does it need manual roller distance adjustment?
No. It adopts self-aligning design, automatically adapts to different workpiece diameters.
How to control the rotating speed?
Equipped with VFD frequency conversion control, stepless speed adjustment for smooth rotation.
Can it match with welding robot?
Yes, it reserves robot linkage interface, compatible for automatic welding production line.
Are the rollers easy to damage the workpiece?
Adopts high wear-resistant PU rollers, silent running and no scratch on vessel surface.
