BY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal Control
BY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal Control
BY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal Control
BY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal Control
BY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal Control
BY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal Control
BY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal Control
BY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal Control
Specifications
Max Eccentricity Distance :
150mm
Model Number :
BWJ-1
Motor Power :
0.18kw
Postioner Type :
Seat Type
MOQ :
1
Delivery Time :
10-20 work days
Exported to :
USA, UK, Canada, Greece, Poland, Brazil
Payment Terms :
T/T,D/P,D/A,L/C
Packaging Details :
32.00cm * 27.00cm * 23.00cm
Model NO. :
BWJ-1
Brand Name :
LEMAR
Table Diameter :
180mm
Place of Origin :
WUXI
Operation Control :
Foot Pedal + Manual Control
Price :
500-1000USD
Pedal Switch :
Yes
Supply Ability :
500 units/month
Rated Loadight :
10kg (Horizontal)
Certification :
CE
Description

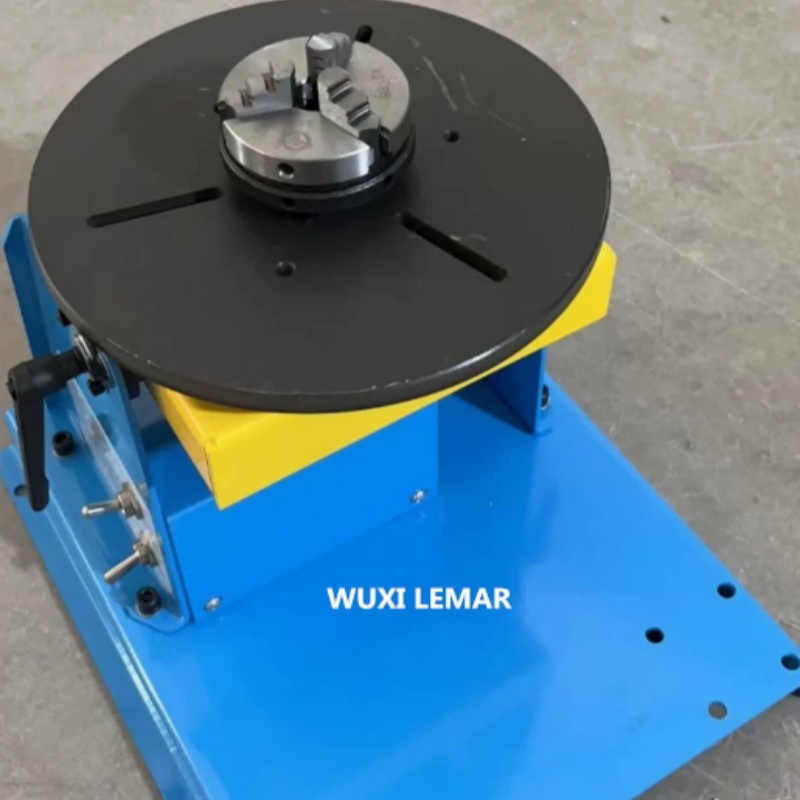

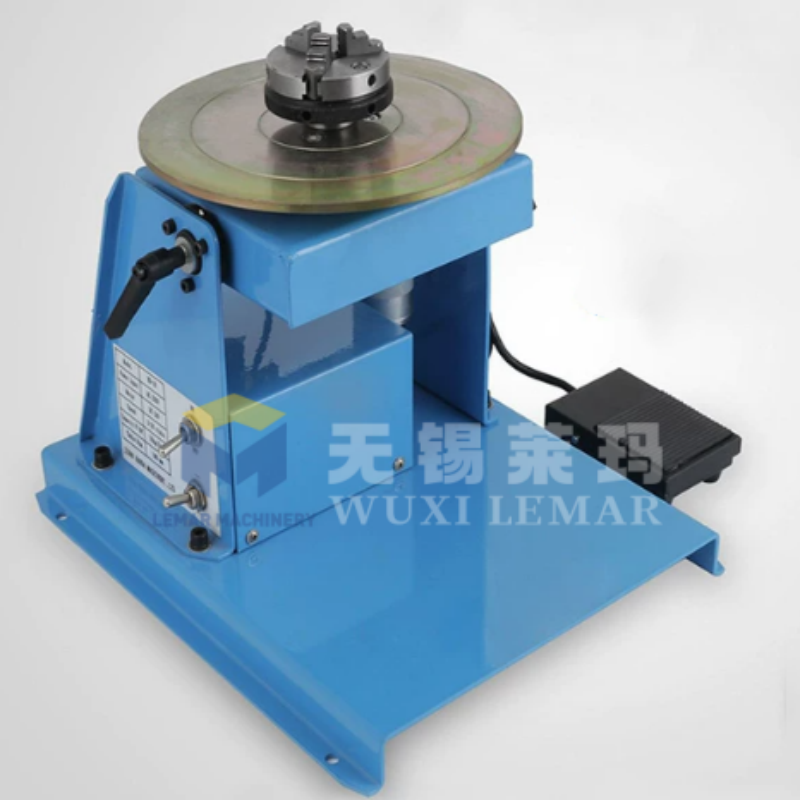

BY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal Control

Our 10kg welding positioner is a lightweight rotary welding turntable specially designed for small cylindrical and flange workpieces. The worktable can tilt from 0° to 90° with worm gear self-locking structure, locking workpiece angle firmly during welding.

It adopts stepless speed regulation for stable rotation, matching TIG, MIG and argon arc welding. Standard fitted with 3-jaw chuck for reliable clamping. Foot pedal control frees operator's hands, greatly improving welding efficiency and seam quality.

BY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal ControlBY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal Control

Core Advantages
  • 0-90° tilting table with worm gear self-lock, fix workpiece angle steadily
  • Stepless rotation speed control, provides smooth and uniform rotary motion

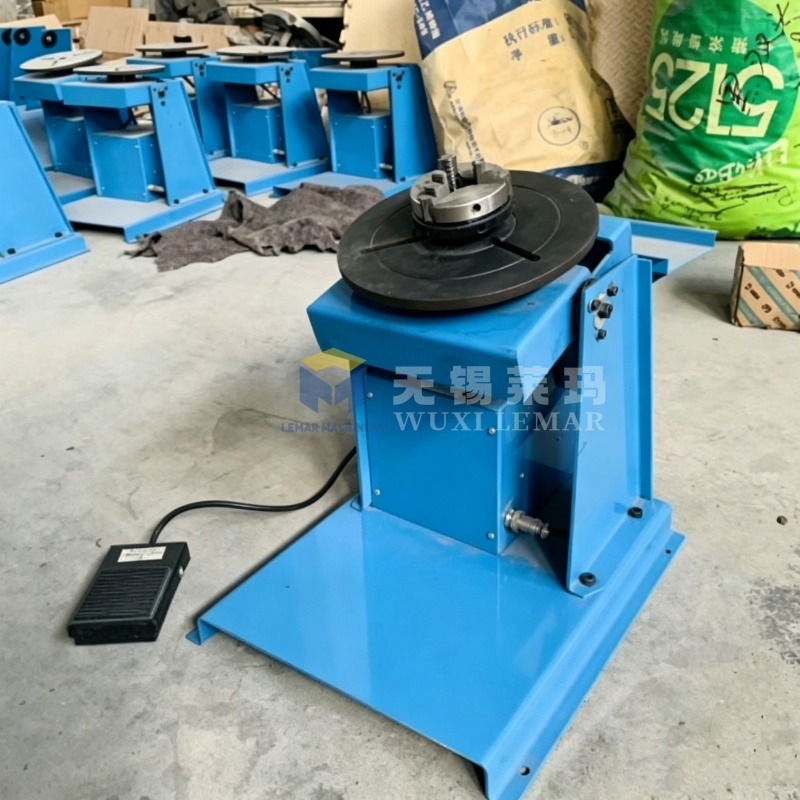

  • Foot pedal operation, hands-free control for convenient welding work
  • Compact mini frame, small footprint for limited workshop space
  • Anti-interference design, compatible with TIG / MIG precision welding
Technical Specifications
Item Specification
Model BY-10
Rated Horizontal Load 10kg
Rated Vertical Load (90°) 5kg
Table Diameter 180mm
Tilting Angle 0~90°
Rotation Speed 2~20r/min stepless adjustable
Standard Chuck K65 3-jaw chuck
Power Supply AC 110V/220V, 50/60Hz
Control Mode Foot pedal + control box
Certification CE
Warranty 1 Year
Applications
BY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal ControlBY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal Control
  • Small pipe circumferential welding
  • Flange and fitting welding
  • Round workpiece precision welding
  • Small cylinder seam welding
  • Metal prototype fabrication
  • Workshop batch small parts welding
  • Welding test & sample processing
Package & Shipment
  • Package: Plywood case, moisture-proof and shockproof for sea or air transport
  • Loading Port: Shanghai / Ningbo / Qingdao
  • Delivery Time: 7-15 working days after receiving deposit
  • Shipping Method: Sea freight, air freight or express available

BY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal ControlBY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal Control

After-sales Service
  • 12-month warranty for the whole machine, excluding wearing parts
  • Free technical consultation and remote operation guidance
  • Spare parts support with competitive price after warranty period
  • Quick response within 24 hours for technical problems

BY-10 10kg Welding Positioner with 3-Jaw Chuck Foot Pedal Control

Frequently Asked Questions
What is the max load capacity of this positioner?
Horizontal load 10kg; when table tilts to 90°, max vertical load is 5kg.
Can the table tilt to 90 degrees?
Yes, 0-90° adjustable tilting with worm gear self-locking to keep angle stable.
What chuck comes as standard?
Standard K65 three-jaw chuck, K80 chuck optional.
What welding types can it support?
Suitable for TIG, MIG, argon arc welding for small pipe and flange workpieces.
Is foot pedal included?
Yes, foot switch is included for hands-free rotation control.
