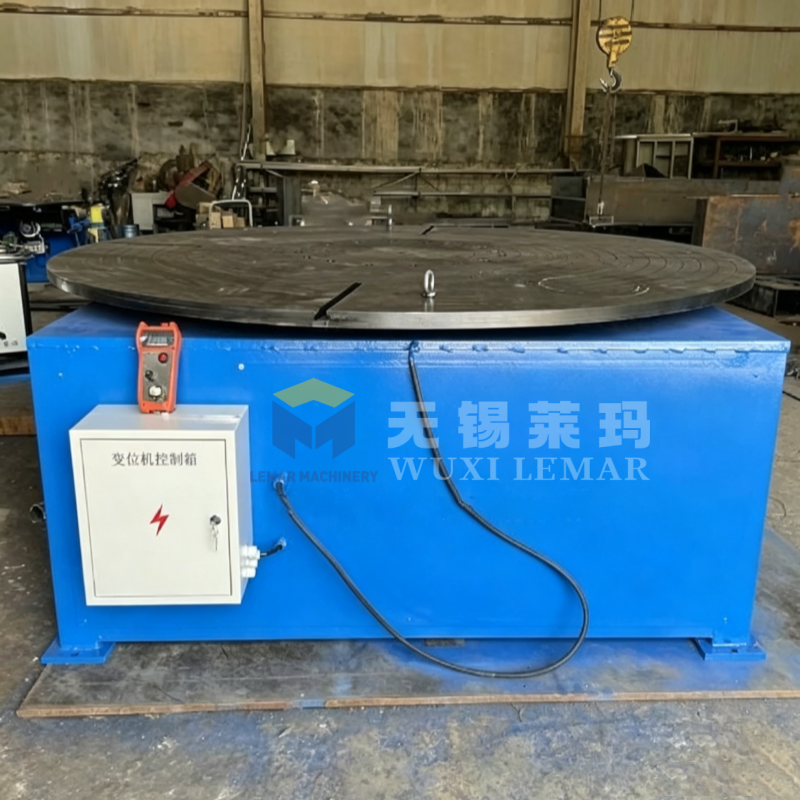

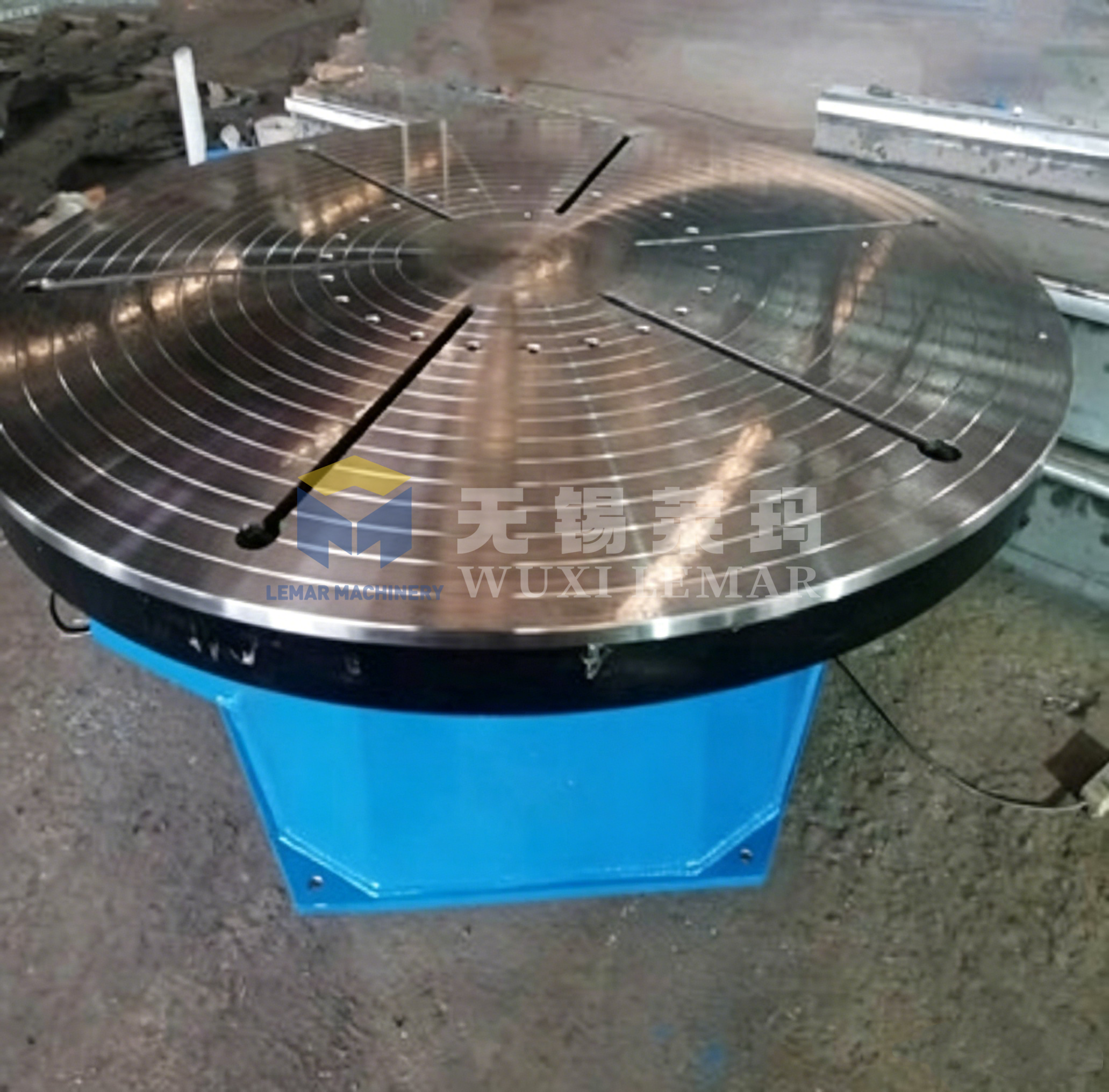

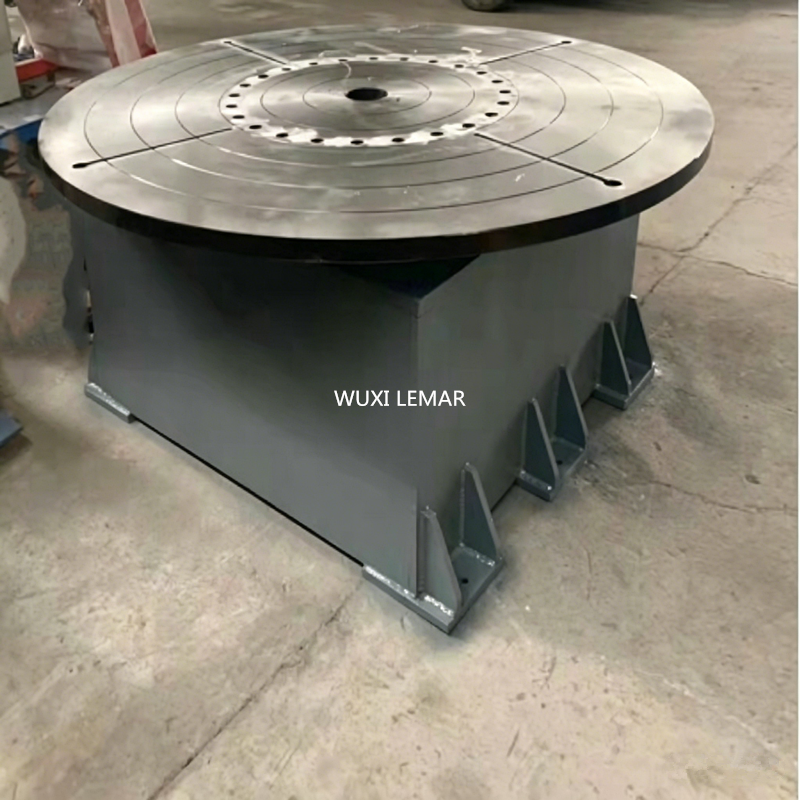

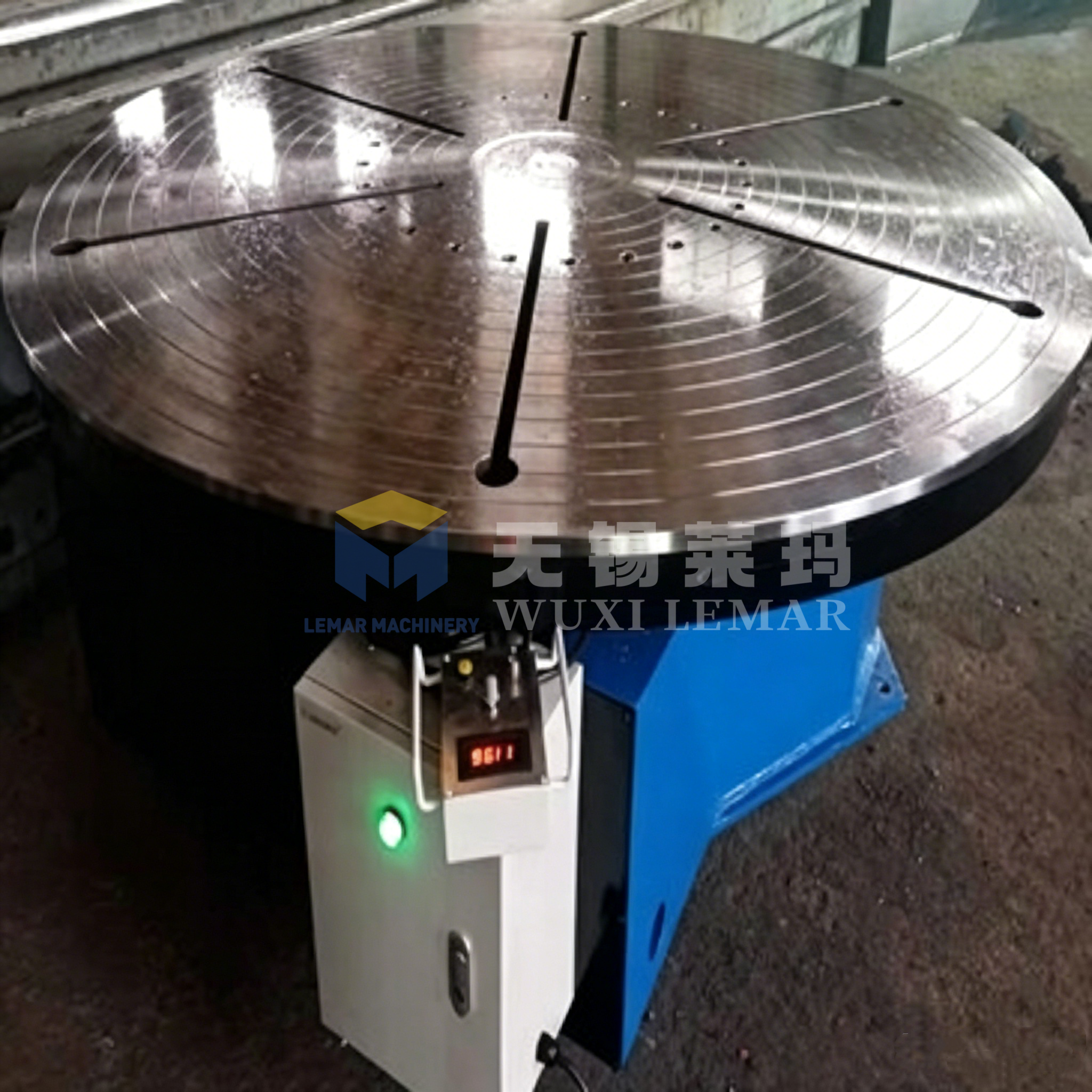

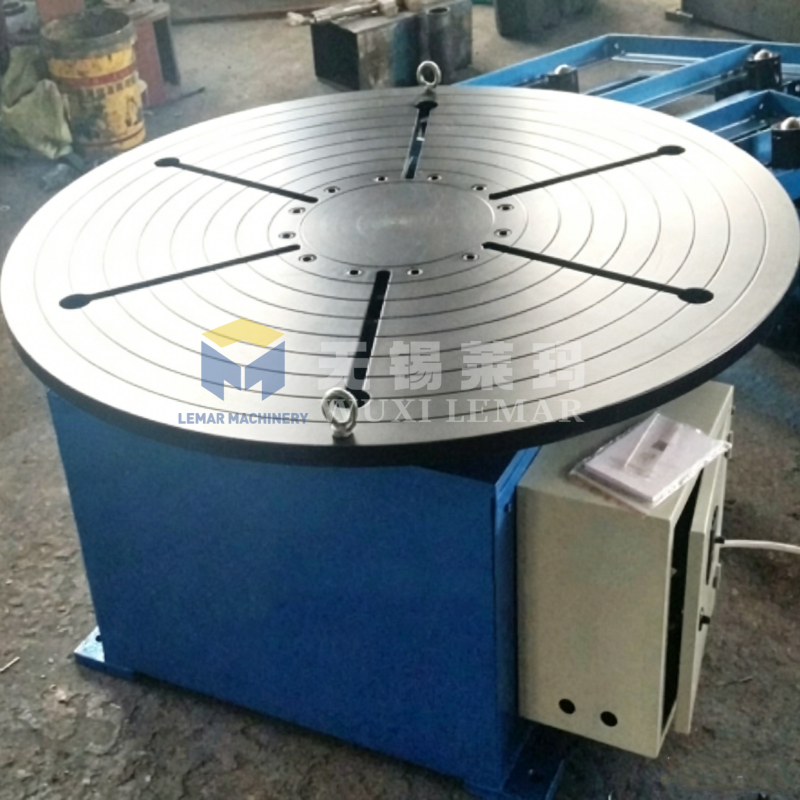

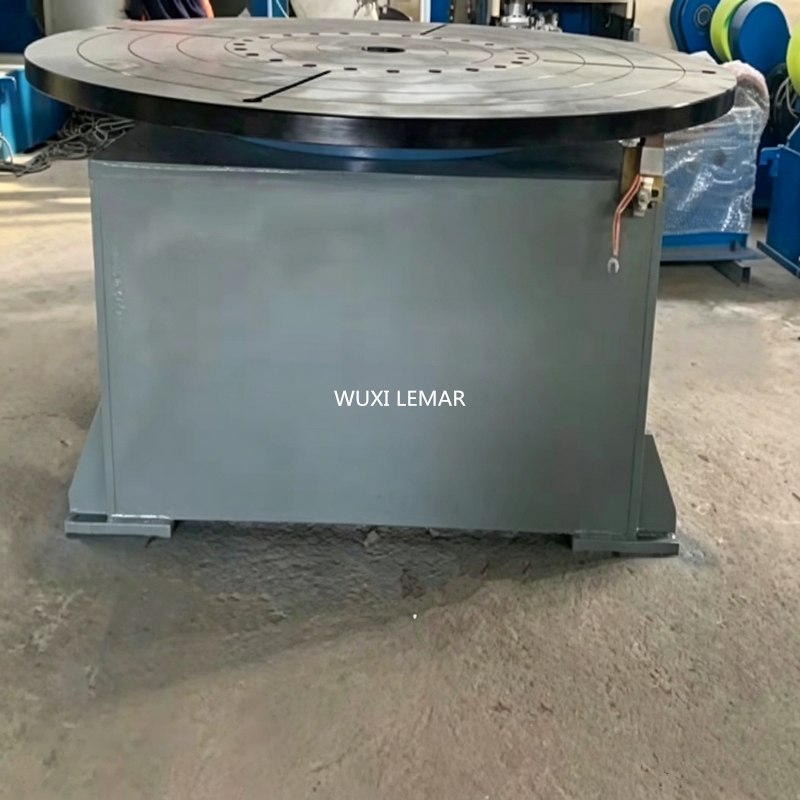

This 1 ton welding rotary table features a heavy-duty circular T-slot worktable for easy clamping of fixtures and workpieces. It utilizes VFD stepless speed regulation for horizontal rotation and is widely used for circumferential welding, assembly, and positioning of circular workpieces. The table offers a compact structure, stable rotation, and simple operation. Custom table diameter, load capacity, and working voltage options are available.

• Circular worktable with multiple T-slots for flexible jig installation
• VFD stepless speed control for smooth and uniform rotation
• Heavy load bearing frame for stable operation under rated 1000kg load
• Hand pendant remote control: forward, reverse, start, stop & speed adjustment
• Emergency stop button and overload protection for operational safety
• Compact base design with small floor space and easy installation
• Customizable table size, rotation speed, and working voltage

• Flange circumferential welding
• Pipe fitting welding and assembly
• Small cylinder & thin vessel welding
• Round metal parts positioning & machining
• Valve body and circular workpiece fabrication
• Circular workpiece automatic welding production

• The motor drives the rotary table through a reducer to achieve horizontal rotation
• VFD system continuously adjusts rotation speed to meet different welding requirements
• Multiple T-slots on the circular table firmly clamp workpieces or fixtures
• Supports clockwise and counter-clockwise rotation for circumferential seam welding
• Overload protection automatically cuts off power under overload conditions

Payment Terms: T/T, L/C

Port: Shanghai / Ningbo

Lead Time: 7-15 working days upon deposit

Packing: Plastic film wrapped for main machine; plywood case for control box

Shipping Method: Sea freight, air freight or land transport as requested
