300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding
300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding
300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding
300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding
300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding
300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding
300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding
300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding
Specifications
Model Number :
BWJ-30
Tilting Angle :
0‑90 Degree
Price :
500-1000USD
Application :
Pipe, Flange, Cylinder Welding
Certification :
CE
Speed Control :
VFD Stepless Speed Regulation
MOQ :
1
Delivery Time :
10-20 work days
Faceplate Type :
T‑slot Faceplate
Customizable :
Voltage, Faceplate, Accessories Supported
Payment Terms :
D/P,T/T,D/A,L/C
Drive Typ :
Worm‑gear Reducer Driving
Supply Ability :
500 units/month
Power Supply :
220V/380V 50Hz, Custom Voltage Available
Brand Name :
LEMAR
Load Capacity :
300kg (Horizontal)
Packaging Details :
65.00cm * 56.00cm * 64.00cm
Place of Origin :
WUXI
Control Method :
Hand Control Box + Foot Pedal
Description
300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding
300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding

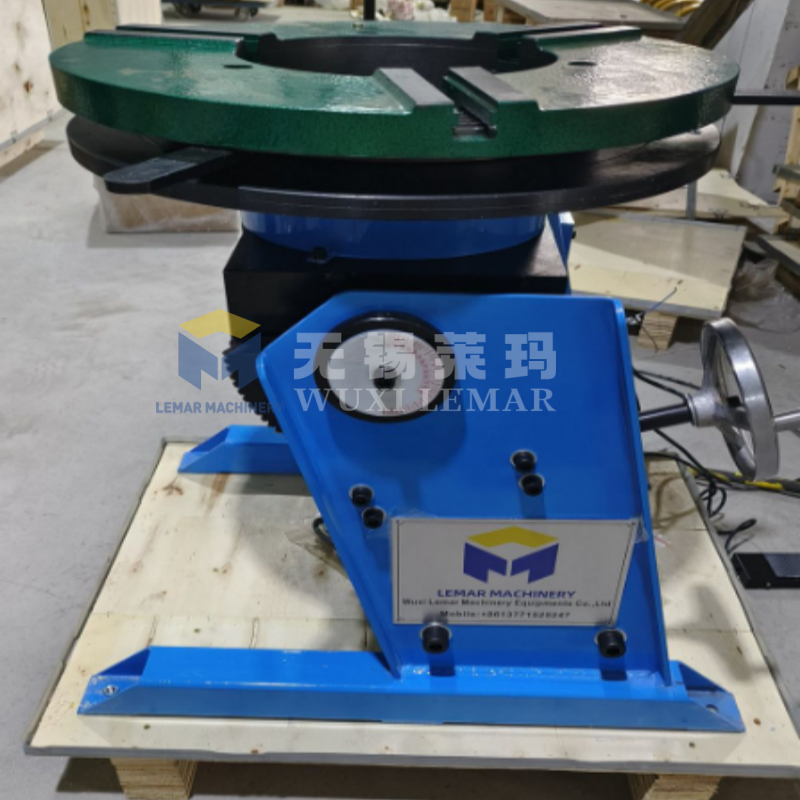

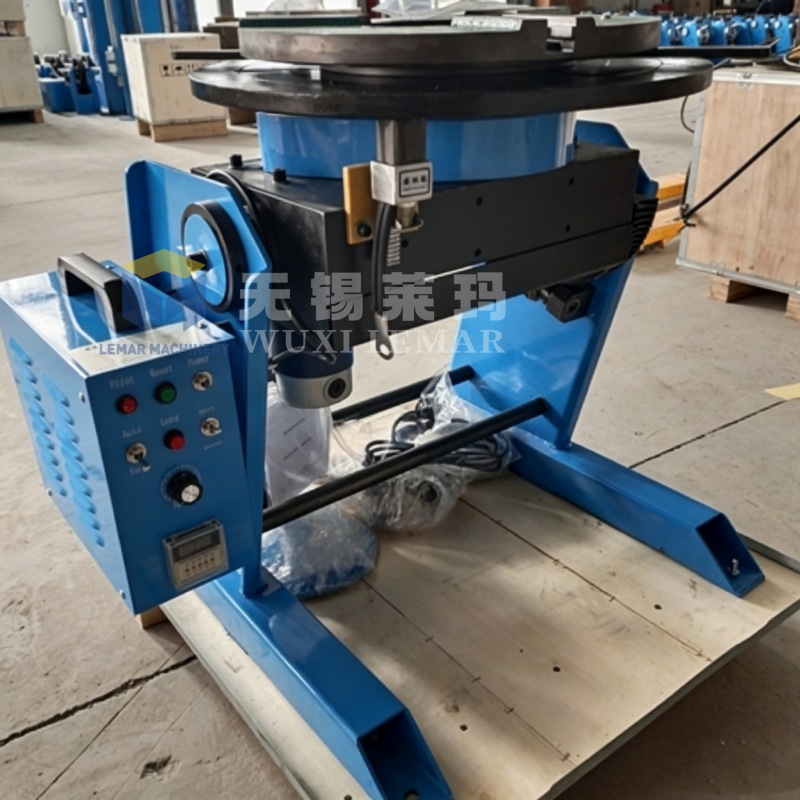

The 300kg Welding Positioner is practical welding auxiliary equipment, also known as a welding turning table. It enables 360° workpiece rotation and 0-90° tilting adjustment, helping operators complete circumferential seam welding, assembly, and grinding work. VFD stepless speed ensures stable rotation for small to medium cylindrical workpieces.

Main Features
300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding
  • 300kg horizontal rated load, stable bearing for medium-size workpieces
  • 0-90 degree tilting angle, adjusting workpiece to ideal flat welding position
  • VFD stepless speed regulation with forward & reverse rotation function
  • T-slot faceplate for easy installation of chucks and various clamping fixtures
  • Compact welded steel frame with good rigidity for long-term workshop operation

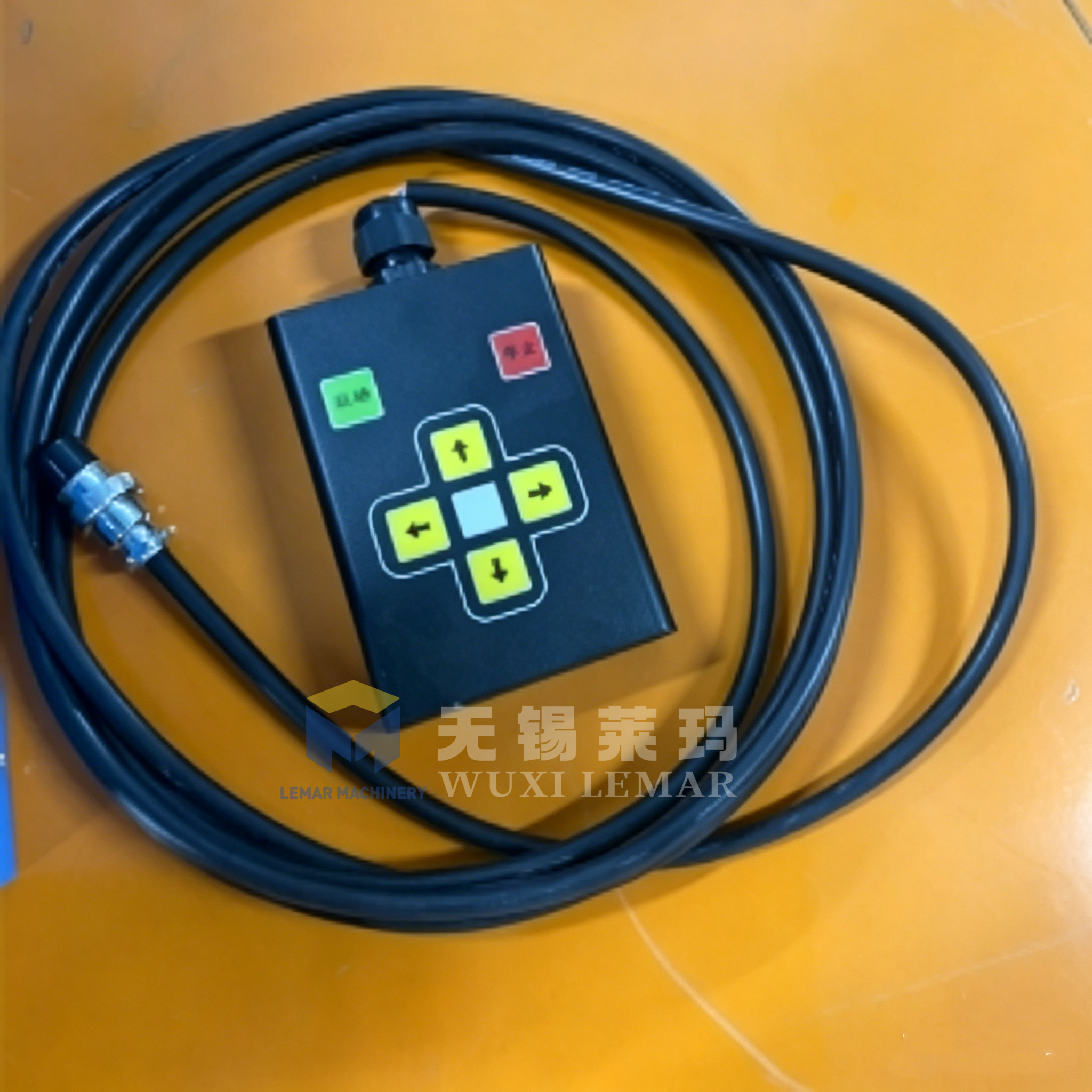

  • Hand control box plus foot pedal for convenient field operation
  • Support for customized voltage, faceplate size and optional accessories
Technical Parameters
Item Specification
Model BWJ-300 Welding Positioner
Horizontal Rated Load 300 kg
Vertical Allowable Load 150 kg
Faceplate Diameter Φ600 mm
Tilting Angle 0-90°
Rotation Speed 0.2-2.5 r/min, VFD stepless speed
Rotation Motor Power 0.2 kW
Power Supply 220V/380V 50Hz, custom voltage supported
Control Mode Hand control box + Foot pedal
Net Weight About 145 kg
Optional Configuration List
300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding

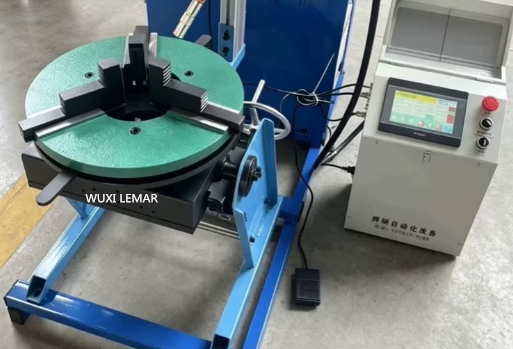

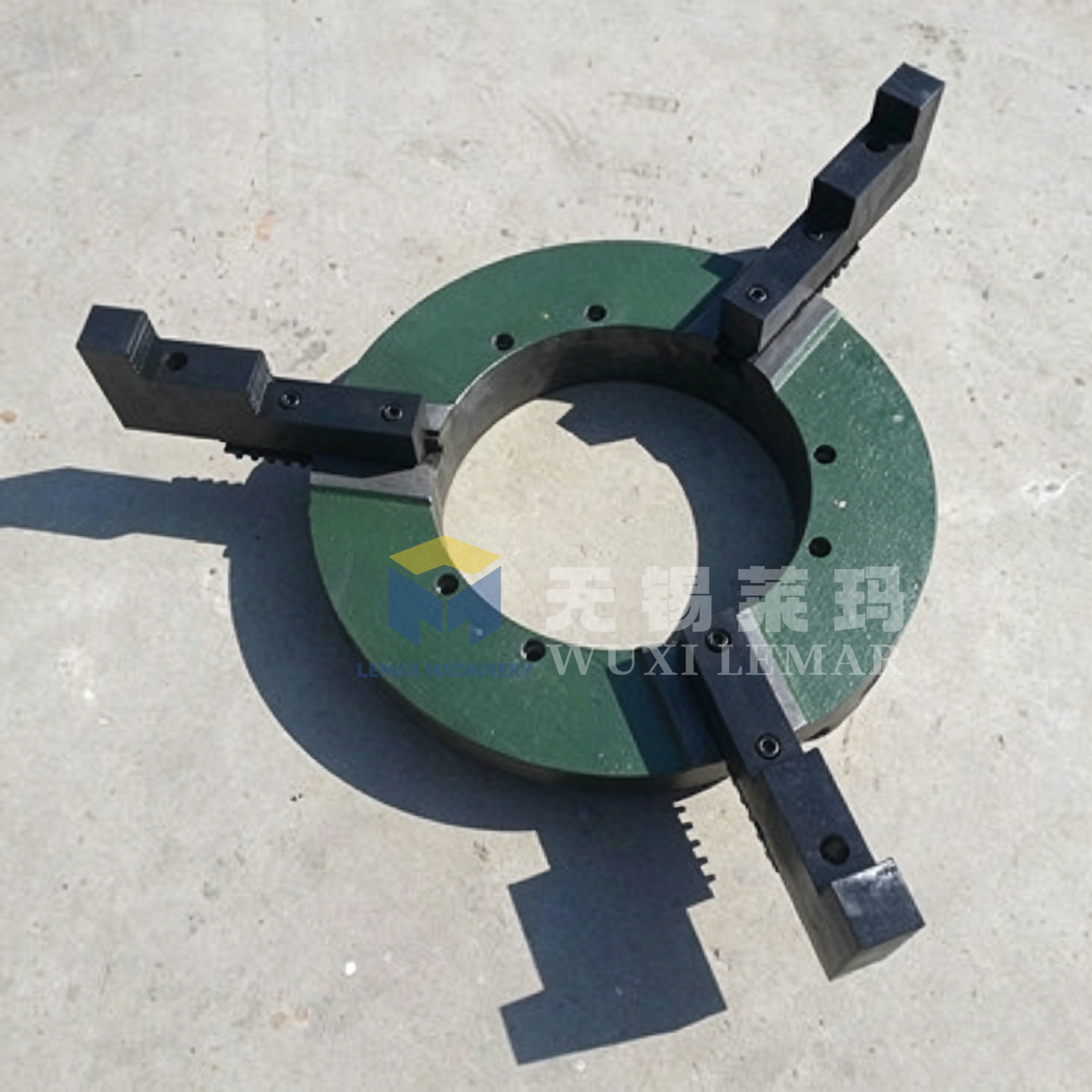

  • 3-jaw self-centering chuck for fast workpiece clamping
  • Wireless remote control for flexible workshop operation
  • Larger-size T-slot faceplate for bigger workpieces
  • Custom motor for 415V-60Hz international power grid
  • Welding earth-return copper brush assembly
Order & Delivery Notice
  • Standard production lead time: 12-18 working days after formal confirmation
  • Heat-treated wooden case for sea-worthy export packaging
  • Key components well protected to avoid damage in long-distance transport
  • 1-year whole machine warranty, wearing parts excluded
  • Online technical guidance for installation, commissioning and daily troubleshooting

300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding

Custom Note

We can adjust power supply voltage, faceplate dimension and match different chucks according to customer actual working conditions.

Frequently Asked Questions
Q1: What workpiece can this 300kg welding positioner handle?
A1: This welding turning table is suitable for flanges, short pipes, small cylinders and circular mechanical parts. The horizontal rated load is 300kg, please do not exceed the loading limit.
Q2: Can I change the rotation speed of the welding positioner?
A2: Yes. It adopts VFD stepless speed regulation. Users can adjust rotating speed freely, with forward and reverse rotation function for circumferential seam welding.
Q3: Is custom service available for this welding auxiliary equipment?
A3: Sure. We support custom power supply voltage, faceplate size. Matching 3-jaw chuck and other accessories are optional according to your working condition.
Q4: What is the delivery time for the 300kg welding positioner?
A4: Standard lead time is 12-18 working days after order confirmation. Goods are packed in seaworthy heat-treated wooden case for overseas shipment.
Q5: What after-sales support can you provide?
A5: The machine comes with 1-year warranty (wearing parts excluded). We offer online technical guidance for installation, commissioning and daily troubleshooting.
