200kg Tilting Welding Positioner for Pipe & Small Cylinder Welding
200kg Tilting Welding Positioner for Pipe & Small Cylinder Welding
200kg Tilting Welding Positioner for Pipe & Small Cylinder Welding
200kg Tilting Welding Positioner for Pipe & Small Cylinder Welding
200kg Tilting Welding Positioner for Pipe & Small Cylinder Welding
200kg Tilting Welding Positioner for Pipe & Small Cylinder Welding
Specifications
Supply Ability :
500 units/month
Filt Mode :
Manual
Model Number :
BWJ-20
Tilting Range :
0°–90°
Payment Terms :
D/A,L/C,D/P,T/T
Suitable Chuck :
Kd-150/200/300/400/500/600
Price :
500-1000USD
Positioner Level Height :
380mm
Certification :
CE
Rotaion Speed :
0.05-0.5rpm
MOQ :
1
Delivery Time :
10-20 work days
Vertical Loading :
100kg
Welder Holder :
Yes
Brand Name :
LEMAR
Model NO. :
BWJ-20
Place of Origin :
WUXI
Voltage :
110V/220V
Packaging Details :
50.00cm * 47.00cm * 42.00cm
Description
200kg Tilting Welding Positioner for Pipe & Small Cylinder Welding
Product Overview

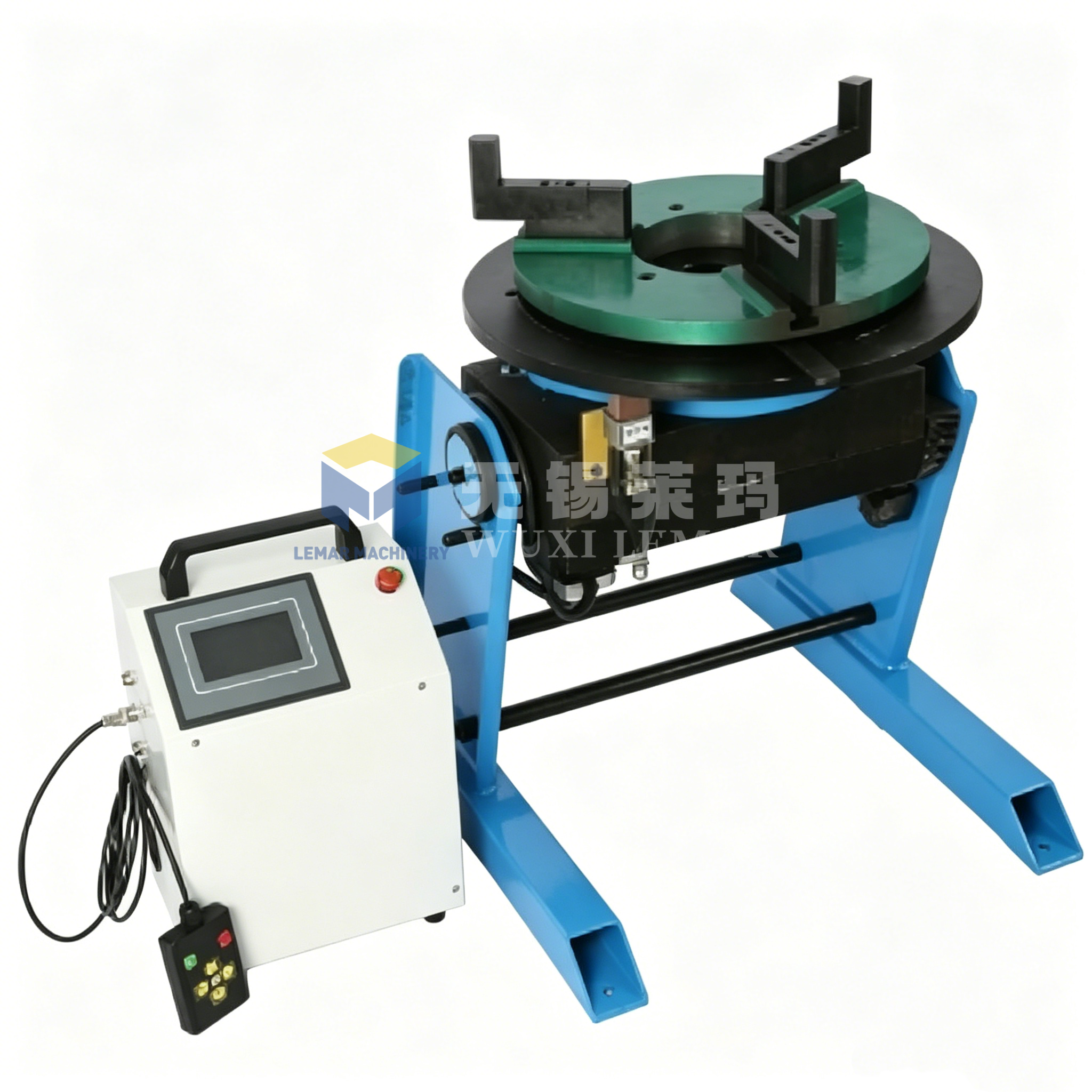

The 200kg welding positioner is a lightweight rotary tilting workstation designed for small workpieces. Featuring variable frequency speed control, it can tilt from 0° to 90° and drive workpieces to rotate steadily. Operators can easily achieve optimal welding positions to enhance weld seam quality and working efficiency.

This positioner is widely applied in flange, pipe fitting, small cylinder, hardware component, and valve welding applications. The model includes a reserved installation interface for welding chucks to clamp tubular workpieces.

200kg Tilting Welding Positioner for Pipe & Small Cylinder Welding200kg Tilting Welding Positioner for Pipe & Small Cylinder Welding

Technical Parameters
Item Parameter
Rated Load 200kg (central load)
Tilting Range 0° - 90°
Rotation Mode VFD Stepless Speed Regulation

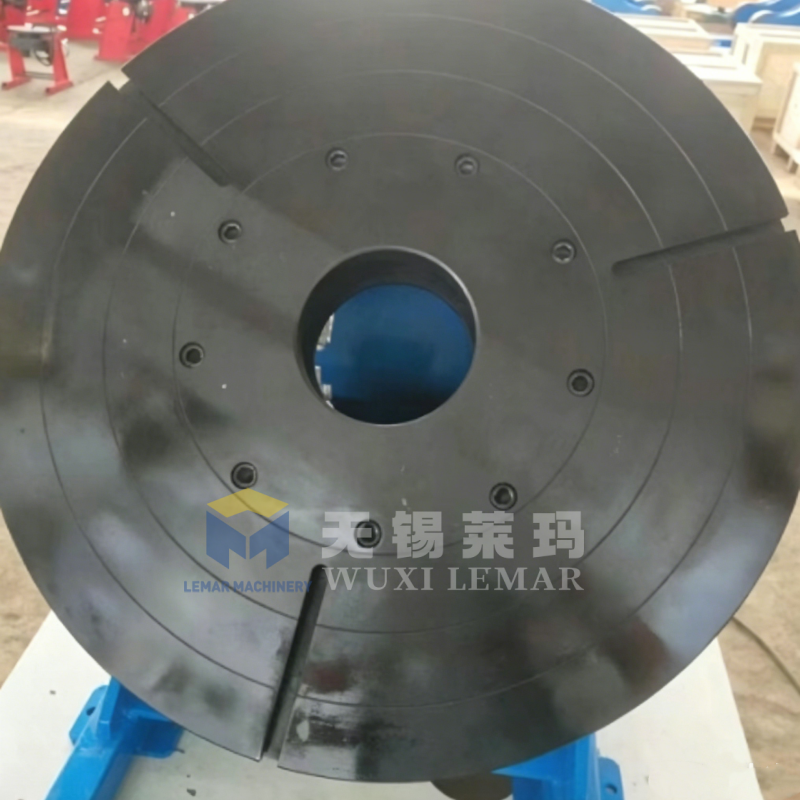

Worktable Diameter 400mm
Control Mode Pendant Remote Control
Standard Voltage 380V / 50Hz
Optional Voltage 220V / 415V / 60Hz Customized
Optional Accessories 3-jaw Chuck, Transition Flange, Foot Switch
Features & Advantages
  • Compact and lightweight design with small floor space, easy moving and placement, suitable for small workshops
  • VFD driving system ensures uniform and stable rotation without shaking to guarantee smooth weld seams
  • 0°-90° adjustable tilting angle meets horizontal, vertical, and multi-angle welding demands

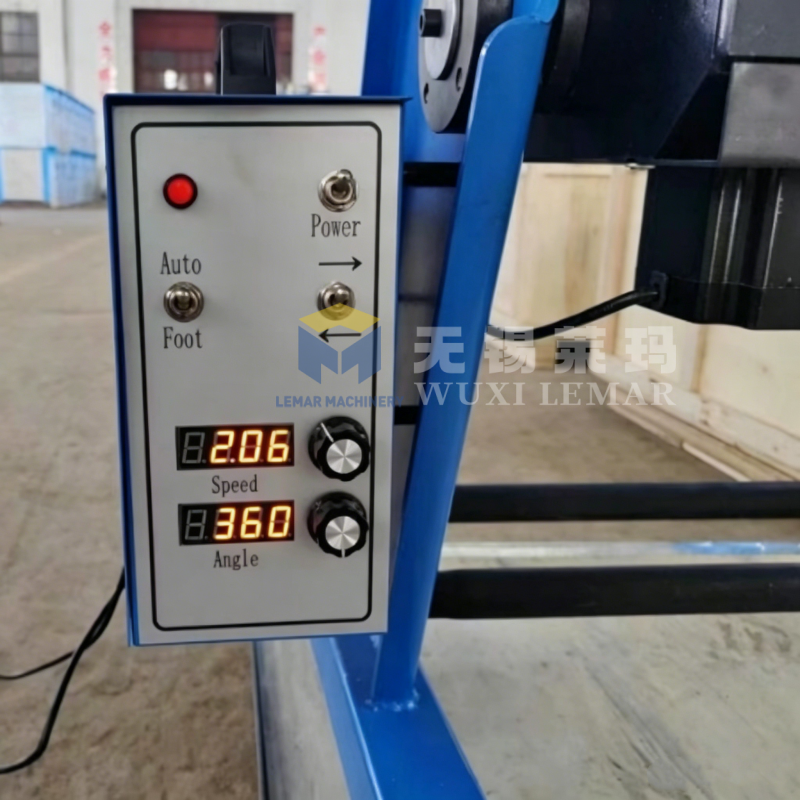

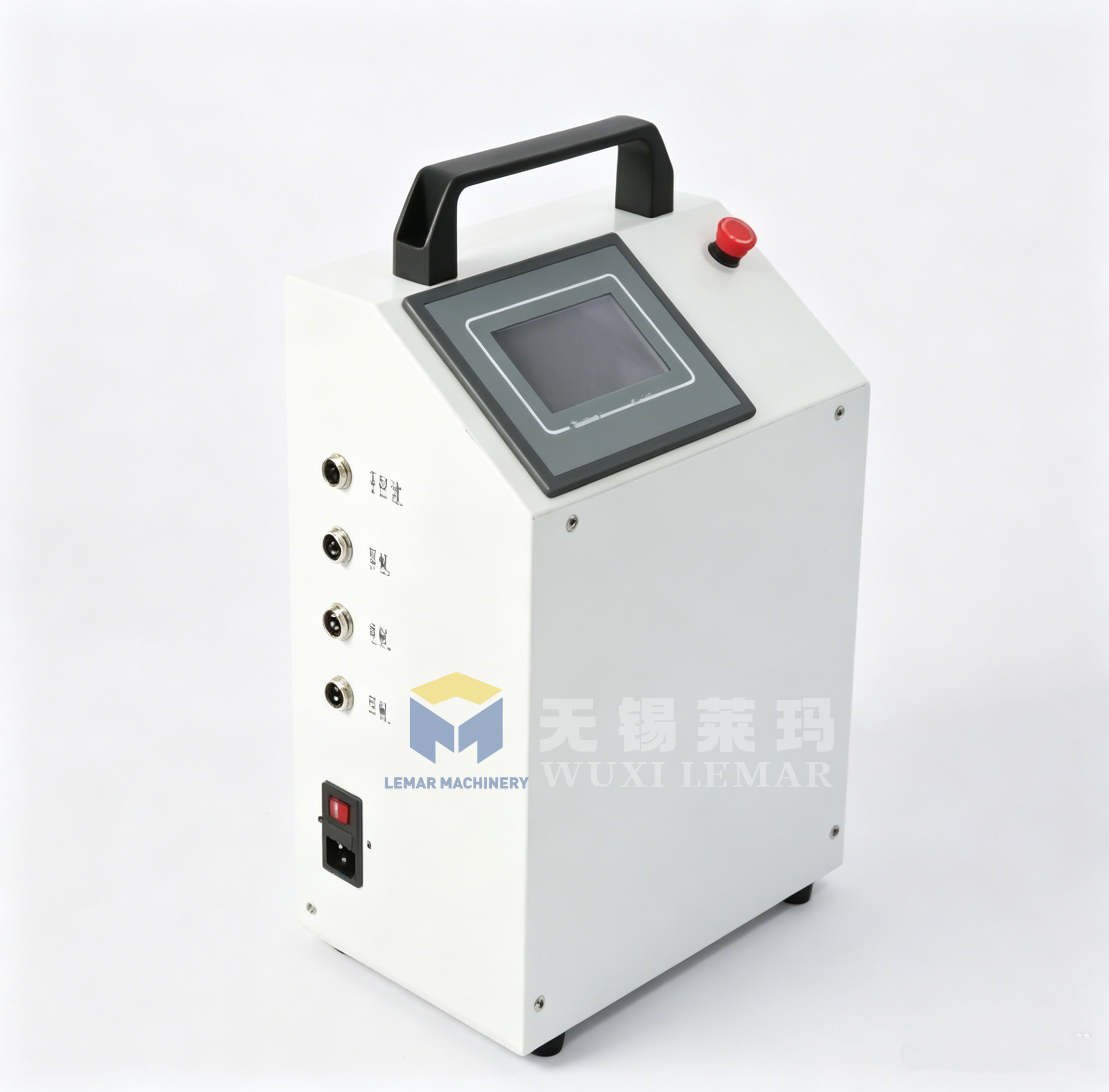

  • External pendant control box for easy operation and convenient real-time parameter adjustment
  • Reserved mounting flange compatible with various specifications of welding chucks for tubular workpieces
  • Simple mechanical construction with stable performance, easy maintenance, and long service life

200kg Tilting Welding Positioner for Pipe & Small Cylinder Welding200kg Tilting Welding Positioner for Pipe & Small Cylinder Welding

Application Scope

Suitable for welding processing of small stainless steel cylinders, pipe flanges, pipe fittings, valve bodies, hardware parts, small pressure vessel accessories and auto spare parts. Ideal auxiliary machine for small welding factories, maintenance workshops and neural manufacturing workshops.

Optional Accessories

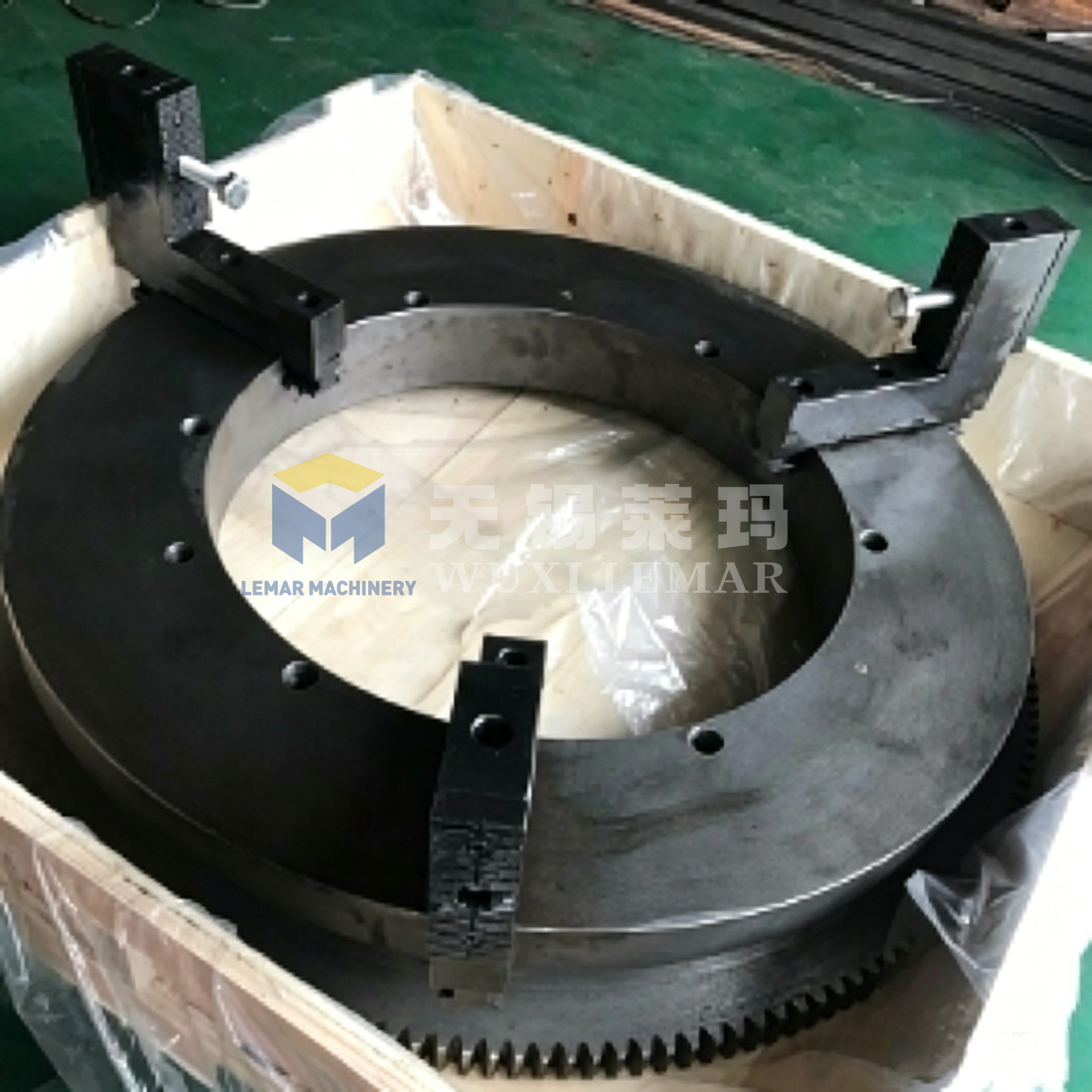

  • 3-jaw self-centering welding chuck (multiple sizes available)
  • Custom transition connecting flange
  • Foot pedal switch
  • Neural control module
  • Wireless remote controller
  • Anti-splash protective cover

200kg Tilting Welding Positioner for Pipe & Small Cylinder Welding200kg Tilting Welding Positioner for Pipe & Small Cylinder Welding

Packaging & Delivery

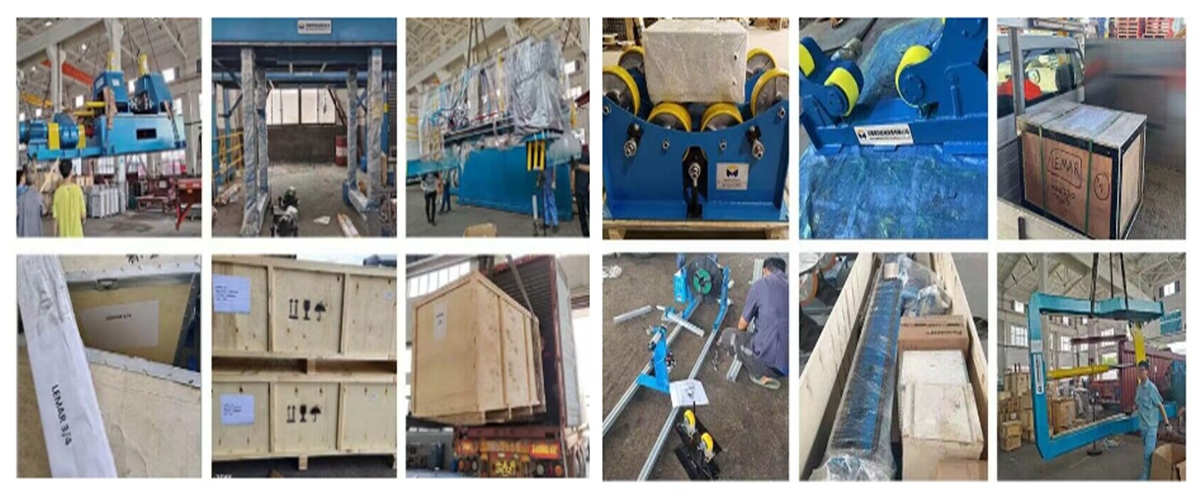

Packed with export plywood case featuring firm fixation and shockproof treatment to avoid damage during long-distance transportation. In stock for fast delivery. We support customized configurations and export technical documents for Russia, Southeast Asia, Middle East, and other markets.

200kg Tilting Welding Positioner for Pipe & Small Cylinder Welding

Frequently Asked Questions
Q1: Can this 200kg positioner be fitted with chuck?
A1: Yes. Standard flange interface is reserved. We can supply matching 3-jaw welding chucks with different diameters based on your workpieces.
Q2: Can voltage be customized?
A2: Standard voltage is 380V 50Hz. Custom voltage like 220V, 415V, 60Hz is available.
Q3: Notice about load capacity?
A3: 200kg refers to central load. If workpieces are eccentric or installed with chucks, reduce actual bearing weight properly.
Q4: Is rotation speed adjustable?
A4: Adopt VFD stepless speed regulation, rotation speed can be freely adjusted according to welding requirements.
